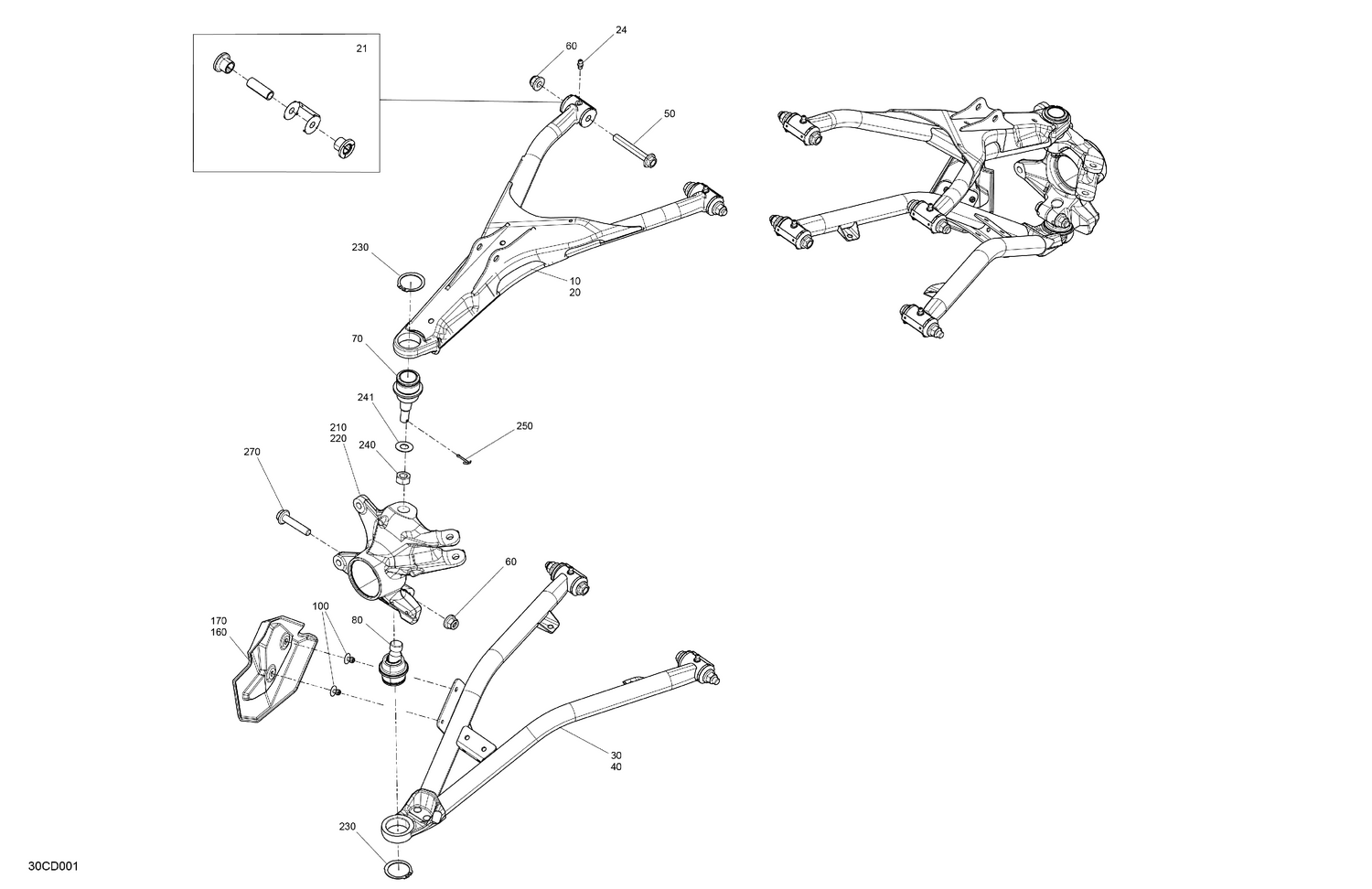

05- Suspension - Front Components
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715010603 | LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204077. |
| 20 | 715010604 | RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204078. |
| 21 | 703500875 | Suspension Arm Bushing Kit |
| 24 | 408200700 | Grease Fitting |
| 30 | 715010599 | LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706203995. |
| 40 | 715010600 | RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706203996. |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202135 | RH CV joint Guard |
| 170 | 706202134 | LH CV joint Guard |
| 210 | 706205517 | LH Knuckle |
| 220 | 706205047 | RH Knuckle This part replaces 706205518. |
| 230 | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
