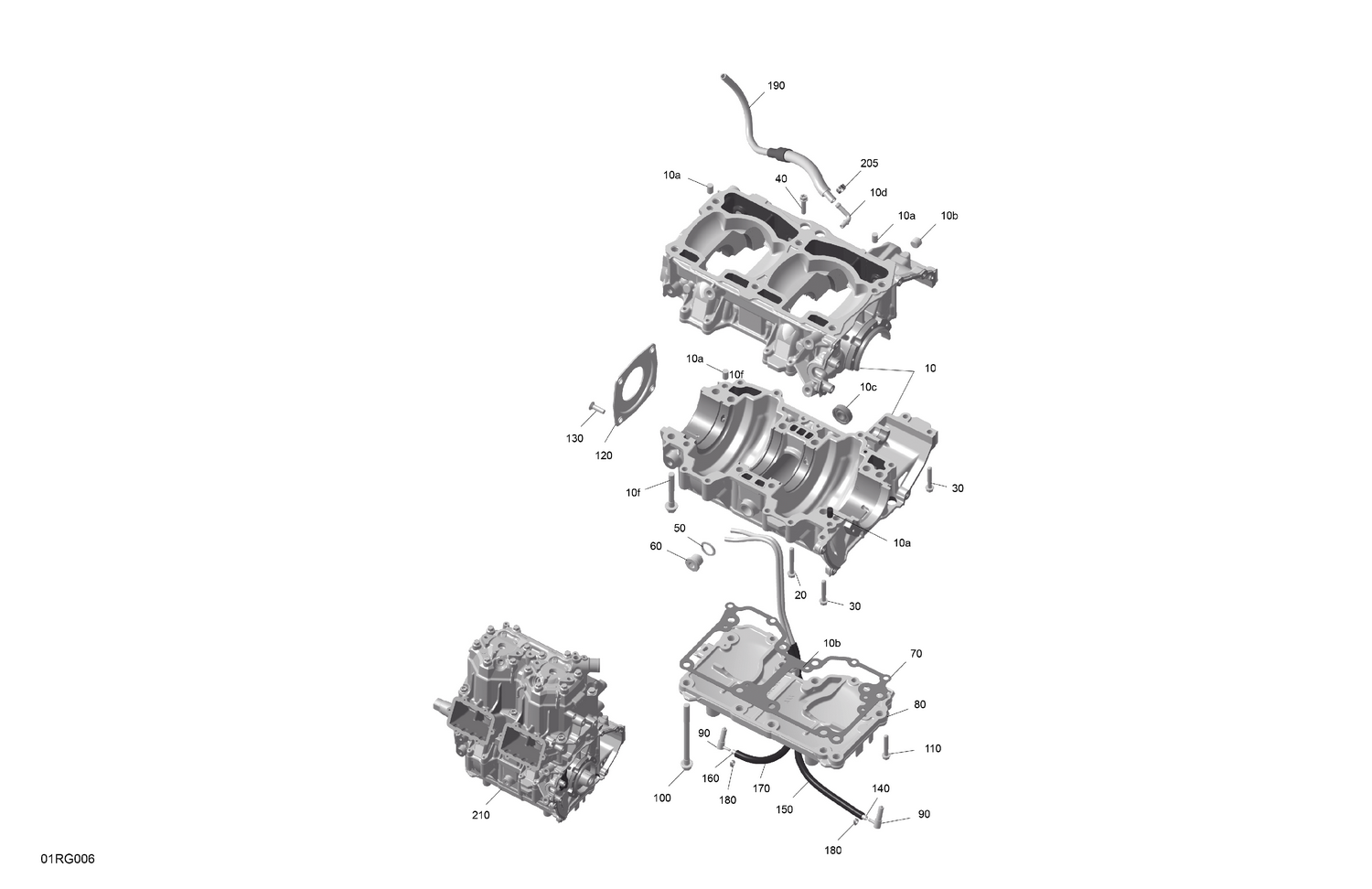

01- ROTAX - Crankcase
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 420632014 | Center Pin 8 x 12 |
| 10b | 420840658 | Plug Screw M12x1,5 |
| 10c | 420232100 | Ball Bearing |
| 10d | 420924802 | Fittin 90D |
| 10f | 420941627 | Hex. Screw M8 X 56.5 |
| 20 | 420440324 | Flanged Torx Screw M6 X 45 |
| 30 | 420440274 | Flanged Torx Screw M6 X 35 |
| 40 | 420440234 | Flanged Torx Screw M6 X 25 |
| 50 | 420430622 | O-Ring |
| 60 | 420640457 | Plug Screw |
| 70 | 420430072 | Gasket Engine Support |
| 80 | 420812688 | Engine Support |
| 90 | 420956511 | Check Valve |
| 100 | 420941518 | Screw M8x105 |
| 110 | 420440274 | Flanged Torx Screw M6 X 35 |
| 120 | 420812422 | Oil Seal Cover |
| 130 | 420941436 | Screw M6 X 20 |
| 140 | 420201928 | Oil Line 505Mm |
| 150 | 420460015 | Corrugated Tube 305MM |
| 160 | 420201928 | Oil Line 505Mm |
| 170 | 420460016 | Corrugated Tube 225MM |
| 180 | 420851508 | Clamp |
| 190 | 420201592 | Oil Line / Protective Hose Ass'y |
| 205 | 420853653 | Clamp |
