| Ref | Part Number | Description |
|---|
| 5 |
0316988 |
SCREW, Lockplate cyl. to c'case |
| 8 |
0133022 |
SCREW |
| 9 |
0120255 |
LOCKWASHER |
| 11 |
0307267 |
SCREW |
| 12 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 13 |
0310058 |
GASKET, Thermostat |
| 14 |
0316132 |
GORMMET, Valve |
| 15 |
0335493 |
VALVE, Pressure relief This part replaces 0317653. |
| 16 |
0315626 |
SPRING, Valve |
| 17 |
0315538 |
GASKET, Cover to head |
| 18 |
0315541 |
COVER, Cylinder head |
| 19 |
0300646 |
VIS, ancrage |
| 20 |
0384771 |
SPARK PLUG, Ch ul-77v |
| 21 |
0376349 |
FIL, masse |
| 22 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 24 |
0308753 |
SCREW, Fram to c'case |
| 25 |
0315868 |
GASKET, Inner cover |
| 26 |
0315870 |
EXHAUST COVER, Inner |
| 27 |
0315869 |
GASKET, Outer cover |
| 28 |
0319459 |
EXHAUST COVER, Outer |
| 29 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 30 |
0317714 |
FRAME, Crank case |
| 31 |
0318194 |
BUSHING |
| 33 |
0204445 |
BOW WASHER |
| 34 |
0317670 |
LIFT RING |
| 35 |
0314515 |
SCREW |
| 37 |
0306407 |
LOCCKWASHER,Cover latch |
| 38 |
0302474 |
WAHSER,Link |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0314098 |
WASHER, Throttle lever |
| 41 |
0318825 |
LEVER, Spark advance |
| 42 |
0314003 |
BSHING, Spark lever |
| 43 |
0314094 |
LINK, Throttle lever to cam |
| 44 |
0318232 |
LEVER, Throttle control |
| 45 |
0314002 |
BUSHING |
| 46 |
0330179 |
WASHER This part replaces 0303304. |
| 48 |
0329702 |
THROTTLE CAM This part replaces 0319835. |
| 49 |
SEAL, |
Cylinder to c'case |
| 51 |
0306337 |
SCREW, Adjustment |
| 55 |
0302474 |
WAHSER,Link |
| 58 |
0316101 |
SCREW, Advance |
| 59 |
0320536 |
STOP, Idle adjsutment This part replaces 0316034. |
| 60 |
0311415 |
SCREW, Cable clamp |
| 62 |
0330179 |
WASHER This part replaces 0303304. |
| 65 |
0315104 |
RETAINER, #3 ing. lead |
| 66 |
0316038 |
ROD, Spark advance |
| 67 |
0316654 |
WIRE REATINER,Lever |
| 68 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 70 |
0314416 |
BUMBER, Advance screw |
| 72 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 73 |
0329889 |
LINK Throttle lever to cam This part replaces 0314133. |
| 74 |
0388676 |
PIN, Shaft lever to shift rod This part replaces 0318583. |
| 75 |
0312708 |
BUSHING |
| 78 |
0386686 |
SWITCH TEMP |
| 81 |
0385820 |
SHIFT LEVER ASSY., C'case |
| 82 |
0384088 |
THERMO SWITCH ASSEMBLY |
| 84 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 85 |
0326644 |
LEVER, Shift rod This part replaces 0318556. |
| 86 |
0318567 |
TOKE, Link to bellcrank |
| 87 |
0318299 |
LINK, Bellcrank to shift link |
| 88 |
0312977 |
BOW WASHER, Link to lever |
| 89 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 90 |
0204757 |
BOW WASHER |
| 91 |
0306012 |
BOW WASHER |
| 92 |
0316993 |
CLAMP, Batter cable |
| 93 |
0315539 |
GASKET, Cylinder head |
| 94 |
0315540 |
CYLINDER HEAD |
| 95 |
0385754 |
BELLCRANK ASSY., Shift |
| 96 |
0908060 |
BOW WASHER, Shoulder screw This part replaces 0318202. |
| 97 |
0318193 |
BUSHING |
| 0386390 |
0386894 |

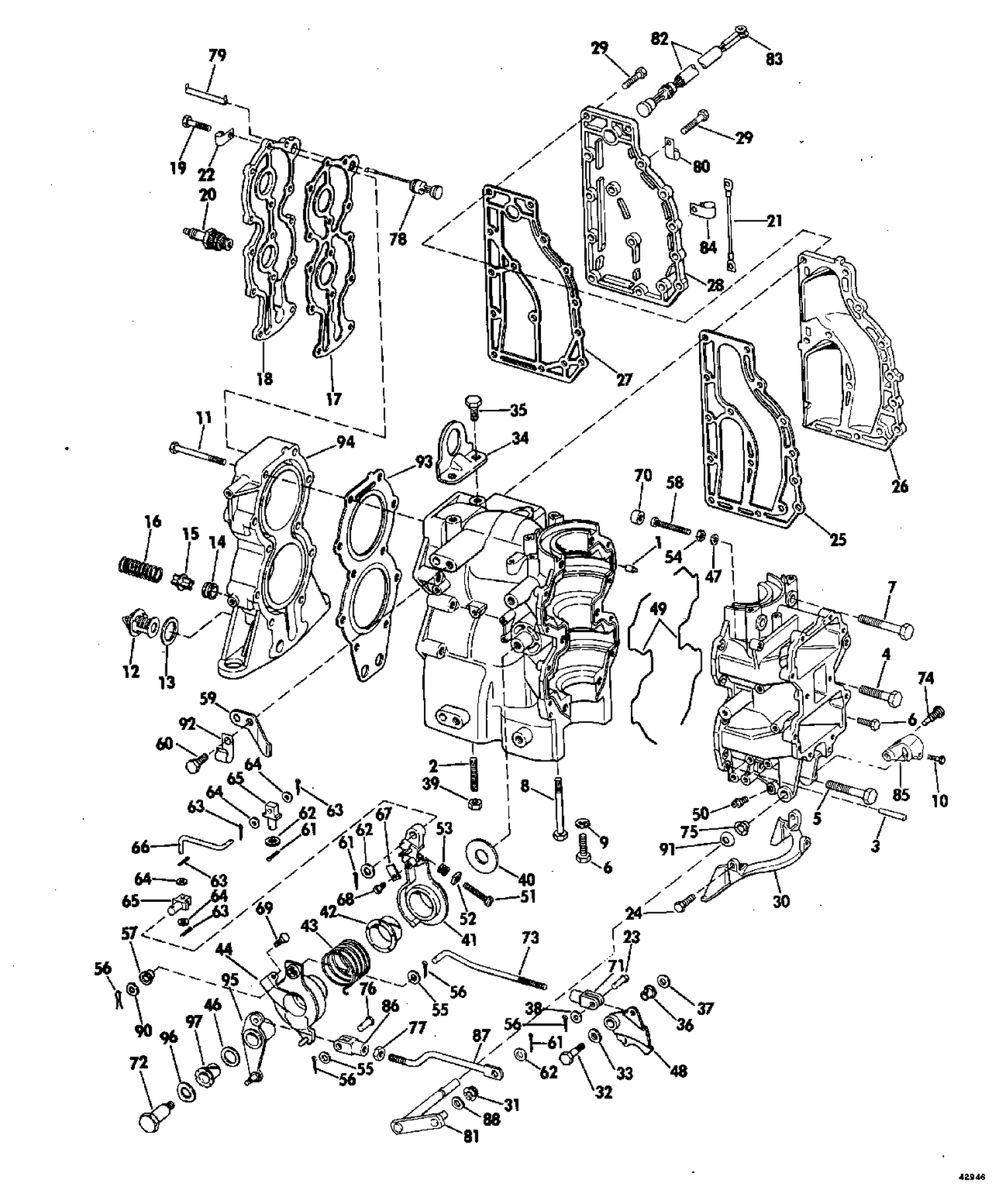

CYLINDER & C' CASE ASSY. This part replaces 0386390. |
