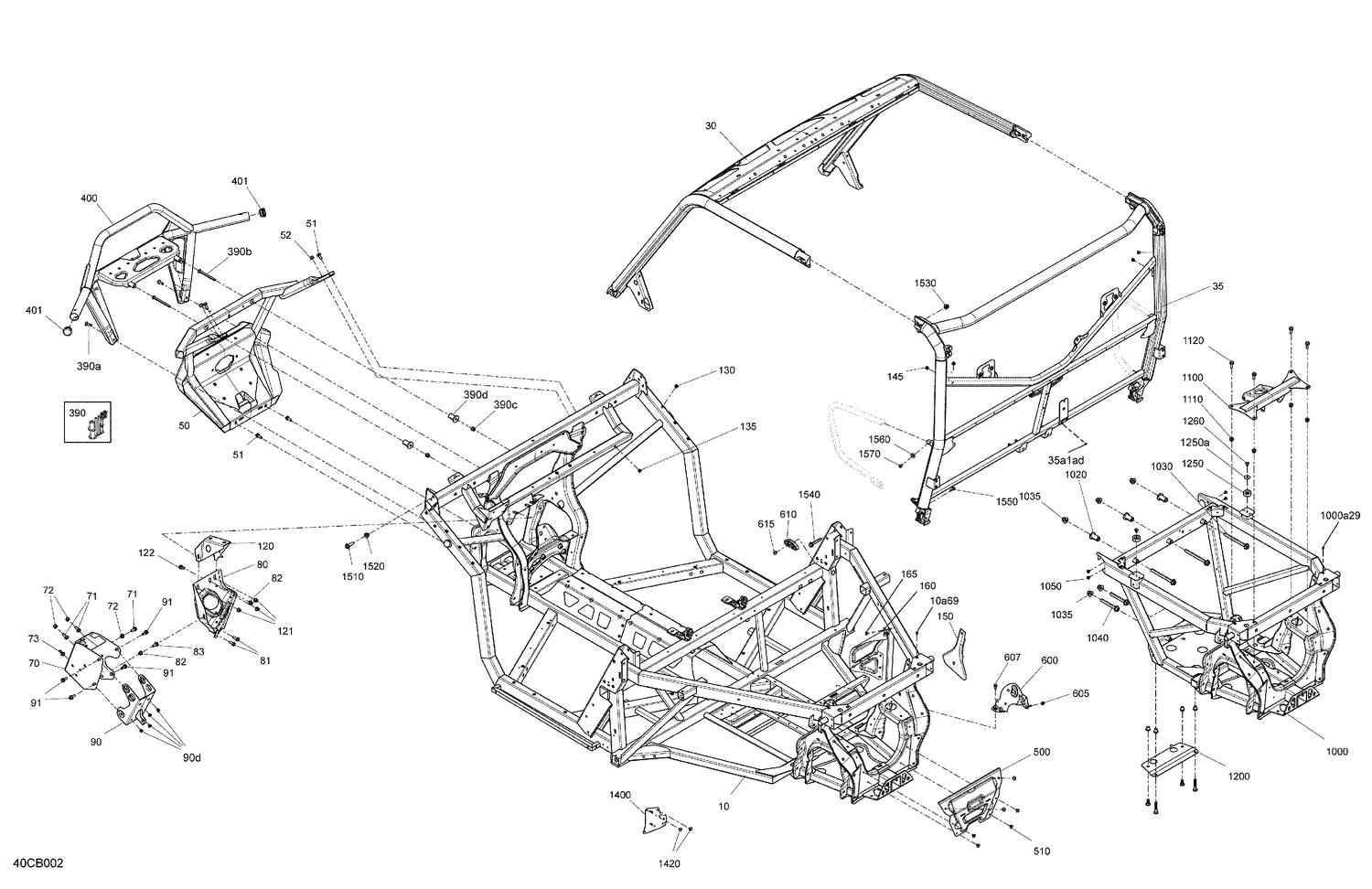

06- Frame - System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 10a69 | 390402200 | Pop Rivet 3/16" |
| 30 | 715008347 | Front Cage Service Kit |
| 35a1ad | 390402200 | Pop Rivet 3/16" |
| 50 | 705207588 | Deep Black, Front Bumper |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281416 | Hex. Elastic Flange Nut M8 |
| 70 | 705209388 | Module Support |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281416 | Hex. Elastic Flange Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 | 705208741 | Power Steering Support |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281416 | Hex. Elastic Flange Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90d | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 | 705208742 | Support |
| 121 | 233281416 | Hex. Elastic Flange Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 145 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 705014849 | Heat Shield |
| 160 | 707002709 | Heat Shield |
| 165 | 293150103 | Pop Rivet 3/16" |
| 390a | 250000886 | Torx Screw M8 X 30 |
| 390b | 250001106 | Torx Truss M/S M8 x X 100 |
| 390c | 233281414 | Hex. Flange Elastic Nut M8 |
| 390d | 705207754 | Spacer |
| 400 | 715005754 | Deep Black, Front Bumper |
| 401 | 705202455 | Cap |
| 500 | 705207753 | Rear Chassis Reinforcement |
| 510 | 293150104 | Pop Rivet 3/16" |
| 600 | 710009501 | Voltage Regulator Support This part replaces 710007523. |
| 605 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 607 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 | 705208203 | Spacer |
| 615 | 293150104 | Pop Rivet 3/16" |
| 1000a29 | 390402200 | Pop Rivet 3/16" |
| 1020 | 705207755 | Spacer |
| 1030 | 250000892 | Screw Flange M12 X 135 |
| 1035 | 250001195 | Elastic Flange Nut M12 |
| 1040 | 250000876 | Hex. Flange Screw M12 X 95 |
| 1050 | 293150174 | Hemlock Rivet, 6.4 mm |
| 1100 | 705208227 | Upper Rear Differential Support |
| 1110 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1120 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1200 | 705208867 | Rear Skid Plate |
| 1250a | 224060251 | Washer |
| 1260 | 293150104 | Pop Rivet 3/16" |
| 1400 | 705015933 | Rear Solenoid Support |
| 1420 | 293150103 | Pop Rivet 3/16" |
| 1510 | 250000855 | Hex. Flange Screw M10 X 35 |
| 1520 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1530 | 233201466 | Flange Elastic Nut M10 |
| 1540 | 207606046 | Hex. Flange Screw M10 X 6 |
| 1550 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1560 | 705202223 | Offset Washer |
