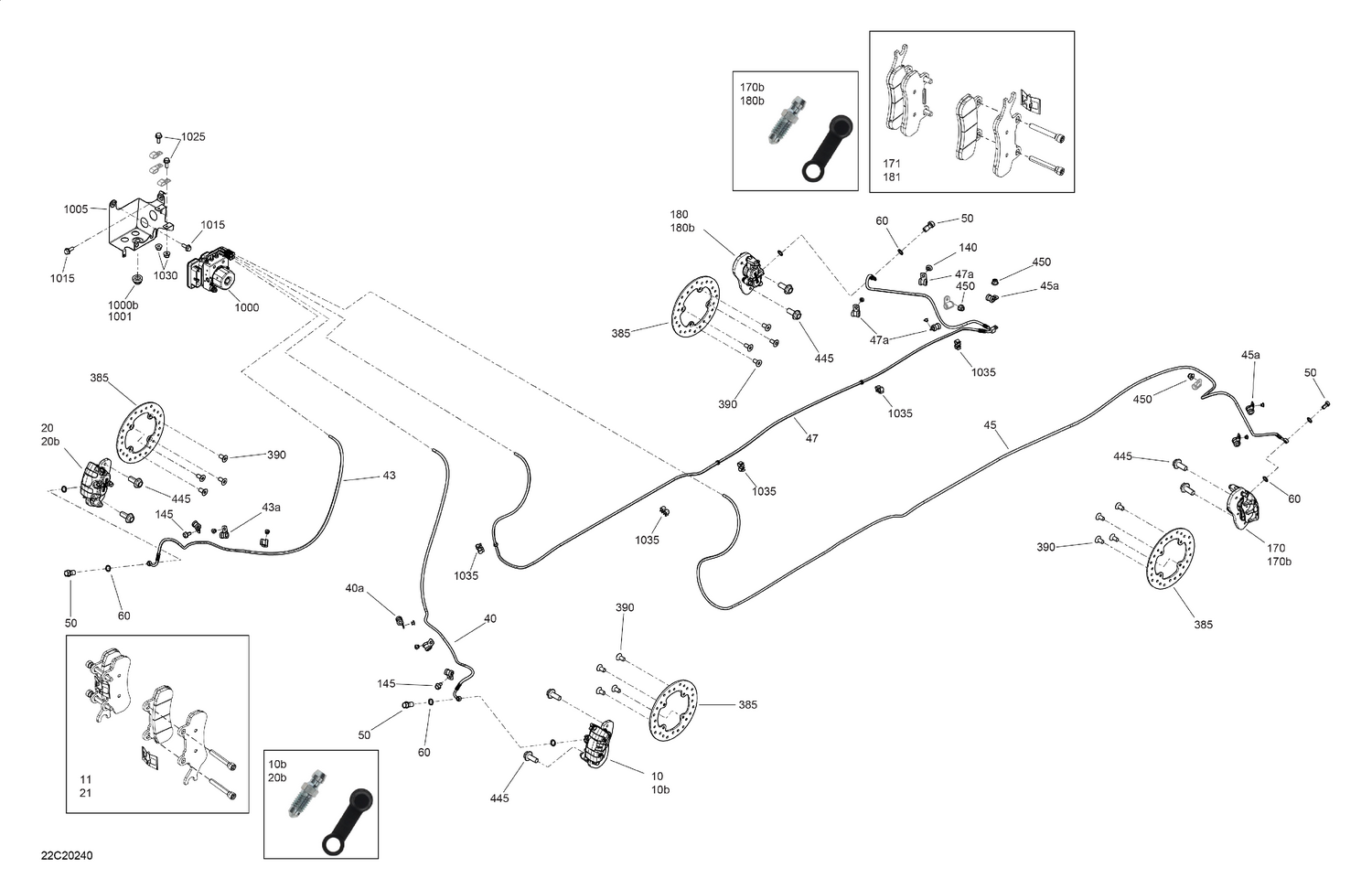

06- Brakes - Brake Line
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20b | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 40a | 293650256 | Clamp |
| 43a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 47a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 210261040 | Hex. Flange Screw M6 X 10 |
| 170b | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180b | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
| 450 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1000b | 710003279 | Shock Damper |
| 1001 | 710003279 | Shock Damper |
| 1005 | 705601642 | Module Support |
| 1015 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1025 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1030 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
