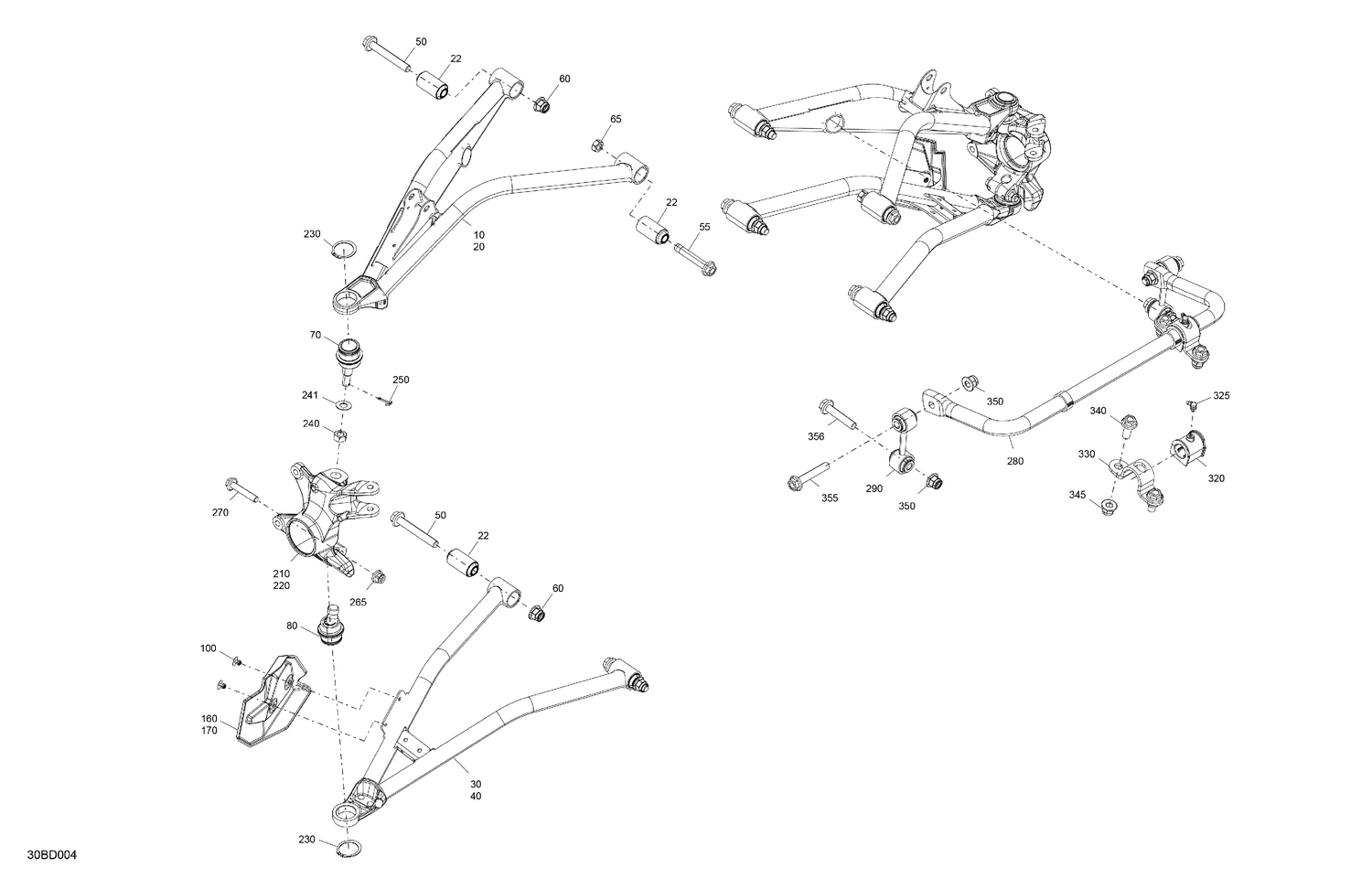

05- Suspension - Front Components
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715010752 | Legion Red, LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706205728. |
| 20 | 715010761 | Legion Red, RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706205729. |
| 22 | 706004828 | Suspension Arm Bushing |
| 30 | 715010769 | Legion Red, LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706205732. |
| 40 | 715010776 | Legion Red, RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706205733. |
| 50 | 250001168 | Hex. Flange Screw M12X1.75X85 |
| 55 | 250001168 | Hex. Flange Screw M12X1.75X85 |
| 60 | 250001195 | Elastic Flange Nut M12 |
| 65 | 250001195 | Elastic Flange Nut M12 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202135 | RH CV joint Guard |
| 170 | 706202134 | LH CV joint Guard |
| 210 | 706202842 | LH Front Knuckle |
| 220 | 706202844 | RH Front Knuckle |
| 230 | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 265 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 207605546 | Hex. Flange Screw M10 X 55 |
| 280 | 706203649 | Sway Bar Ass'y |
| 290 | 706202937 | Sway Bar Double Link |
| 320 | 706204414 | Stabilizer Bar Bushing |
| 325 | 293550056 | Grease Fitting 90° |
| 330 | 706203437 | Clamp |
| 340 | 250000951 | Hex. Flange Screw DIN.6921 |
| 345 | 250001195 | Elastic Flange Nut M12 |
| 350 | 250001195 | Elastic Flange Nut M12 |
| 355 | 250000858 | Hex. Flange Screw M12 X 70 |
