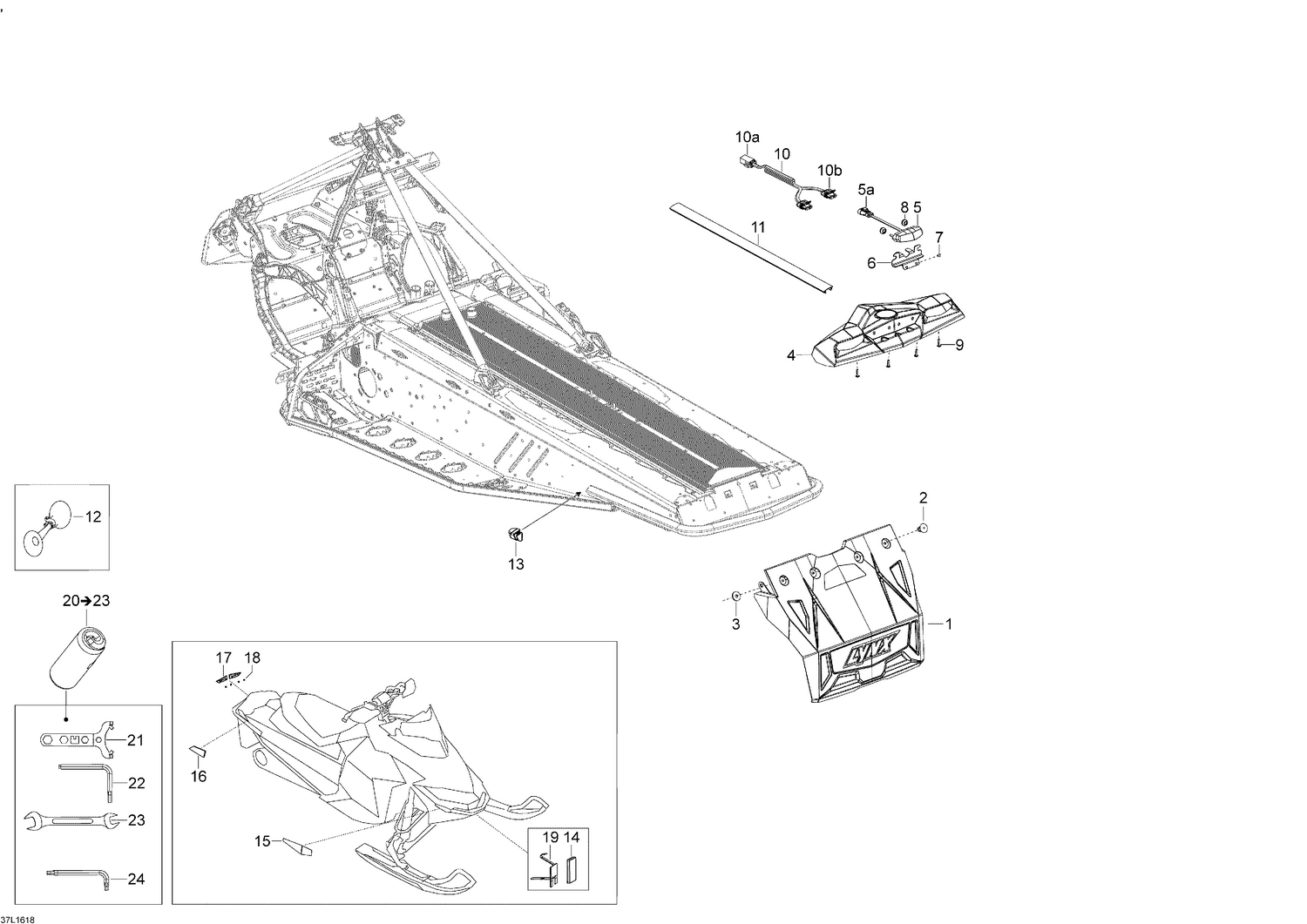

09- Utilities
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001187 | Snow Guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 5a | 278001013 | Wire Seal |
| 5a | 409012900 | Male Terminal |
| 5a | 409013700 | Plug |
| 5a | 710000568 | Male terminal housing |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 293720101 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 |
| 10 | 515178115 | Rear Light Harness |
| 10a | Not | Available As Spare Part - Male Housing, 3 Circuits |
| 10b | 278001014 | Female Terminal |
| 10b | 409209600 | Female Housing, 3 Circuits |
| 11 | 520001157 | Trim |
| 12 | 549011291 | Horn |
| 13 | 520001373 | RH Cap |
| 13 | 520001374 | LH Cap |
| 14 | 21118 | Bright Reflector |
| 15 | 520001351 | Yellow RH Reflector |
| 15 | 520001352 | Yellow LH Reflector |
| 16 | 705007154 | Yellow RH Reflector |
| 16 | 705007155 | Yellow LH Reflector |
| 17 | 705007156 | Red RH Reflector |
| 17 | 705007157 | Red LH Reflector |
| 18 | 732610072 | Push Nut |
| 19 | 520001452 | Reflector Mount |
| 21 | 520001442 | Wrench |
| 22 | 520001142 | Key |
| 23 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
