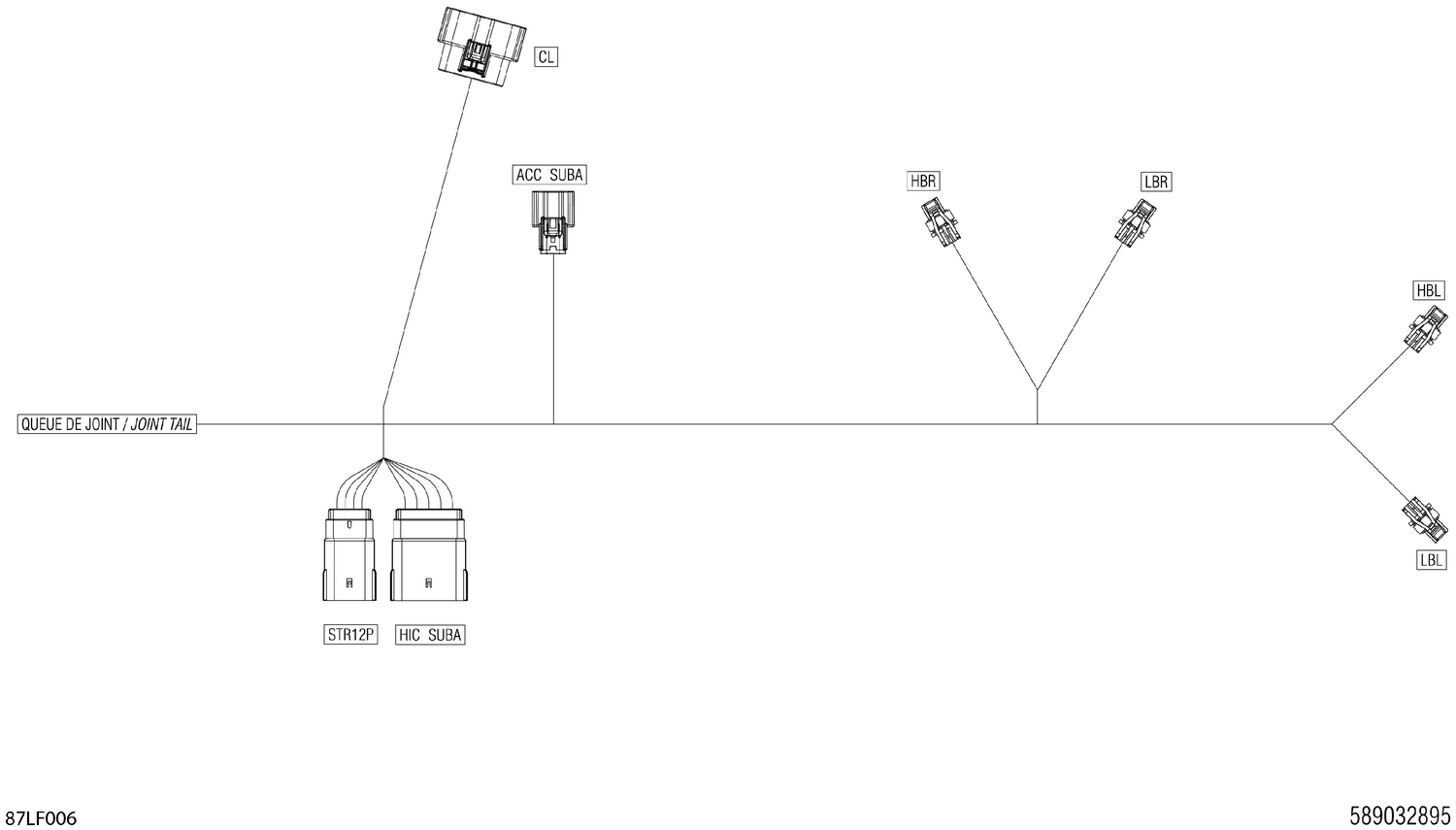

08- Electric - Hood Wiring Harness - 515179730
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178014 | Female Terminal |
| CL | 515178018 | Female Terminal |
| HBL | 710001152 | Lock |
| HBL | 710001163 | Wire Seal |
| HBL | 710001164 | Female Terminal |
| HBL | 710007660 | Housing |
| HBR | 710001152 | Lock |
| HBR | 710001163 | Wire Seal |
| HBR | 710001164 | Female Terminal |
| HBR | 710007660 | Housing |
| LBL | 515177192 | Female Housing, 2 Circuits |
| LBL | 710001152 | Lock |
| LBL | 710001163 | Wire Seal |
| LBL | 710001164 | Female Terminal |
| LBR | 515177192 | Female Housing, 2 Circuits |
| LBR | 710001152 | Lock |
| LBR | 710001163 | Wire Seal |
| LBR | 710001164 | Female Terminal |
| STR12P | 515178223 | Clip Connector |
| STR12P | 515178578 | Block 12 |
| 3800 | 515179730 | Hood Wiring Harness |
