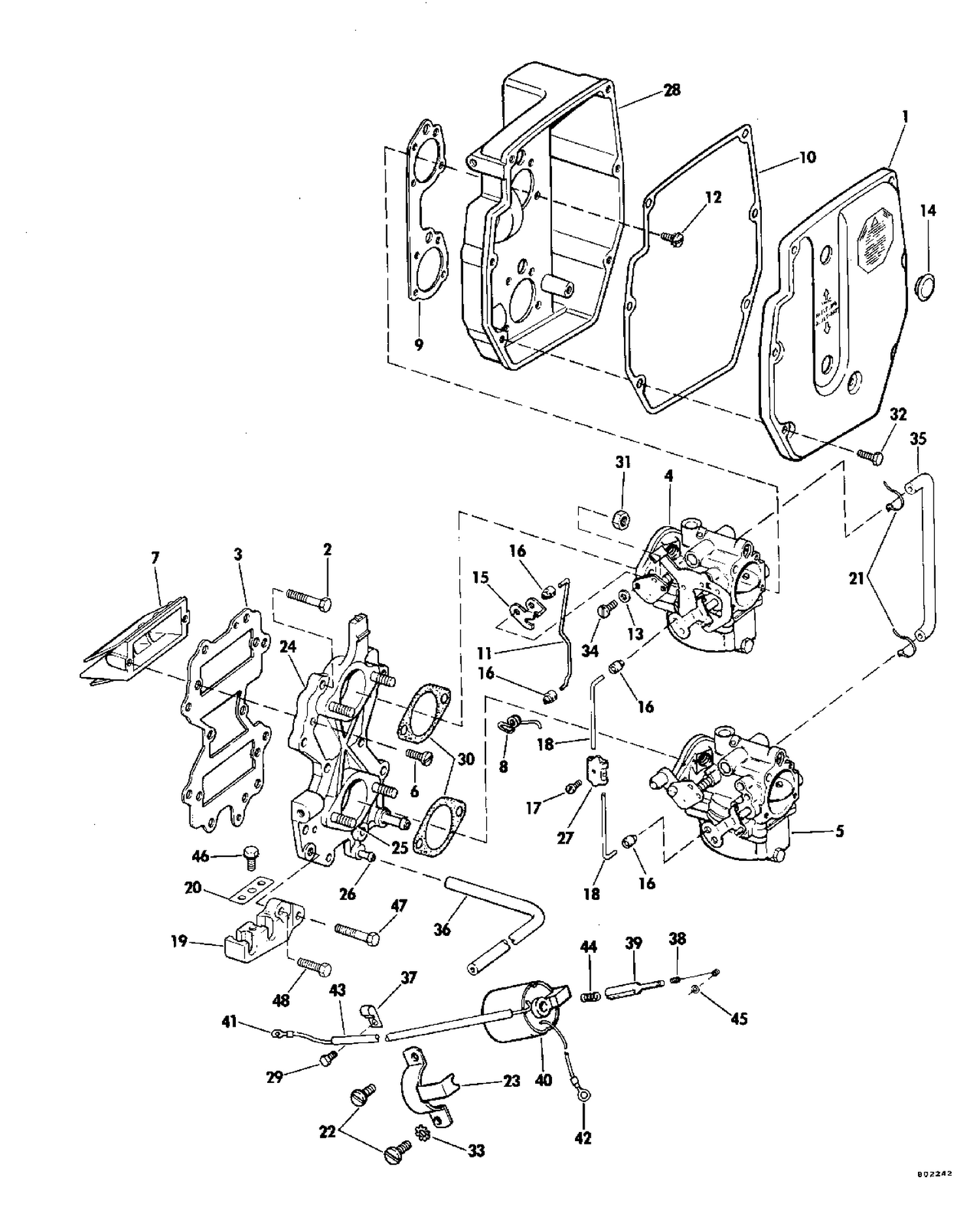

| Ref | Part Number | Description |
|---|
| 1 |
0388140 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
CARBURETOR |
ASSY.,Upper |
| 5 |
CARBURETOR |
ASSY.,Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE |
| 8 |
0314807 |
SPRING |
| 9 |
0321497 |
GASKET, Air silencer |
| 10 |
0320679 |
GASKET, Base to cover |
| 11 |
0329888 |
LINK This part replaces 0321070. |
| 12 |
0327794 |
SCREW, Base to carburetor This part replaces 0323044. |
| 15 |
0321071 |
LEVER, Throttle adjustment |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 17 |
0303686 |
SCREW, Fastener |
| 18 |
0316073 |
LINK, Carburetor choke |
| 21 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 22 |
0310539 |
SCREW, Clamp choke solenoid |
| 23 |
0316036 |
CLAMP CHOKE SOLENOID |
| 24 |
0391780 |
MANIFOLD ASSY This part replaces 0386687. |
| 27 |
0318974 |
FASTENER, Cable clamp |
| 28 |
0322088 |
BASE |
| 29 |
0313117 |
SCR,Clamp,eng cable |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 37 |
0310441 |
CLAMP, CPS lead |
| 38 |
0316075 |
SPRING, Choke colenoid |
| 39 |
0324094 |
PLUNGER, Choke solenoid |
| 40 |
0581929 |
SOLENOID |
| 44 |
0324397 |
SPRING, Plunger to solenoid |
| 45 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 47 |
0306418 |
VIS, ancrage |
