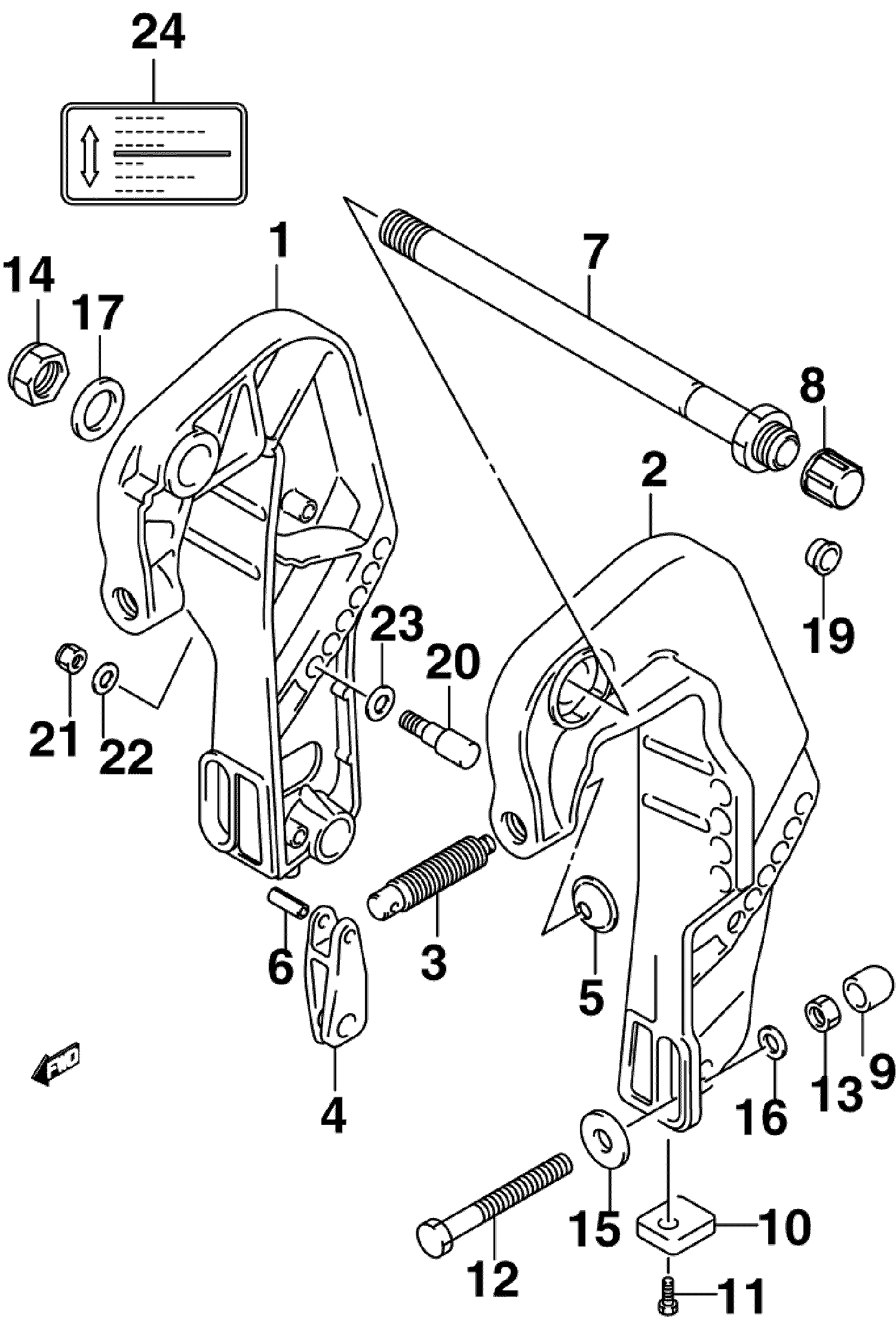

STERN BRACKET
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036484 | BRACKET, CLAMP STBD |
| 2 | 5035972 | BRACKET, CLAMP PORT |
| 3 | 5032052 | SCREW, Clamp |
| 4 | 5034690 | HANDLE, CLAMP (WHITE) |
| 7 | 5036055 | SHAFT, CLAMP BRACKET |
| 8 | 5031489 | CAP, CLAMP BRACKET |
| 9 | 5030839 | CAP, TRANSOM BOLT |
| 10 | 5035786 | ZINC SET, PROTECTION |
| 12 | 5036685 | BOLT (12X100) |
| 13 | 5031221 | NUT |
| 15 | 5030436 | WASHER |
| 16 | 5036480 | WASHER |
| 17 | 5035119 | WASHER |
| 19 | 5031490 | PLUG, CLAMP BRACKET |
| 20 | 5032068 | PIN, Tilit lock |
| 21 | *5030054 | NUT |
| 22 | 5030057 | WASHER |
