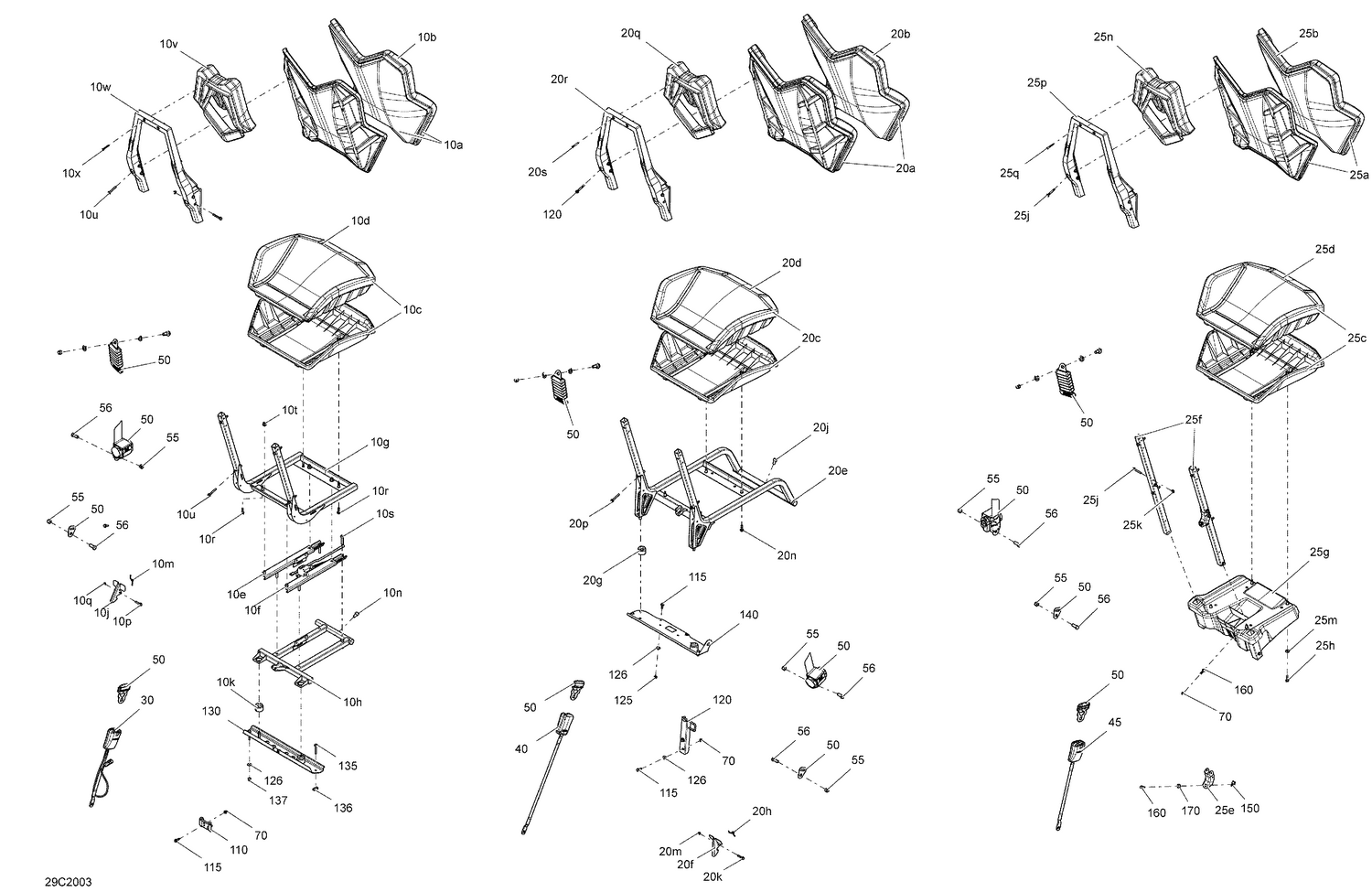

09- Seat
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 708000675 | Backrest Cover |
| 10d | 708001103 | Seat Cover |
| 10e | 708000848 | LH Rail |
| 10f | 708001739 | RH Rail |
| 10g | 708001356 | Operator Seat Frame |
| 10h | 708001174 | Seat Member |
| 10j | 708001355 | Seat Latch |
| 10k | 708001671 | Rubber Bumper |
| 10m | 708000921 | Spring |
| 10n | 205501644 | Socket Screw M10 X 16 |
| 10p | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 10q | 232561600 | Hex. Elastic Stop Nut M6 |
| 10r | 207562544 | Hex. Flange Screw M6 X 25 |
| 10s | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 10t | 233281414 | Hex. Flange Elastic Nut M8 |
| 10v | 708001074 | Head Rest |
| 10w | 708001245 | Seat Support |
| 10x | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 20b | 708000675 | Backrest Cover |
| 20d | 708001103 | Seat Cover |
| 20e | 708001357 | Passenger Seat Frame |
| 20f | 708001355 | Seat Latch |
| 20g | 708001671 | Rubber Bumper |
| 20h | 708000921 | Spring |
| 20j | 205501644 | Socket Screw M10 X 16 |
| 20k | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 20m | 232561600 | Hex. Elastic Stop Nut M6 |
| 20n | 207562544 | Hex. Flange Screw M6 X 25 |
| 20q | 708001074 | Head Rest |
| 20r | 708001245 | Seat Support |
| 20s | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 25b | 708000675 | Backrest Cover |
| 25d | 708001103 | Seat Cover |
| 25e | 708001474 | Rear Anchor |
| 25f | 708001476 | Side Tube |
| 25g | 708001198 | Seat Support |
| 25h | 207562544 | Hex. Flange Screw M6 X 25 |
| 25j | 250000672 | Hex. Flange Screw M6 |
| 25k | 233161464 | Hex. Elastic Flange Nut M6 |
| 25n | 708001074 | Head Rest |
| 25p | 708001245 | Seat Support |
| 25q | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 30 | 708002061 | Driver Buckle Side |
| 40 | 708002064 | Passenger Buckle Side |
| 45 | 708002063 | Rear Passenger Buckle Side |
| 50 | 708002644 | Safety Belt |
| 55 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 56 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 70 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 110 | 708001212 | Anchor |
| 115 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 120 | 708001213 | Anchor |
| 125 | 233061414 | Hex. Flange Nut M6 |
| 126 | 234062670 | Stainless Steel Flat Washer |
| 130 | 708001214 | Seat Support |
| 135 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
| 136 | 250100171 | Panel Nut M6 X 1.0 |
| 137 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 140 | 708001804 | Support |
| 150 | 250100171 | Panel Nut M6 X 1.0 |
| 160 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 170 | 234281474 | Conical Spring Washer M8 |
