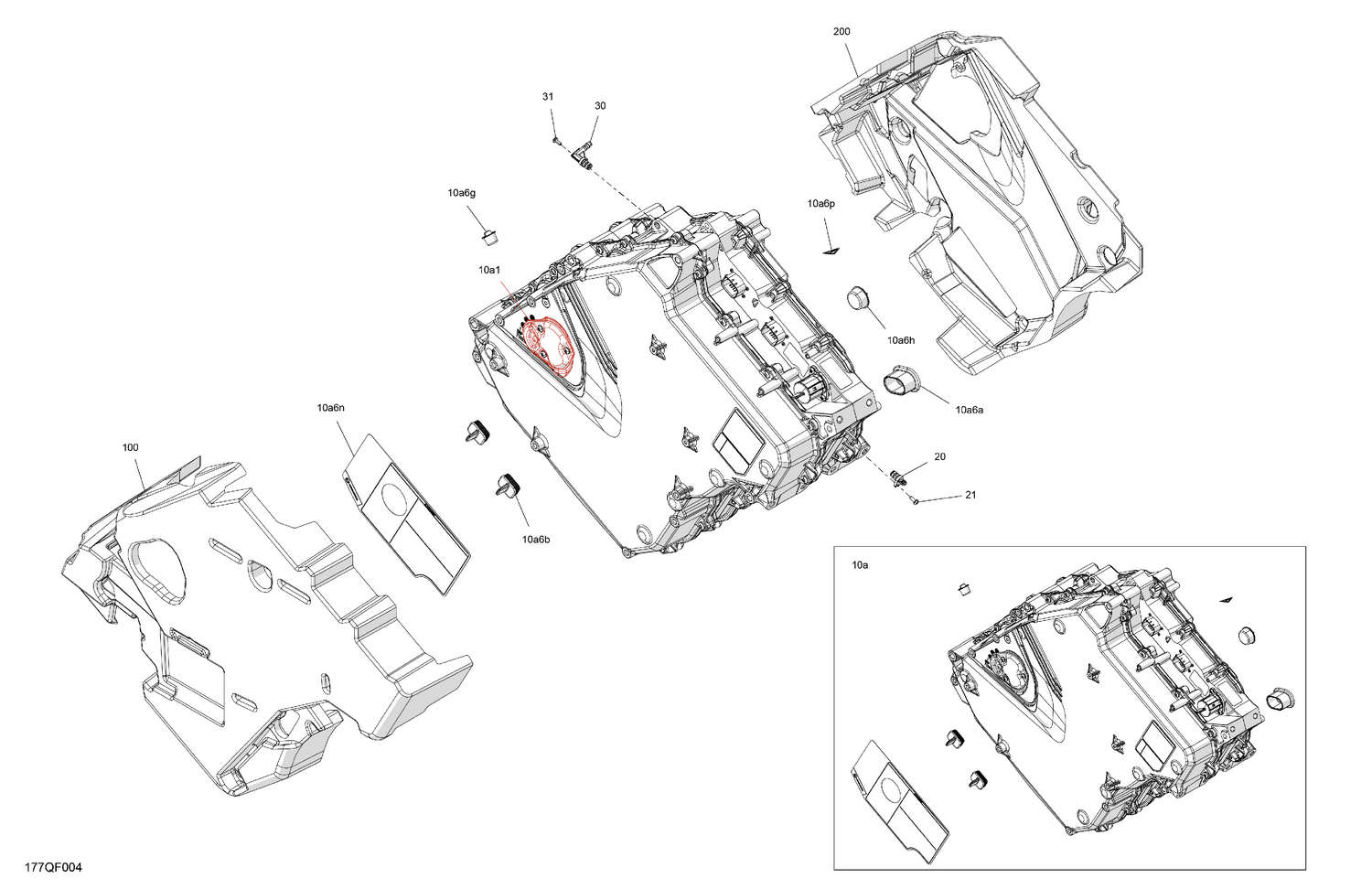

08- Electric - Energy Storage
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 219800632 | Protection Plate Ass'y |
| 10a6a | 712500021 | Connector Plug |
| 10a6b | 712500022 | Connector Plug |
| 10a6g | 712500026 | Cooling Cap |
| 10a6h | 712500027 | Cooling Cap |
| 10a6n | 712500077 | Danger Label |
| 10a6p | 516012096 | High Voltage Pictogram Label |
| 20 | 293710201 | Plug Ass'y |
| 21 | 250001298 | Torx Head Screw M4 X 10 |
| 30 | 293710199 | Coolant Manifold Ass'y |
| 31 | 250001298 | Torx Head Screw M4 X 10 |
| 100 | 508001348 | LH Protective Foam |
