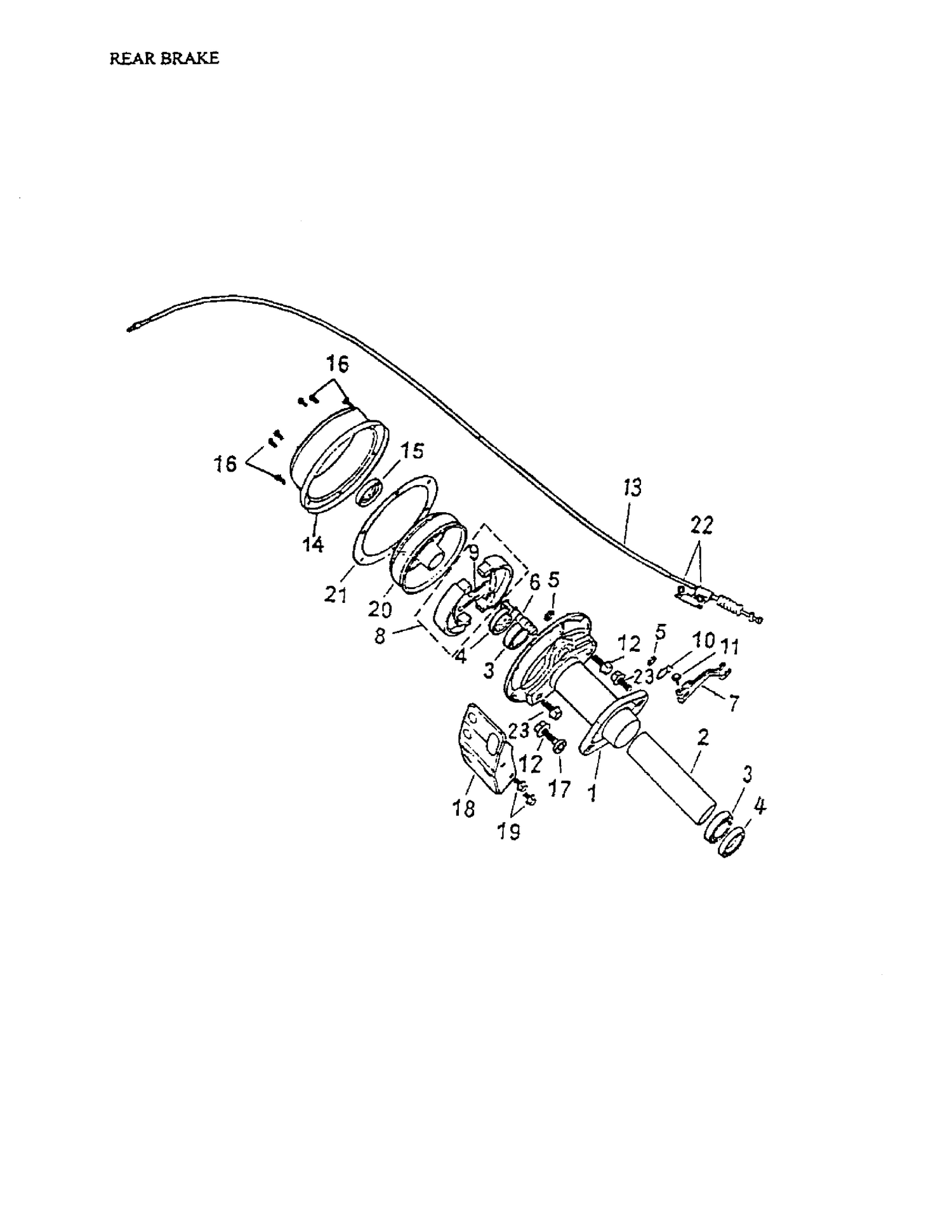

06- Rear Brake 166a-20
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A43101145001 | Rear Brake Panel |
| 2 | A42313145000 | Rear Brake Panel Spacer |
| 3 | V961006006ZZ | Radial Ball Bearing This part replaces A961006006ZZ. |
| 4 | A96500355511 | OIL SEAL - Call your local BRP dealership |
| 5 | A9650014204 | OIL SEAL - Call your local BRP dealership |
| 6 | A43141145000 | REAR BRAKE CAM SHAFT - Call your local BRP dealership |
| 7 | A43410145000 | REAR BRAKE ARM - Call your local BRP dealership |
| 8 | A43120145000 | REAR BRAKE SHOE COMP. - Call your local BRP dealership |
| 9 | A43151145000 | Shoe Strain Spring |
| 10 | A42617145000 | RETURN SPRING - Call your local BRP dealership |
| 11 | A960000603010 | Hex. Washer Face Bolt M6 X 30 |
| 12 | A960001202717L | Hex. Washer Face Bolt M12 X 27 |
| 13 | A43450145000 | REAR BRAKE CABLE - Call your local BRP dealership |
| 14 | V42610MAA010LL | Rear Drum This part replaces A42612145000. |
| 15 | A96500325211 | OIL SEAL - Call your local BRP dealership |
| 16 | A960000601208G | Hex. Washer Face Bolt M6 X 12 |
| 17 | A941011225050 | Plain Washer |
| 18 | A42613145000 | Rear Brake Cover |
| 19 | A960000801212G | HEXAGONAL WASHER FACE BOLT M8X12 - Call your local BRP dealership |
| 20 | A42601145000 | REAR DRUM - Call your local BRP dealership |
| 21 | A42614145000 | REAR DRUM COVER GASKET - Call your local BRP dealership |
| 22 | 233081416 | Hex. Flange Nut M8 This part replaces A9405008000. |
