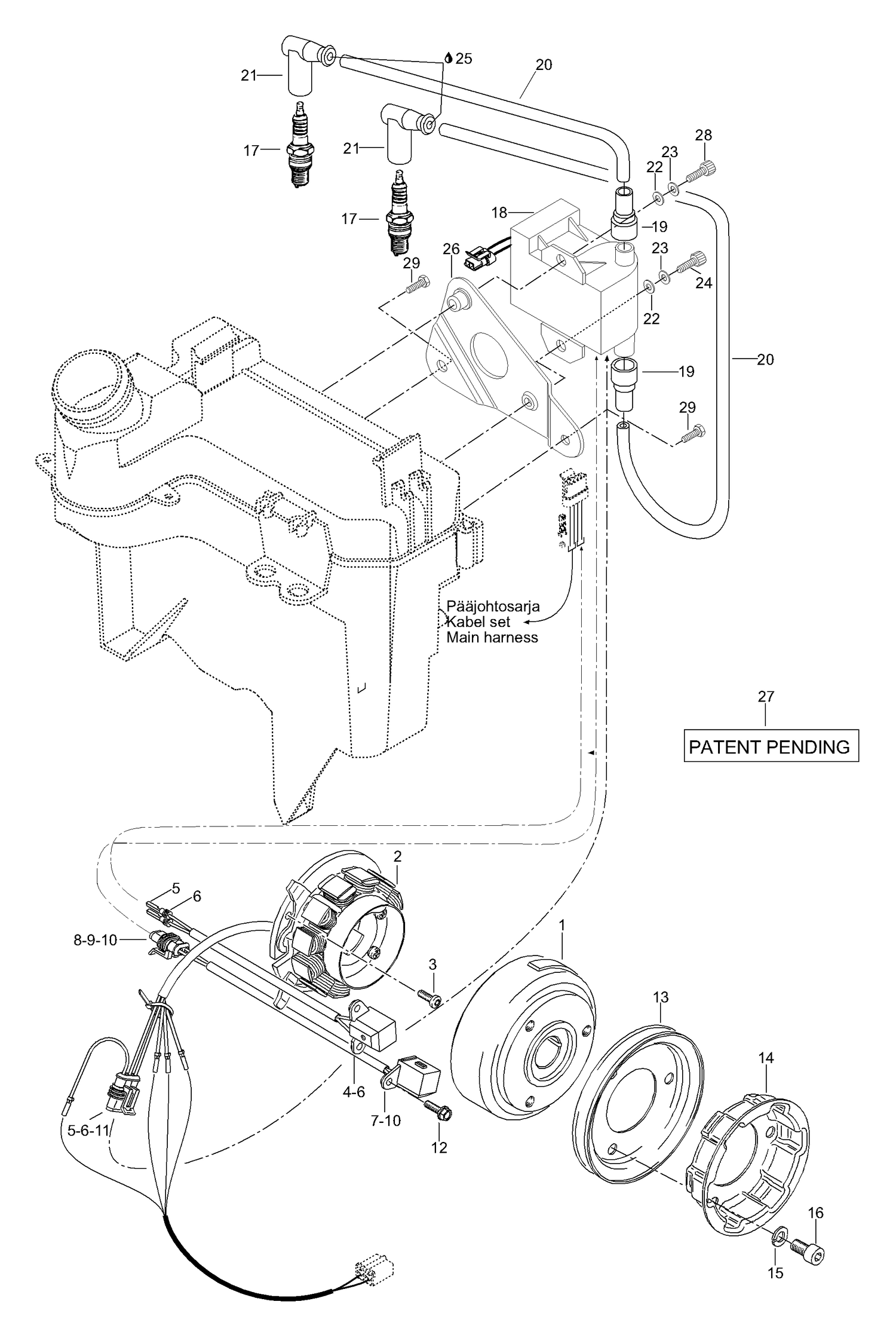

| Ref | Part Number | Description |
|---|
| 1 |
420889376 |
Magneto flywheel This part replaces 420889375. |
| 2 |
420889369 |
Stator Plate A This part replaces 420889365. |
| 3 |
420641521 |
Torx, allen screw M5 x 16 |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 8 |
409209500 |
Female Housing, 2 Circuits |
| 9 |
278001014 |
Female Terminal |
| 10 |
278001013 |
Wire Seal |
| 11 |
409209600 |
Female terminal housing |
| 12 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 13 |
420980488 |
V-belt pulley |
| 14 |
420852414 |
Starting pulley |
| 15 |
420845311 |
Lock washer |
| 16 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 17 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 19 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 20 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 21 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 22 |
20003 |
Washer |
| 23 |
20052 |
Spring washer |
| 24 |
40364 |
Allen screw M6 x 16 |
| 25 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 26 |
512059494 |
Bracket |
| 27 |
418003000 |
Pending-label |
| 28 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
