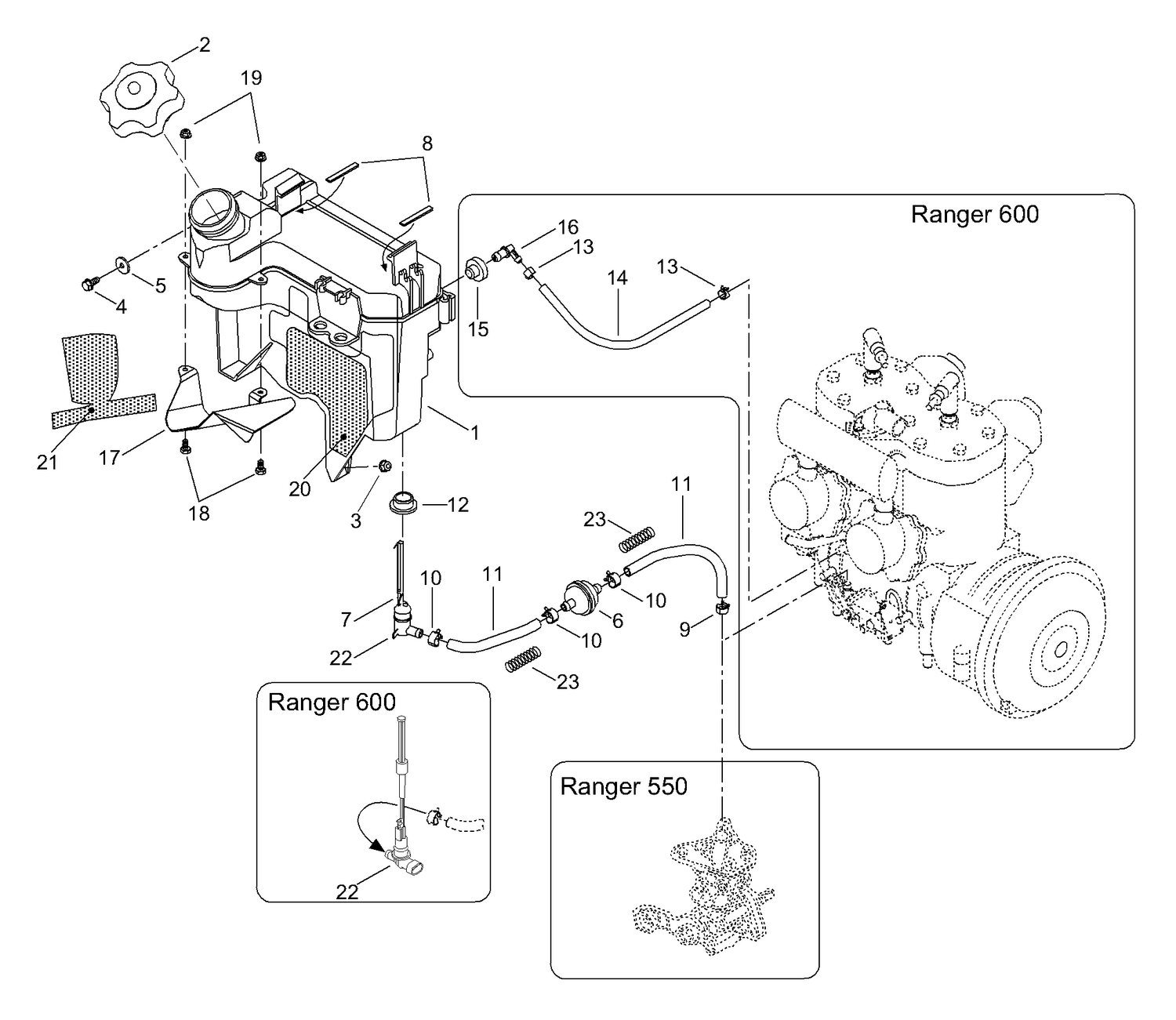

| Ref | Part Number | Description |
|---|
| 1 |
519000041 |
Oil tank |
| 2 |
519000042 |
CAP - Call your local BRP dealership |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
40327 |
Self tapping screw M6 x 12 |
| 5 |
20017 |
Serrated lock washer |
| 6 |
414536500 |
Oil filter |
| 7 |
414681900 |
Float |
| 8 |
Not |
Available As Spare Part - Protection trim - DOES NOT APPLY TO THIS MODEL |
| 9 |
414420700 |
Universal Spring Clamp |
| 10 |
414415200 |
Clamp |
| 11 |
39046 |
Hose 11/8 |
| 12 |
570023000 |
Seal for sensor |
| 13 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 14 |
Not |
Available As Spare Part - Hose 6.5/9.5 - DOES NOT APPLY TO THIS MODEL |
| 15 |
Not |
Available As Spare Part - Grommet - DOES NOT APPLY TO THIS MODEL |
| 16 |
Not |
Available As Spare Part - Male connector - DOES NOT APPLY TO THIS MODEL |
| 17 |
5348098 |
Deflector |
| 18 |
40026 |
Screw M5 x 12 |
| 19 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 20 |
519000059 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 21 |
519000051 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 22 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
