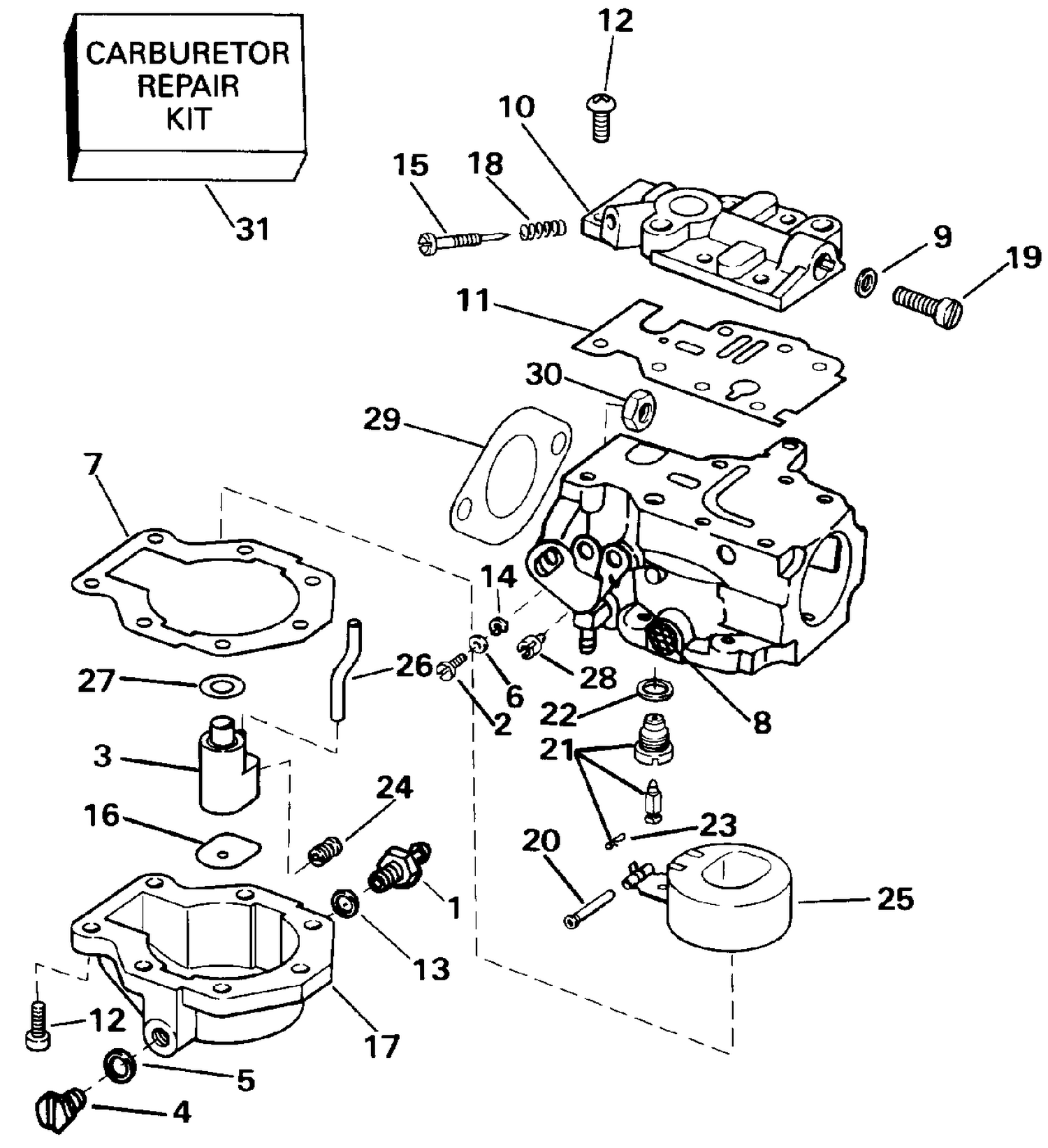

CARBURETOR - 20
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0434398 | NOZZLE WELL |
| 10 | 0337589 | COVER, Carb. body |
| 10 | 0436316 | COVER, Carb. body |
| 11 | 0334043 | GASKET, Cover |
| 15 | 0338171 | NEEDLE VALVE, Slow speed |
| 16 | 0333348 | GASKET, Cover to housing |
| 17 | 0398068 | FLOAT CHAMBER |
| 23 | 0336842 | CLIP, SPRING |
| 24 | 0325827 | HIGH SPEED ORIFICE, No. 44 |
| 26 | 0336567 | FLEX TUBE |
| 27 | 0338883 | GASKET, Upper |
| 28 | 0313329 | LOCKWASHER, Carburetor link |
| 29 | 0318932 | JOINT |
| 30 | 0328742 | NUT |
| 0434787 | 0436921 | CARBURETOR ASSY. This part replaces 0434787. |
