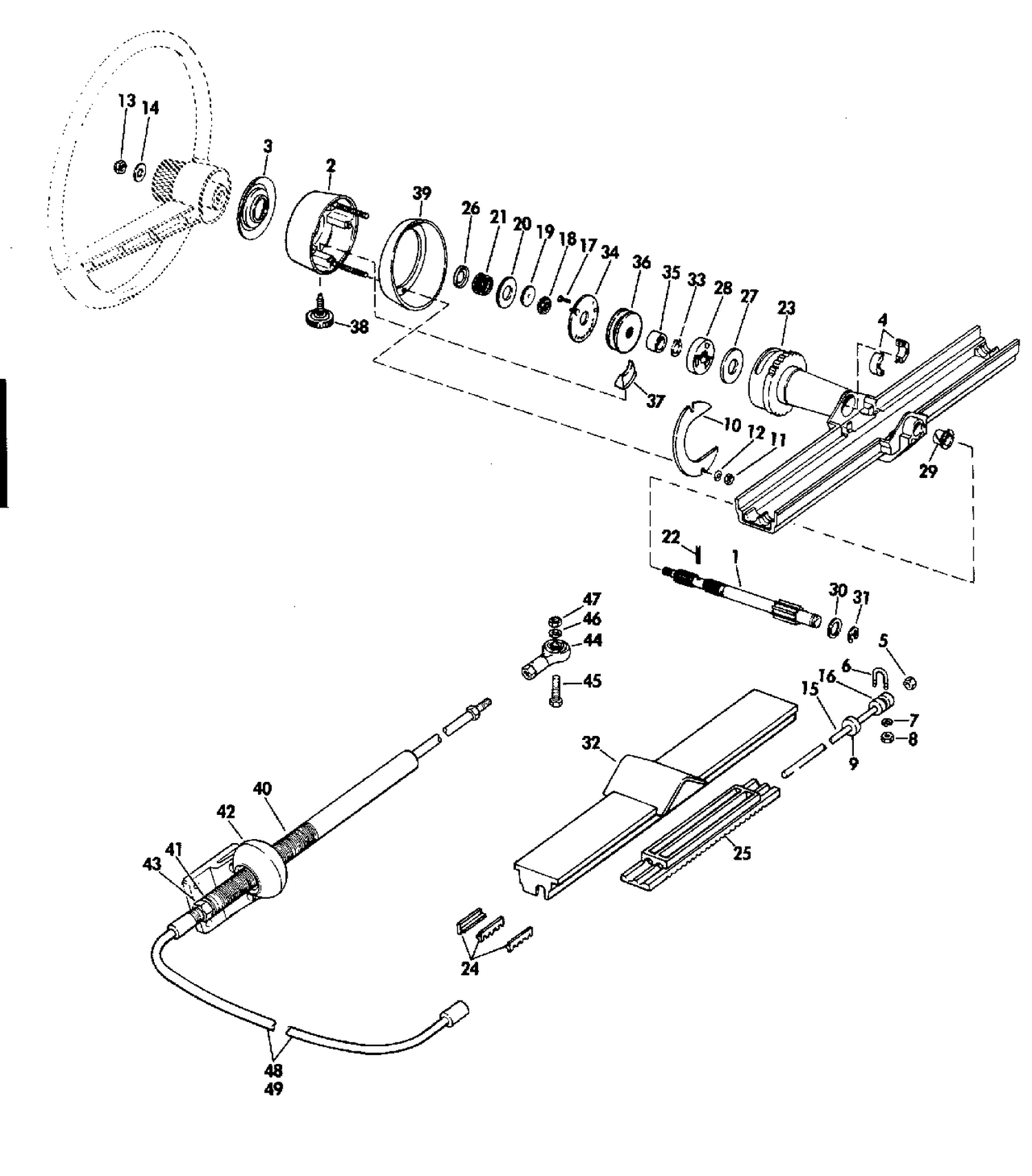

STEERING KIT - MECHANICAL

STEERING KIT - MECHANICAL

Parts (56)

RefPart NumberDescription
1 0171872 SHAFT & PINION ASSEMBLY
2 0171870 BEZEL ASEMBLY, White
2 0172406 BEZEL ASSEMBLY, Black
3 0121581 LENS
4 0122018 BEARING
5 0121798 NUT, Cable to helm
6 0121603 U BOLT
9 0121607 BUMPER
10 0121583 PLATE, Mounting
13 0904880 LOCKNUT, Steering shaft
14 0121639 SPRING WASHER, Steering wheel
15 0172109 GUIDE BAR ASSEMBLY
16 0121604 STOP
17 0121605 SCREW
18 0121598 GEAR, Drive
19 0121594 GEAR, Cluster
20 0121597 GEAR, Output
21 0121586 SPRING, Coil
23 0121577 HELM
24 0121582 PAD, Wear
25 0121579 RACK
26 0121641 WASHER, Coupled
27 0121588 WASHER, Thrust
28 0121592 BEARING, Front
29 0121590 BEARING, Front
30 0121589 WASHER, End play
31 0121599 BOWED "E" RING
32 0121580 COVER, Dust, snap on
33 0121591 RING, Retaining
34 0171871 SUPPORT PLATE ASSEMBLY
35 0121732 SPACER
36 0121700 PULLEY, Brake
37 0121701 SHOE, Brake
38 0121699 SCREW, Jack
39 0172145 ADAPTER KIT, 20
39 0172325 ADAPTER KIT, 20 chrome
39 0172403 ADAPTER KIT, 20 black
40 0122032 SUPPORT TUBE
41 0300660 LOCKWASHER
43 0318802 NUT, Cable to bracket
44 0172065 CONNECTOR, Steerin
45 0121832 CAPSCREW
46 0121831 SPACER
48 0172010 CABLE ASSEMBLY, 10' to
48 0172040 CABLE ASSEMBLY, 40'
49 0172003 CABLE ASSEMBLY, Dual station, 10'
49 0172004 CABLE ASSEMBLY, Dual station, 12'
49 0172005 CABLE ASSEMBLY, Dual station, 14'
49 0172006 CABLE ASSEMBLY, Dual station, 16'
49 0172007 CABLE ASSEMBLY, Dual station, 18'
49 0172008 CABLE ASSEMBLY, Dual station, 20'
0121702 0121702 CLIP, Canoe
0171979 0171979 RUBBER BRAKE ASSEMBLY
0171982 0171982 HELM ASSEMBLY, White
0172251 0172251 TRANSOM BRACKET KIT
0172428 0172428 HELM ASSEMBLY, Black
