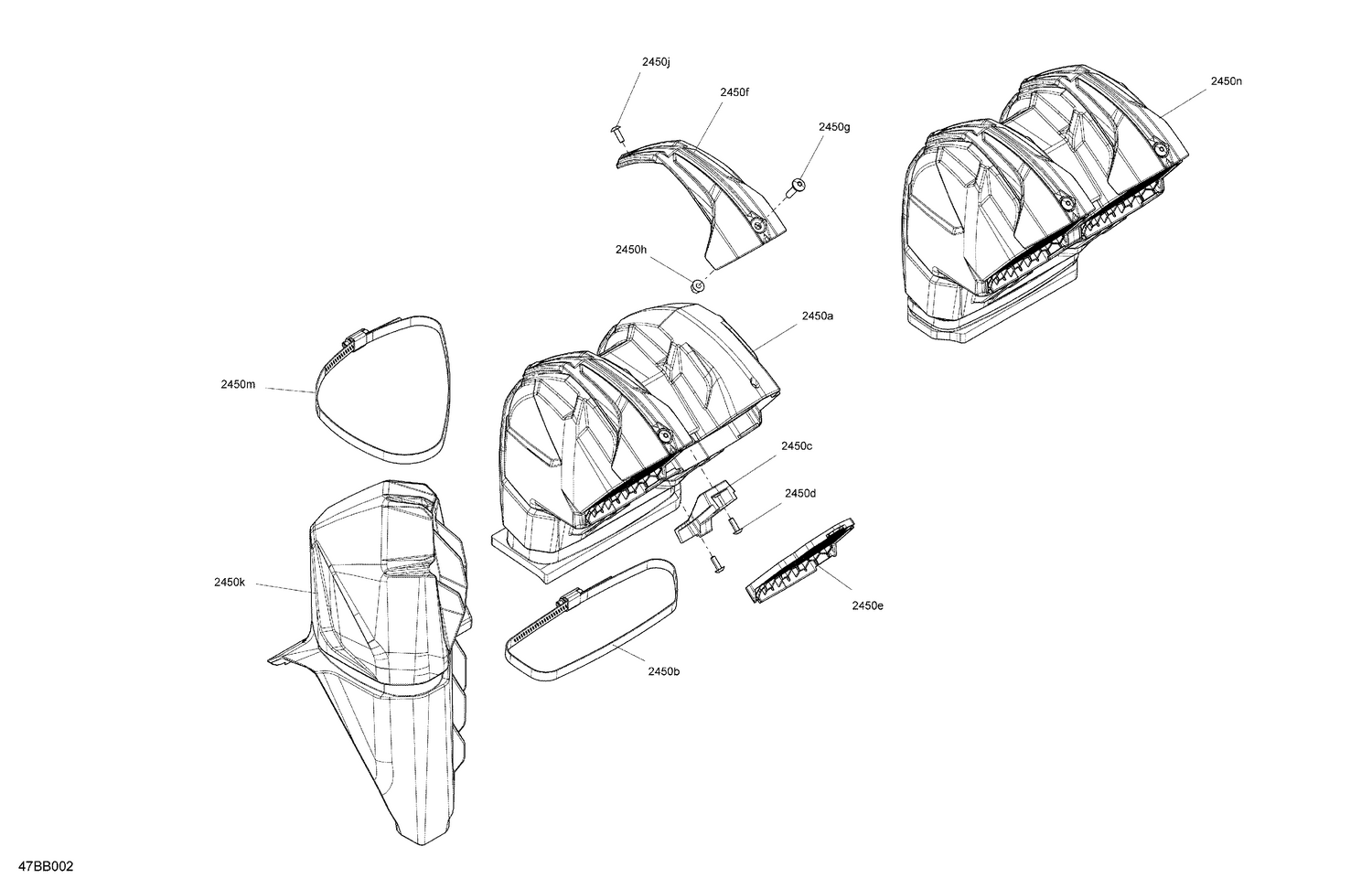

07- Body - Snorkel
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2450a | 706600271 | Air Inlet |
| 2450b | 293650275 | Clamp |
| 2450c | 706600284 | Jonction Grid |
| 2450d | 250001131 | Torx Truss PT K40 x 12 |
| 2450e | 706600407 | Air Inlet Grille |
| 2450f | 707001978 | Cap Can-Am Red |
| 2450g | 250000792 | Torx Screw M5 X 20 |
| 2450h | 233251494 | Elastic Flange Nut M5 |
| 2450j | 250001131 | Torx Truss PT K40 x 12 |
| 2450k | 706600265 | CVT Outlet |
| 2450m | 293650276 | Clamp |
