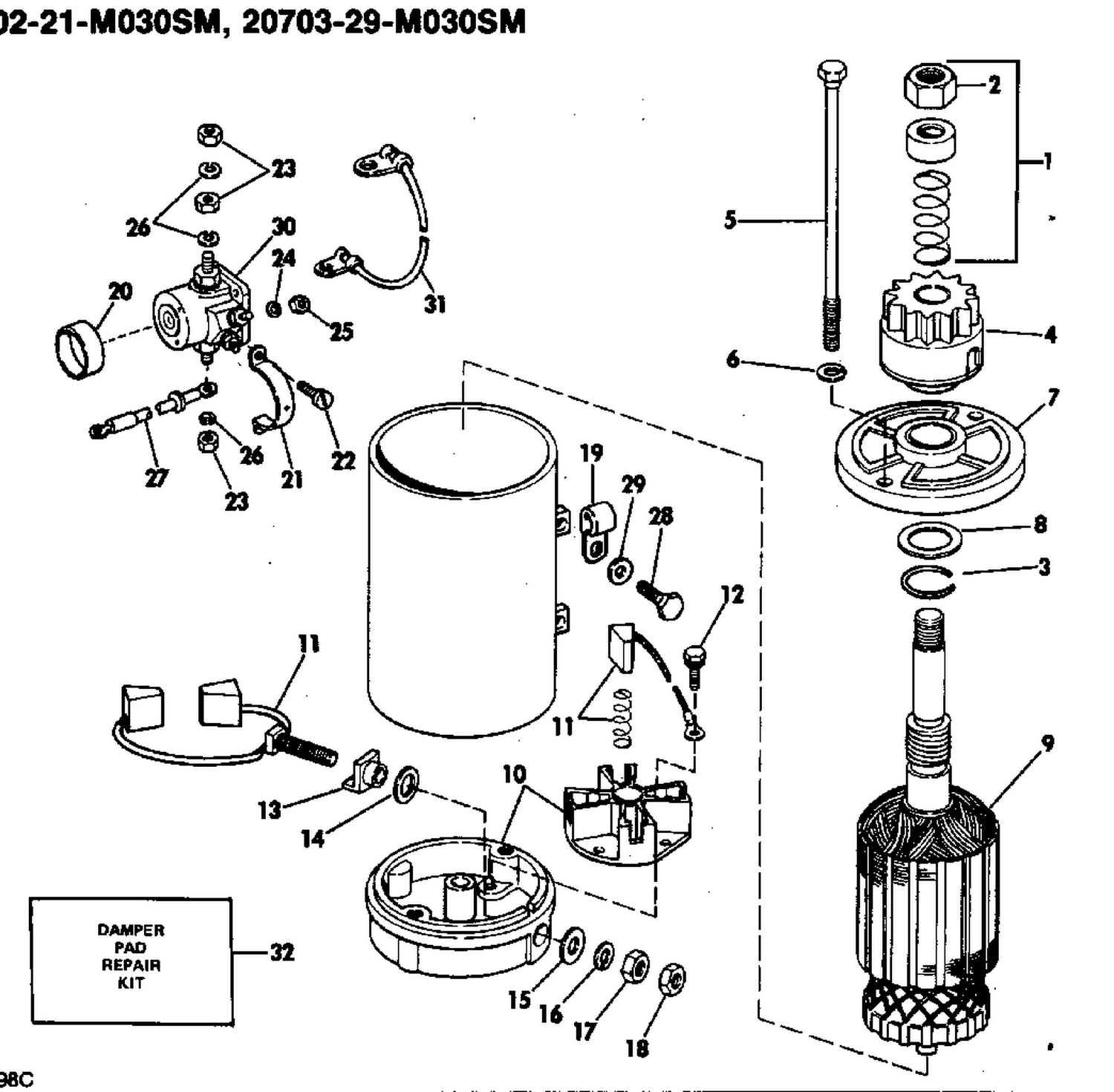

| Ref | Part Number | Description |
|---|
| 1 |
0393354 |
NUT SPRING & SPACER KIT |
| 2 |
0393354 |
NUT SPRING & SPACER KIT This part replaces 0316740. |
| 4 |
0385949 |
DRIVE ASSY |
| 5 |
0392995 |
THRU BOLT PKG. |
| 6 |
0318499 |
LOCK WASHER |
| 9 |
0318584 |
AMRMATURE |
| 10 |
0385844 |
CAP ASSY COMMUTATOR This part replaces 0328381. |
| 10 |
0386645 |
CAP ASSY ., Commutator |
| 19 |
0511740 |
CLAMP,Timer leads |
| 20 |
0311217 |
MANCHON, solénoïde |
| 21 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 22 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 28 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 28 |
0306501 |
BOLT, Water pump |
| 31 |
0580733 |
FIL, masse solénoïde |
| 0389954 |
0389954 |
STARTER MOTOR ASS |
