Home / BRP / Can-Am SXS / 2023 / 003 - SSV - North America - Defender HD9 Series / 004 - Defender HD9 - XT - North America, 2023 0008FPA00 0008FPB00 0008FPC00 0008FPD00 0008FPE00 0008FPF00 0008FPG00 0008FPH00 / 07- Body - Roof

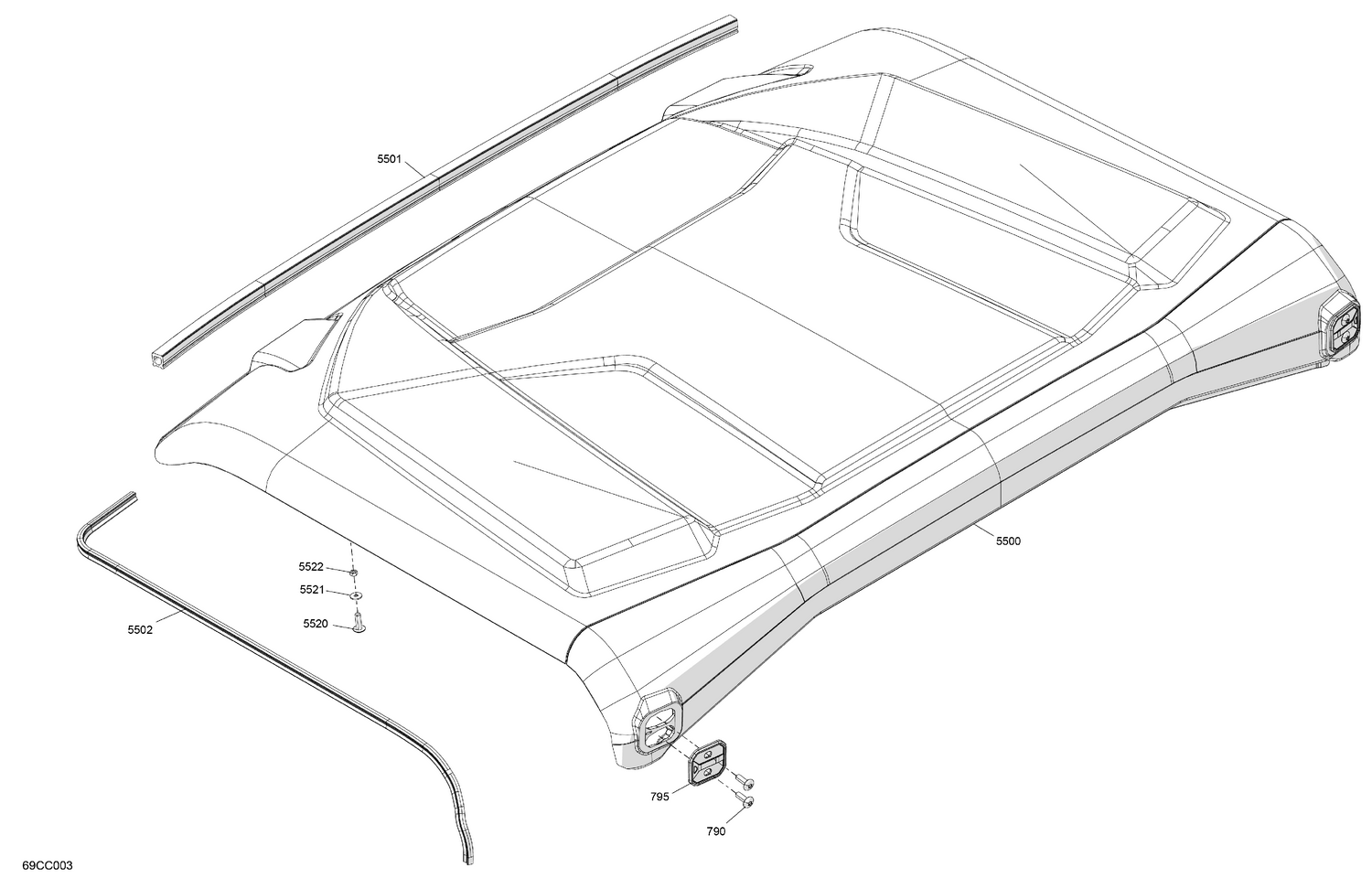

07- Body - Roof

07- Body - Roof

Parts (7)

RefPart NumberDescription
790 250000874 Torx Truss M8 X 25
5500 715002430 Sport Roof Kit
5501 219704379 Was 293250361 Gasket
5502 705800054 Outer Seal
5520 250000874 Torx Truss M8 X 25
5521 234082410 Flat Washer 8 mm
5522 232081414 Hex. Nut M8
