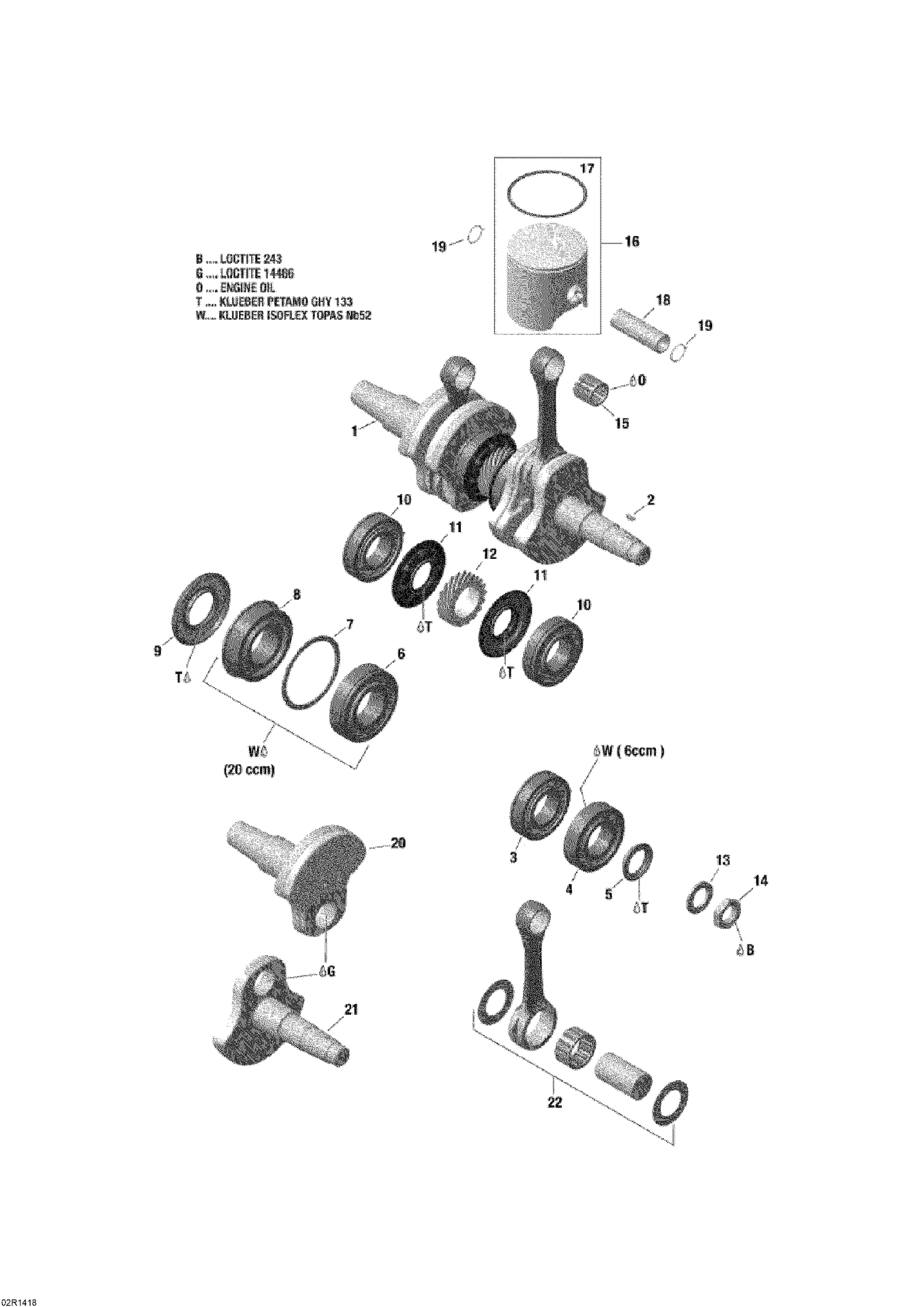

01- Crankshaft And Pistons
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| G | 619600012 | Loctite 648, 10 ml |
| O | Not | Available As Spare Part - Engine Oil |
| T | 619600023 | Grease, 400g |
| 2 | 420246015 | Woodruff Key |
| 3 | 420832175 | Ball Bearing |
| 4 | 420832575 | Ball Bearing 6207 |
| 6 | 420832672 | Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 7 | 420926190 | Washer |
| 8 | 420832702 | Ball Bearing |
| 10 | 420832175 | Ball Bearing |
| 12 | 420834565 | CENTRAL GEAR - Call your local BRP dealership |
| 13 | 420945759 | Lock Washer, 22 mm |
| 15 | 420832030 | Needle Bearing |
| 17 | 420815416 | Semi-Trapez Ring |
| 18 | 420916480 | Piston Pin |
| 20 | Not | Available As Spare Part - Crankshaft, PTO Side |
| 21 | Not | Available As Spare Part - Crankshaft, MAG Side |
| 22 | 420892568 | Rod Repair Kit, MAG Side |
| 22 | 420892569 | Rod Repair Kit, PTO Side |
