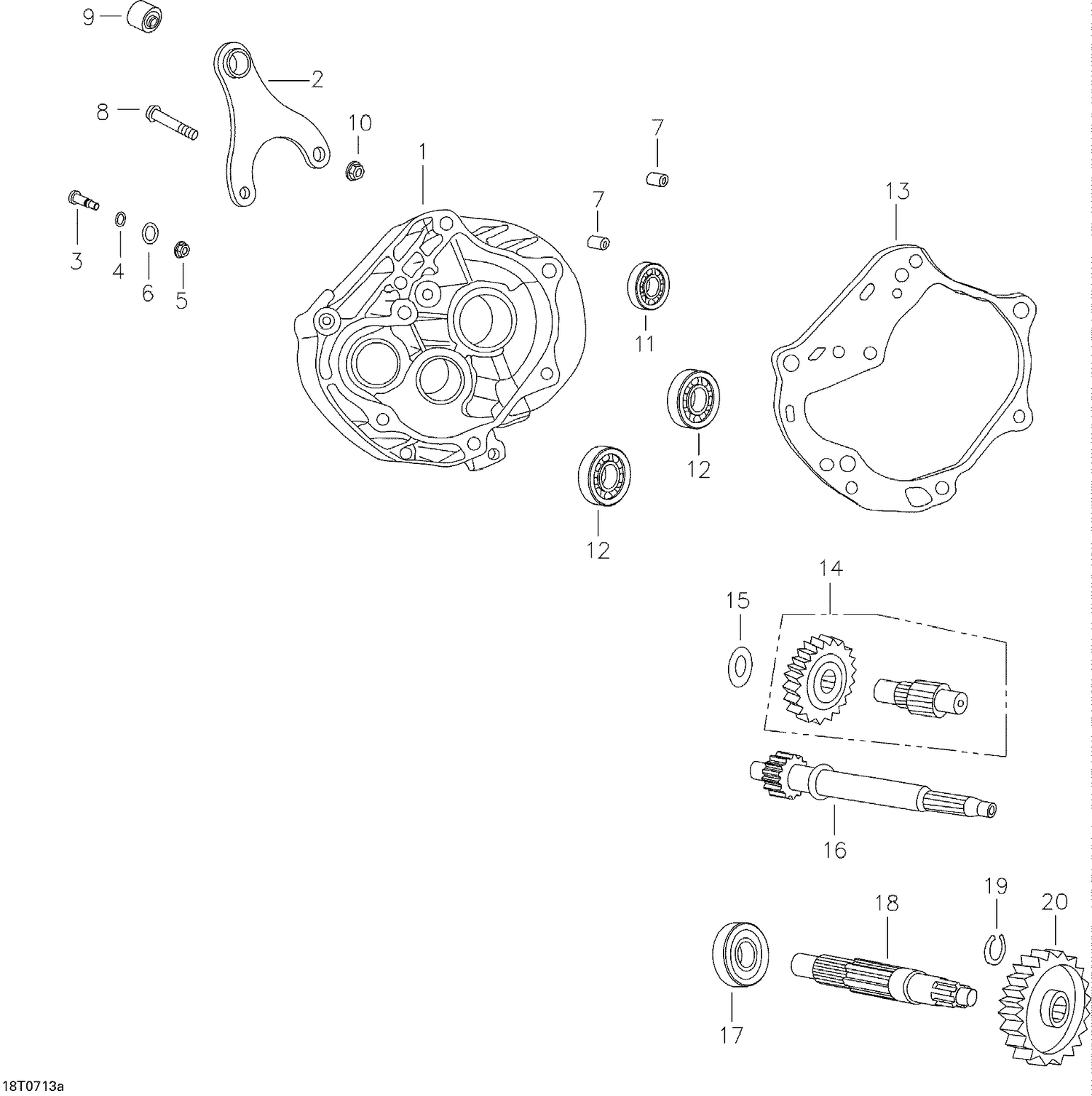

05- Transmission
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A21301175000 | COVER - Call your local BRP dealership |
| 2 | A11202175000 | Bracket |
| 3 | A45110175000 | Fix Shaft |
| 4 | A91307101000 | OIL RING - Call your local BRP dealership |
| 5 | 233081416 | Hex. Flange Nut M8 |
| 6 | A941040816020 | Washer Plain This part replaces A941010816020. |
| 7 | A9430110200 | Dowel Pin |
| 8 | A45111175000 | Fix Shaft |
| 9 | A96400102820 | RUBBER BUSHING - Call your local BRP dealership |
| 10 | A940521400021 | Scotch Flange Nut M14 |
| 11 | A961006004U | RADIAL BALL BEARING, 6004LU - Call your local BRP dealership |
| 12 | A9610062010 | Radial Ball Bearing, 6201 |
| 13 | A21395133000 | MISSION COVER GASKET - Call your local BRP dealership |
| 14 | A23420133000 | MAIN SHAFT - Call your local BRP dealership |
| 15 | A941021220013 | Washer Plain |
| 16 | A23411133000 | DRIVE SHAFT - Call your local BRP dealership |
| 17 | A9650027427 | Oil Ring |
| 18 | A23431175000 | FINAL SHAFT - Call your local BRP dealership |
| 19 | A945112000S | External CirClip |
