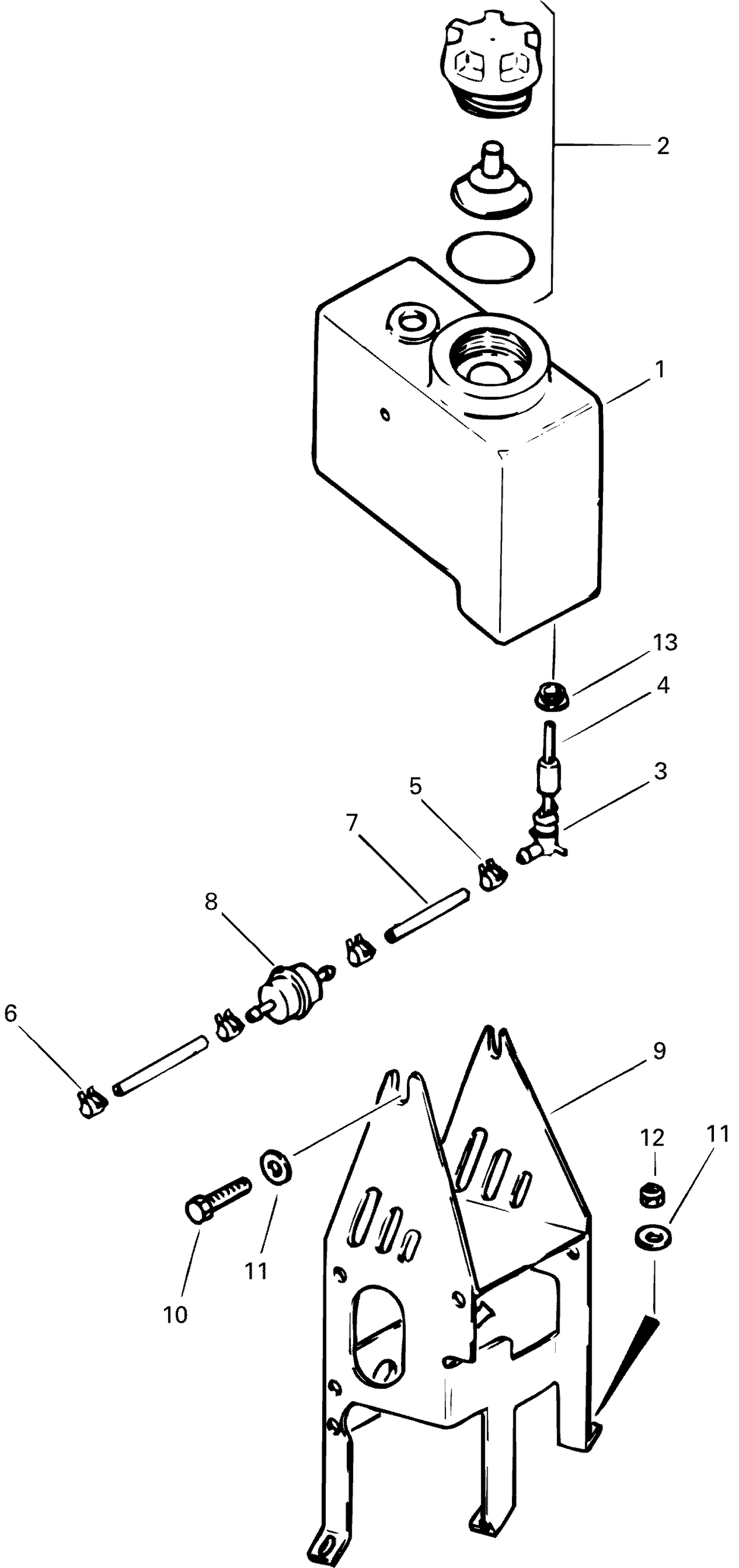

02- Oil Tank And Support
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 571002500 | Oil Tank |
| 2 | 580578100 | Oil Tank Cap Ass’y |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 414415200 | Spring Clamp |
| 6 | 414420700 | Spring Clamp |
| 7 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 8 | 414536500 | Filter |
| 9 | M539753 | Support |
| 10 | 207161244 | HEX. SCREW M6 X 12 - Call your local BRP dealership This part replaces 222061265. |
| 11 | 234161471 | Lock Washer M6, Black This part replaces M20052. |
| 12 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
