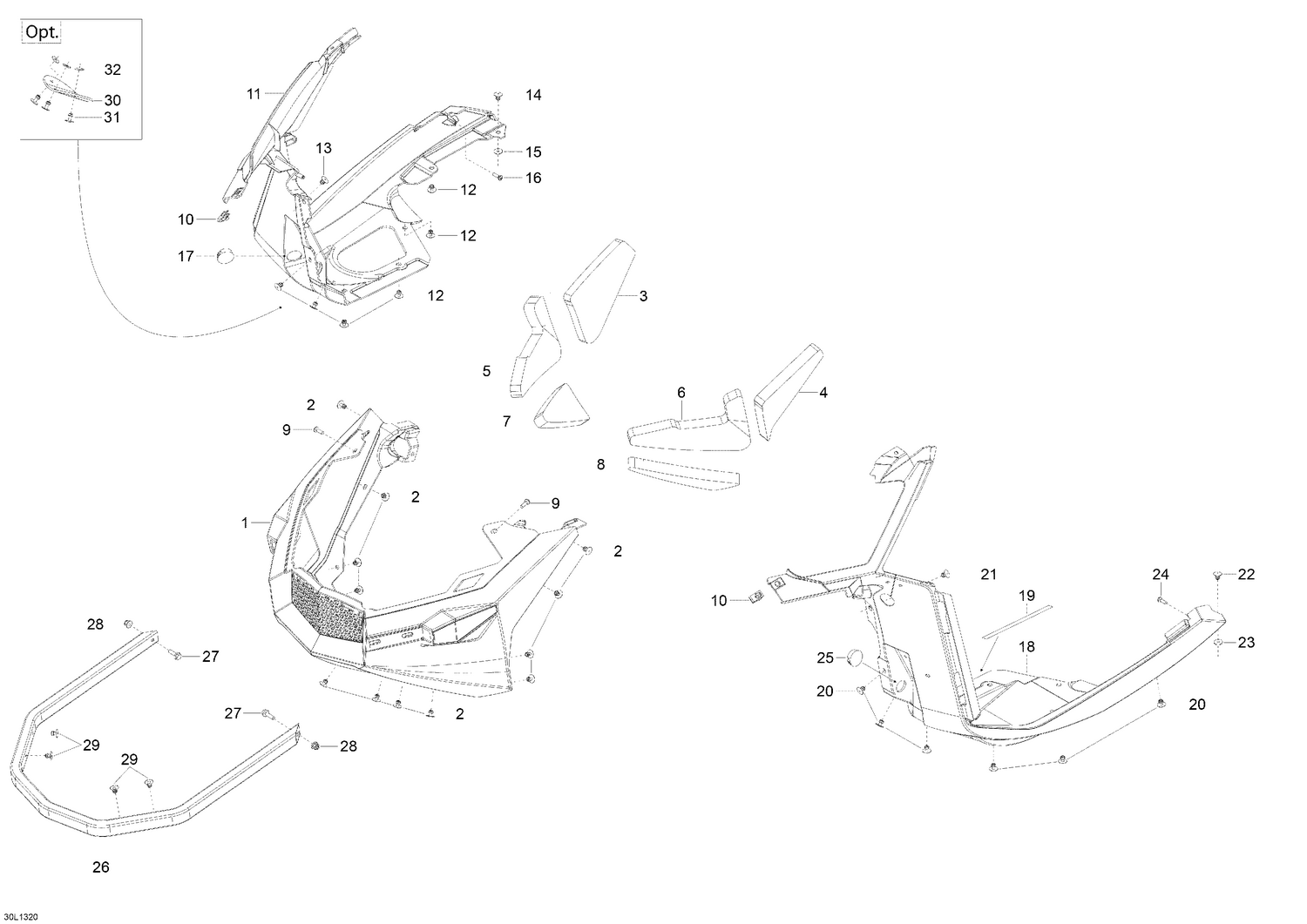

09- Bottom Pan
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006971 | Bottom Pan |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 502007210 | Upper Foam RH |
| 4 | 502007211 | Upper Foam LH |
| 5 | 502007212 | Middle Foam RH |
| 6 | 502007213 | Middle Foam LH |
| 7 | 502007214 | Lower Foam RH |
| 8 | 502007215 | Lower Foam LH |
| 9 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 10 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 11 | 502006831 | Bottom Pan RH |
| 12 | 293150104 | Pop Rivet 3/16 |
| 13 | 293150103 | Pop Rivet 3/16 |
| 14 | 390402300 | Pop Rivet 3/16 |
| 15 | 517124300 | Washer |
| 16 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 17 | 414916600 | Nylon Cap |
| 18 | 502006832 | Bottom Pan LH |
| 19 | Not | Available As Spare Part - Gasket |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 293150103 | Pop Rivet 3/16 |
| 22 | 390402300 | Pop Rivet 3/16 |
| 23 | 517124300 | Washer |
| 24 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 25 | 414916600 | Nylon Cap |
| 26 | 502007150 | Front Bumper |
| 27 | 207662044 | Hex. Flange Screw M6 X 20 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 293150104 | Pop Rivet 3/16 |
| 30 | 502006935 | Snow Deflector (Opt.) |
| 31 | 293150104 | Pop Rivet 3/16 |
