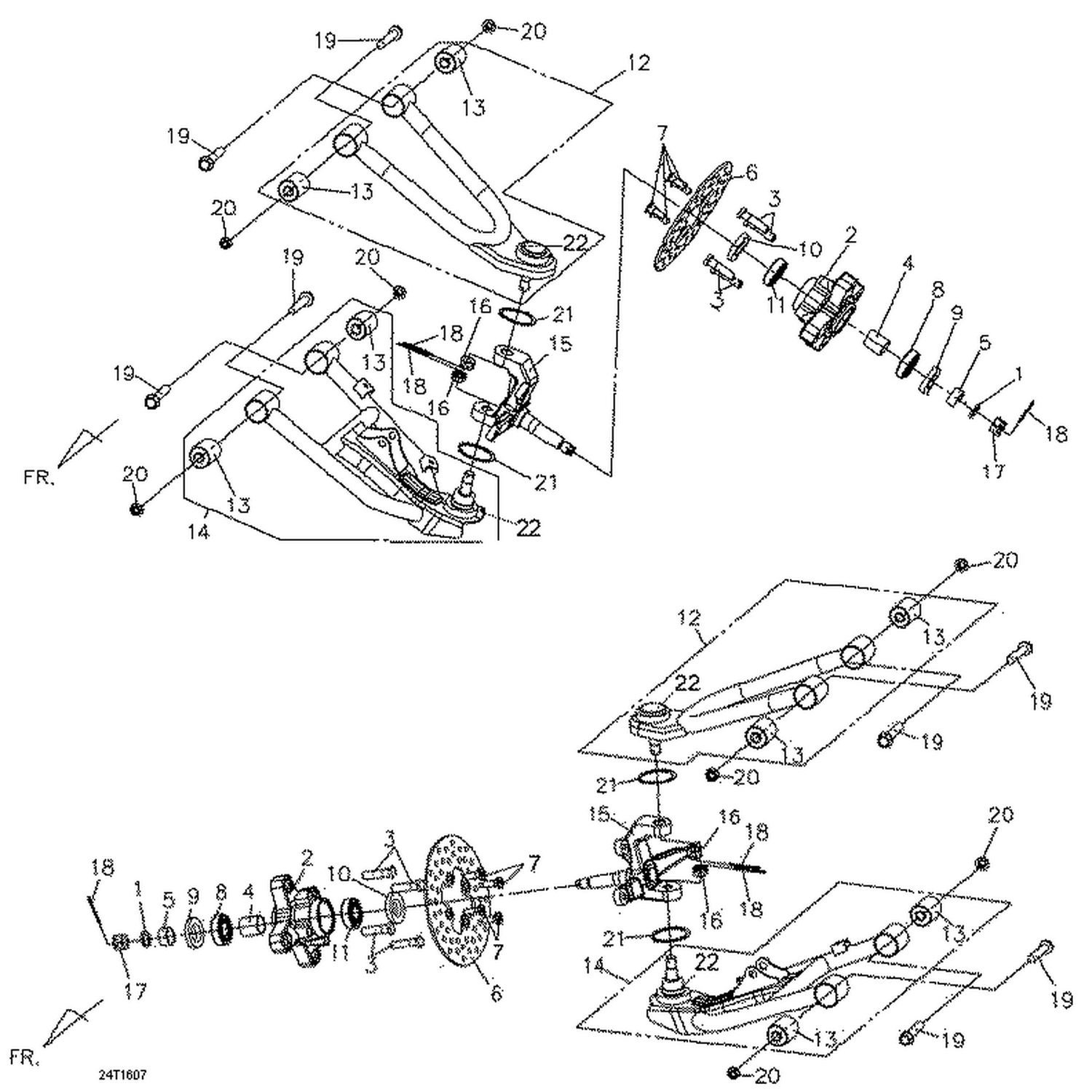

07- Front Suspension North America
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S44611RCA000 | Front Wheel Washer |
| 2 | S44610RCA000 | Front Wheel Hub |
| 3 | S44612RCA000 | Wheel Stud |
| 4 | S44620RCA000 | Inner Spacer |
| 5 | S44622RCA000 | Outer Collar |
| 6 | S45351RCA000 | Brake Disk |
| 7 | S90105KR3000 | Bolt M8 X 24 |
| 8 | S91208GA7003 | Radial Ball Bearing This part replaces S91028GA7003. |
| 9 | S91202RCA000 | Oil Seal |
| 10 | S91205RCA000 | Oil Seal |
| 11 | S961506004310 | Ball Bearing |
| 12 | S50200RCA000 | RH Upper Arm Ass'y |
| 12 | S50210RCA000KB | LH Upper Arm This part replaces S50210RCA000. |
| 13 | S50201RCA000 | Bushing |
| 14 | S50220RCA000 | RH Lower Arm Ass'y |
| 14 | S50230RCA000KB | Lh Lower Arm Ass'Y This part replaces S50230RCA000. |
| 15 | S50240RCA000 | RH Knuckle Ass'y |
| 15 | S50250RCA000 | LH Knuckle Ass'y |
| 16 | 232221414 | Hex. Castellated Nut M12 |
| 17 | S94011142000S | Hex. Castlellated Nut 14 mm |
| 18 | 371003400 | Cotter Pin |
| 18 | S9451029120 | CIRCLIP - Call your local BRP dealership |
| 19 | S958011006007 | Flanged Bolt M10 X 60 |
| 20 | S90304RCA000 | Flanged Nylon Nut 10 mm |
