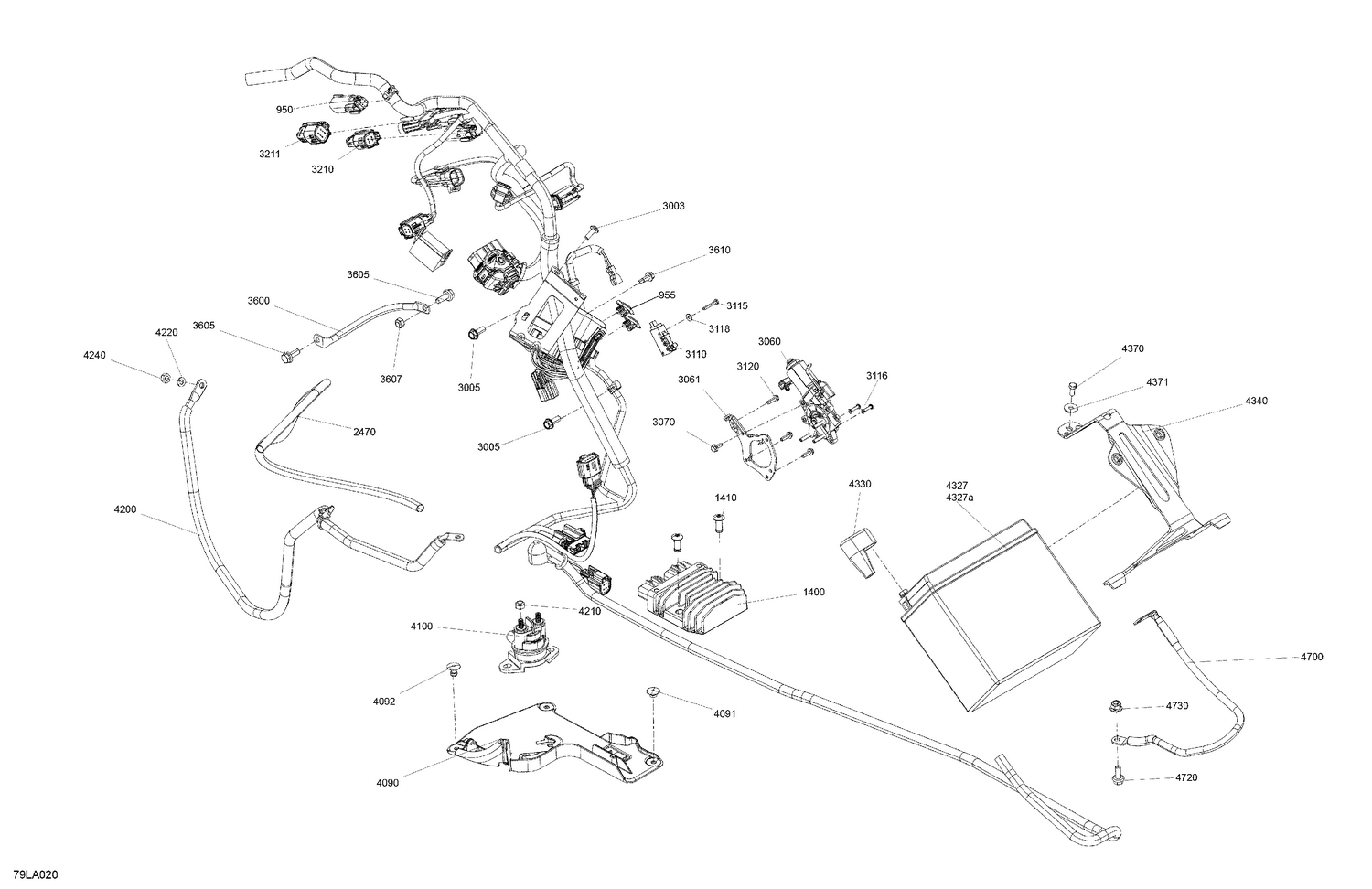

08- Electric - Lower Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 950 | 278003866 | Housing 6 Circuits |
| 955 | 515178223 | Clip Connector |
| 1400 | 710001103 | Voltage Regulator |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2470 | 415130141 | Sleeve |
| 3003 | 250000742 | Torx Screw M5 X 14 |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3060 | 515180200 | Engine Assembly |
| 3061 | 515178808 | Stop Plate |
| 3070 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3110 | 515177460 | Switch Ass'y |
| 3115 | 207132044 | Hex. Cap Screw M3 x 20 |
| 3116 | 515178495 | Rivet |
| 3118 | 234032600 | Flat Washer M3, Stainless |
| 3120 | 210262040 | Hex. HD. Forming Screw M6 x 20 |
| 3211 | 515178202 | Connector Coil |
| 3600 | 515178338 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 232561434 | Elastic Stop Nut M6 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4090 | 515178244 | Support |
| 4091 | 293150103 | Pop Rivet 3/16 |
| 4092 | 293150104 | Pop Rivet 3/16 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178336 | Battery Wire |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561434 | Elastic Stop Nut M6 |
| 4327a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515177870 | Battery Strip |
| 4370 | 207151244 | Hex. Screw M5 X 12 |
| 4371 | 391301600 | Washer |
| 4700 | 515178155 | Ground Wire |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
