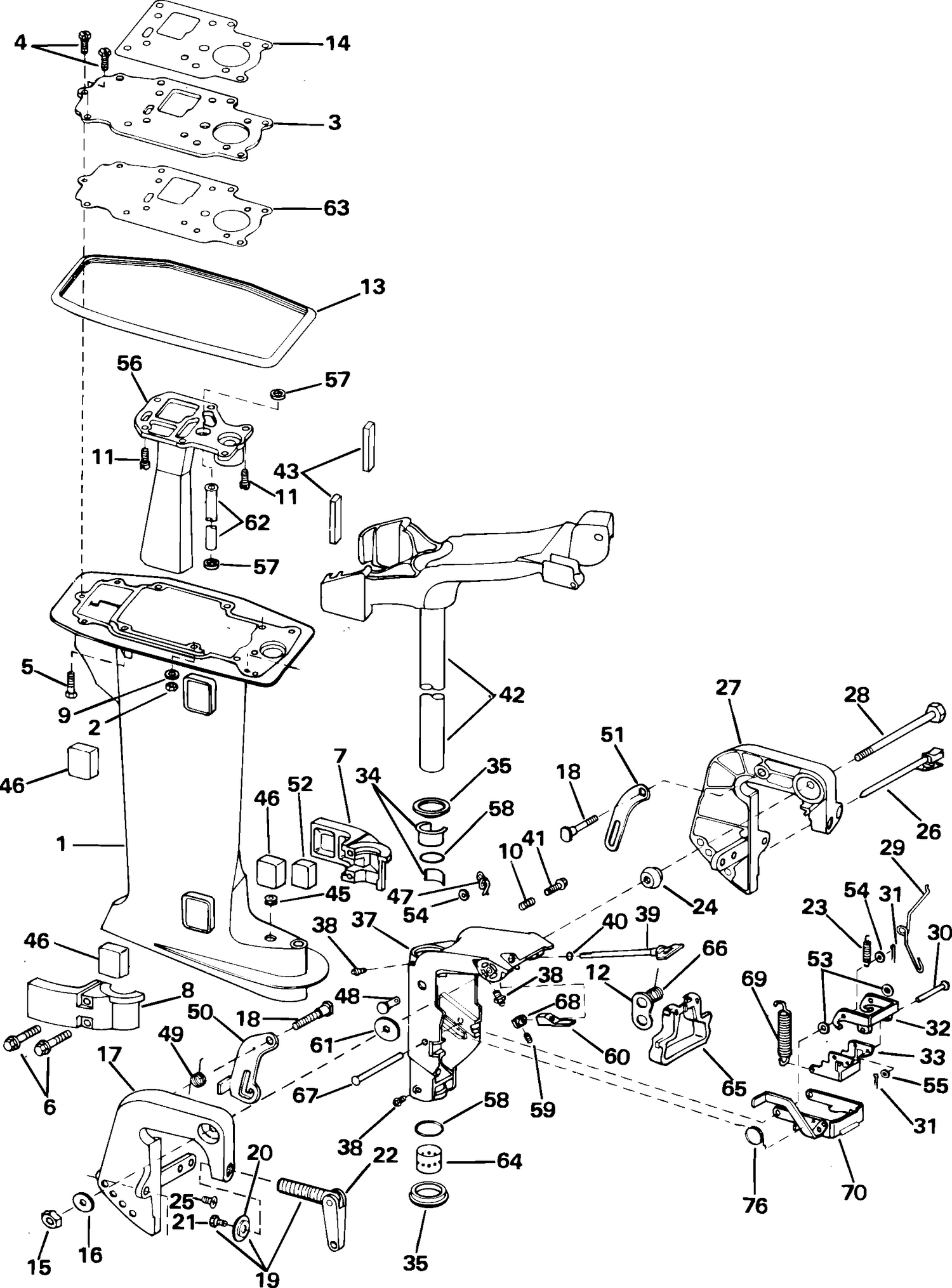

| Ref | Part Number | Description |
|---|
| 1 |
0335894 |
EXHAUST HOUSING Assy |
| 2 |
0328742 |
NUT |
| 3 |
0336146 |
PLATE, Adapter |
| 5 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 6 |
0325115 |
SCREW, Oil tank/EMM mount |
| 7 |
0324596 |
BRACKET, Lower mount, port |
| 8 |
0324597 |
BRACKET, Lower mount, stbd. |
| 9 |
0329241 |
RONDELLE |
| 12 |
0336559 |
BRACKET, Chain |
| 13 |
0336187 |
SEAL, Exhaust housing |
| 14 |
0336117 |
GASKET, Adapter plate |
| 16 |
0312874 |
SPRING WASHER, Strg. handle |
| 17 |
0335892 |
STERN BRACKET Assy, Stbd. |
| 18 |
0328895 |
SCREW, Tilt lock |
| 19 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 23 |
0202021 |
SPRING, Link to shallow water drive |
| 24 |
0301983 |
CONICAK WASHER,Stern brkt |
| 25 |
0901889 |
SCREW |
| 26 |
0432453 |
KNOB & TILT PIN ASSY. |
| 27 |
0335891 |
STERN BRACKET Assy, Port |
| 28 |
0336158 |
BOLT, Tilt |
| 29 |
0324588 |
LINK , Reverse lock arm |
| 30 |
0324582 |
PIN, Link locking lever |
| 32 |
0324580 |
LINK, Reverse lock |
| 33 |
0324581 |
LEVER, Reverse lock |
| 34 |
0392319 |
FRICTION PLATE, Pad & bushing |
| 35 |
0324576 |
WASHER, Thrust, seal & pivot tube |
| 37 |
0434024 |
SWIVEL BRACKET Assy |
| 41 |
0324603 |
SCREW, Cover to base |
| 42 |
0434032 |
STEERING BRACKET |
| 43 |
0336252 |
RUBBER MOUNT, Steering bracket |
| 45 |
0552360 |
PASSE-FILS, tige de commande de sens de marche |
| 46 |
0318997 |
LATERAL MOUNT, Lower |
| 48 |
0329531 |
PIN, Tilt arm |
| 49 |
0329002 |
SPRING, Tilt lock link |
| 50 |
0328999 |
ARM, Tilt lock starboard |
| 51 |
0328998 |
ARM, Tilt lock port. |
| 52 |
0326302 |
START BUTTON, Inner |
| 54 |
0303887 |
WASHEER, Pin to swivel bracket |
| 56 |
0336273 |
EXHAUST TUBE, Inner |
| 57 |
0335963 |
GROMMET, Water tube |
| 59 |
0324967 |
VIS |
| 60 |
0324584 |
SPACER, Reverse lock release |
| 61 |
0304278 |
WASHER |
| 62 |
0336124 |
WATER TUBE, Long |
| 62 |
0336125 |
WATER TUBE, RS Models |
| 63 |
0336115 |
GASKET, Exhaust housing |
| 64 |
0334360 |
BUSHING, Lower, swivel bracket |
| 65 |
0394907 |
CARRYING HANDLE |
| 67 |
0324583 |
PIN, Reverse lock |
| 68 |
0324586 |
LEVER, Reverse lock release |
| 69 |
0324591 |
SPRING, Carrying handle |
| 70 |
0391317 |
LINK, Shallow water drive |
