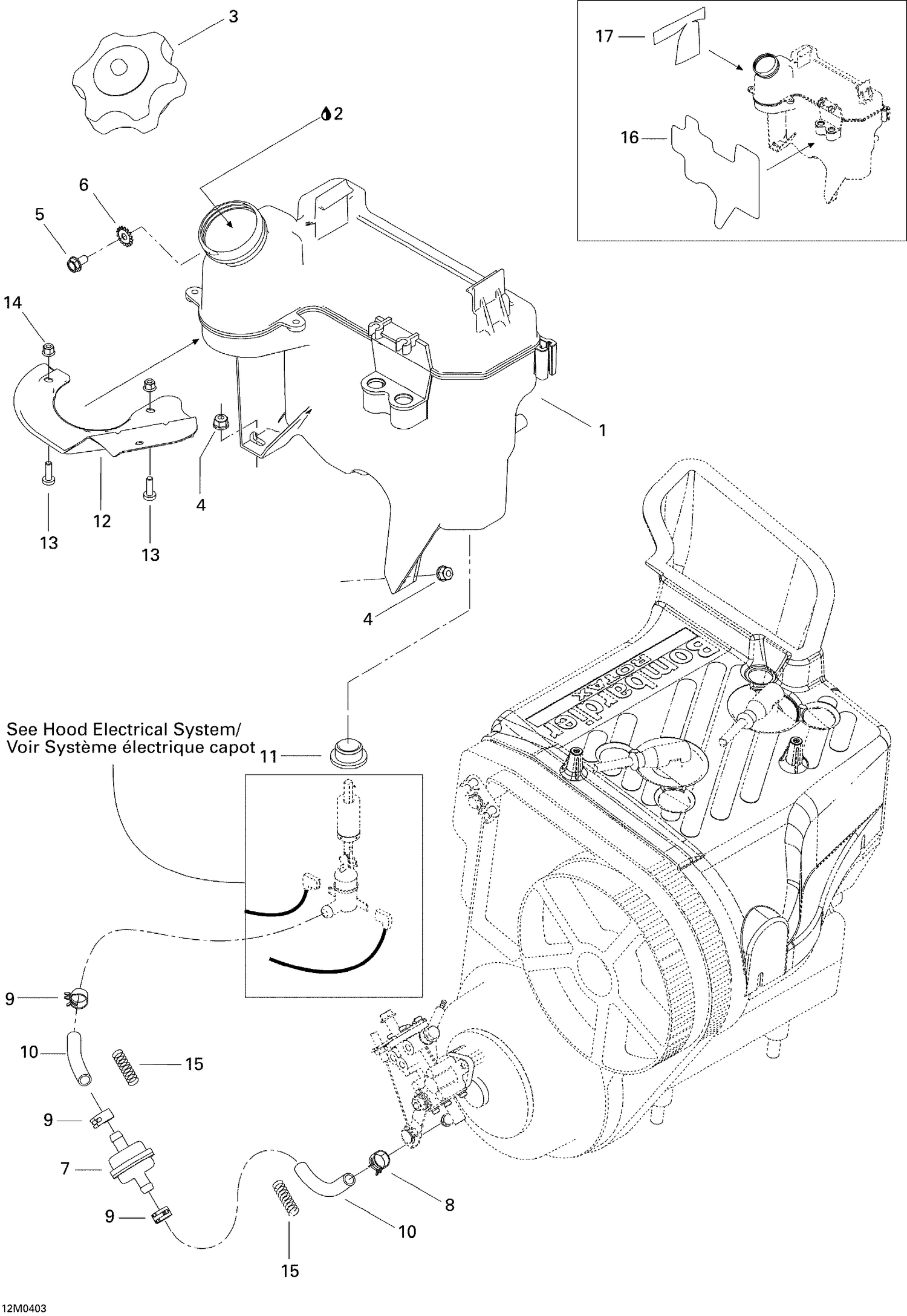

| Ref | Part Number | Description |
|---|
| 1 |
519000041 |
Injection Oil Tank |
| 2 |
293600120 |
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 3 |
519000042 |
CAP - Call your local BRP dealership |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 5 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 6 |
250200041 |
Lock Washer Serrated M6 |
| 7 |
414536500 |
Filter |
| 8 |
414420700 |
Spring Clamp |
| 9 |
414415200 |
Spring Clamp |
| 10 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 11 |
570023000 |
Insulating Ring |
| 12 |
519000043 |
Deflector |
| 13 |
208651641 |
Hex. Screw M5 X 16 |
| 14 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 15 |
414940300 |
SPRING_COMPRESSION - Call your local BRP dealership |
| 16 |
519000059 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
