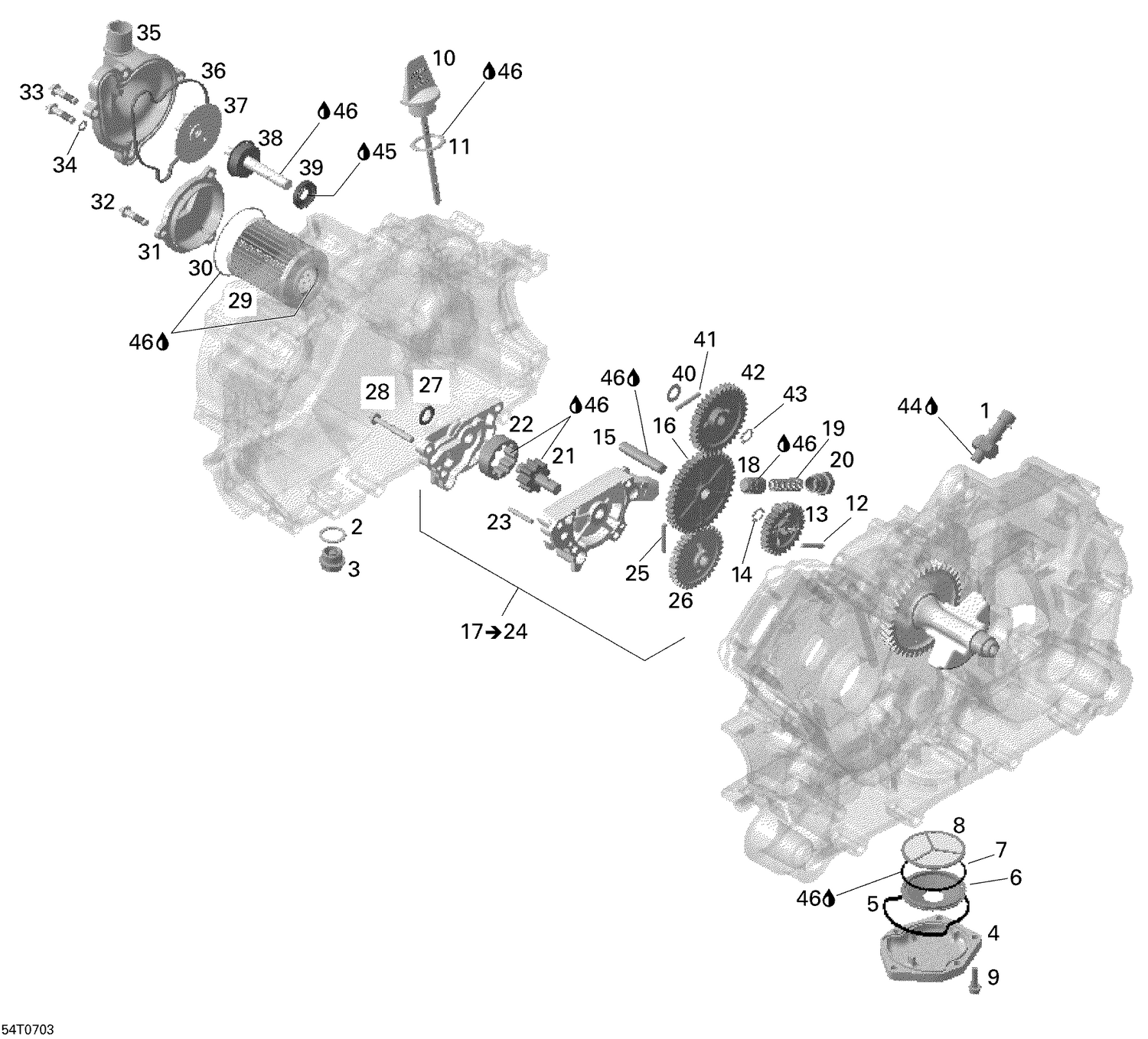

01- Engine Lubrication
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420856539 | Inter.Press.Hui*Switch-Oil Pressure This part replaces 420256770. |
| 2 | 420552280 | Crush Washer |
| 3 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 4 | 420211940 | OIL SIEVE COVER - Call your local BRP dealership |
| 5 | 420650560 | Rubber Ring |
| 6 | 420256650 | Oil Collector |
| 7 | 420650697 | O-Ring This part replaces 420650695. |
| 8 | 420256576 | Oil Sieve This part replaces 420256575. |
| 9 | 420440207 | Torx Flange Screw M6 X 20 This part replaces 420440202. |
| 10 | 420256800 | Oil Dipstick |
| 11 | 420631640 | O-Ring |
| 12 | 420232431 | Needle Pin This part replaces 420232430. |
| 13 | 420635191 | Idle Gear, 25 Teeth |
| 14 | 420245330 | Snap Ring |
| 15 | 420229302 | Location Pin 10 M6x50 This part replaces 420229301. |
| 16 | 420635660 | Idle Gear, 42 Teeth |
| 18 | 420256922 | Piston Valve This part replaces 420256921. |
| 19 | 420238220 | Compression Spring |
| 20 | 420641167 | Plug Screw M16 |
| 21 | 420220814 | Oil Pump Shaft |
| 22 | 420256935 | Oil Pump Outer Rotor |
| 23 | 420232431 | Needle Pin This part replaces 420232430. |
| 25 | 420232431 | Needle Pin This part replaces 420232430. |
| 26 | 420635220 | Oil Pump Gear, 32 Teeth |
| 27 | 420250290 | O-ring |
| 28 | 420440324 | Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 29 | 420256188 | Oil Filter |
| 30 | 420230923 | O-Ring This part replaces 420230920. |
| 31 | 420612135 | Oil Filter cover This part replaces 420210418. |
| 32 | 420440234 | Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 33 | 420440234 | Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 34 | 420230415 | Seal Washer |
| 35 | 420222680 | Water Pump Housing |
| 36 | 420630270 | Gasket |
| 37 | 420222505 | Water Impeller |
| 38 | 420620171 | Waterpump Shaft Ass'y |
| 39 | 420650315 | Oil Seal This part replaces 420650310. |
| 40 | 420827590 | Thrust Washer |
| 41 | 420232431 | Needle Pin This part replaces 420232430. |
| 42 | 420635620 | Idle Gear, 34 Teeth |
| 43 | 420245330 | Snap Ring |
| 44 | 293800060 | Loctite 243, 10 ml |
