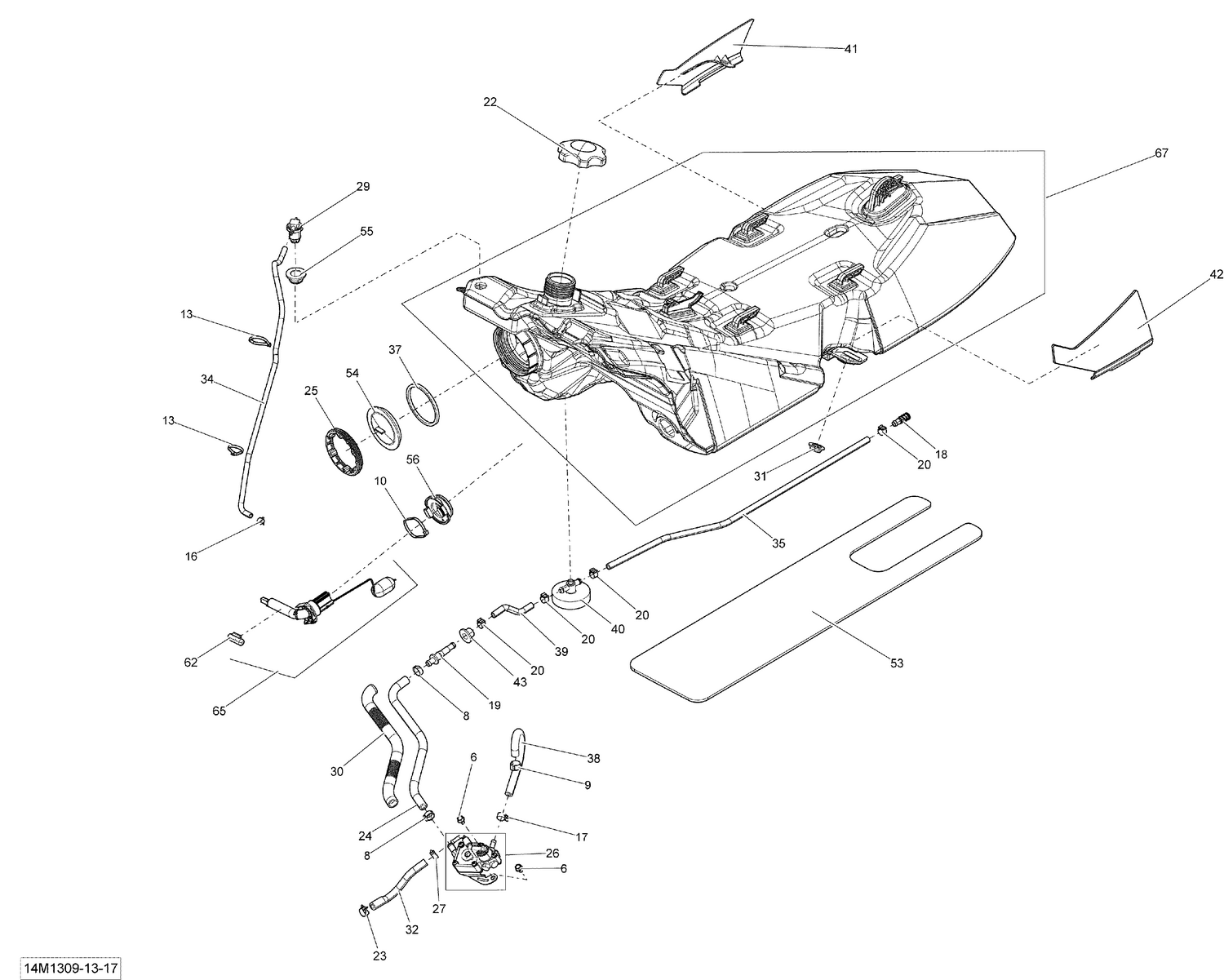

02- Fuel System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 210261040 | Hex. Flange Screw M6 X 10 |
| 8 | 293650053 | Crimp Clamp |
| 9 | 293650125 | Oetiker Clamp |
| 10 | 293750008 | Tie Wrap 368 mm |
| 13 | 414115200 | Tie-Rap 180 mm |
| 16 | 414554800 | Spring Clamp |
| 17 | 414655700 | Spring Clamp |
| 18 | 414872100 | Fuel Filter Strainer |
| 19 | 414872700 | Male Connector |
| 20 | 513033010 | Norma Spring Clamp |
| 23 | 513033029 | Universal Spring Clamp |
| 24 | 513033165 | Formed Hose |
| 25 | 513033180 | Ring |
| 26 | 513033184 | Fuel Pump |
| 27 | 414415200 | Spring Clamp |
| 29 | 513033842 | Check Valve This part replaces 513033188. |
| 30 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 31 | 513033326 | Shoulder Bushing |
| 32 | 513033327 | Formed Hose |
| 34 | 219704410 | Polyurethane Hose 10000Mm Long |
| 35 | 219704391 | Polyurethane Hose 1000mm Long This part replaces 513033332. |
| 37 | 513033334 | Gasket |
| 38 | 513033343 | Formed Hose |
| 39 | 513033352 | Formed Hose |
| 40 | 513033353 | Multi-Point Pick-Up |
| 43 | 513033435 | Grommet |
| 53 | 513033588 | Insulating Foam |
| 54 | 513033591 | Cap |
| 55 | 513033596 | Grommet |
| 56 | 513033606 | Grommet |
| 62 | 710001995 | Fuse, 0.5 Ampère |
| 65 | 513033958 | Sensor Level Fuel This part replaces 513033642. |
