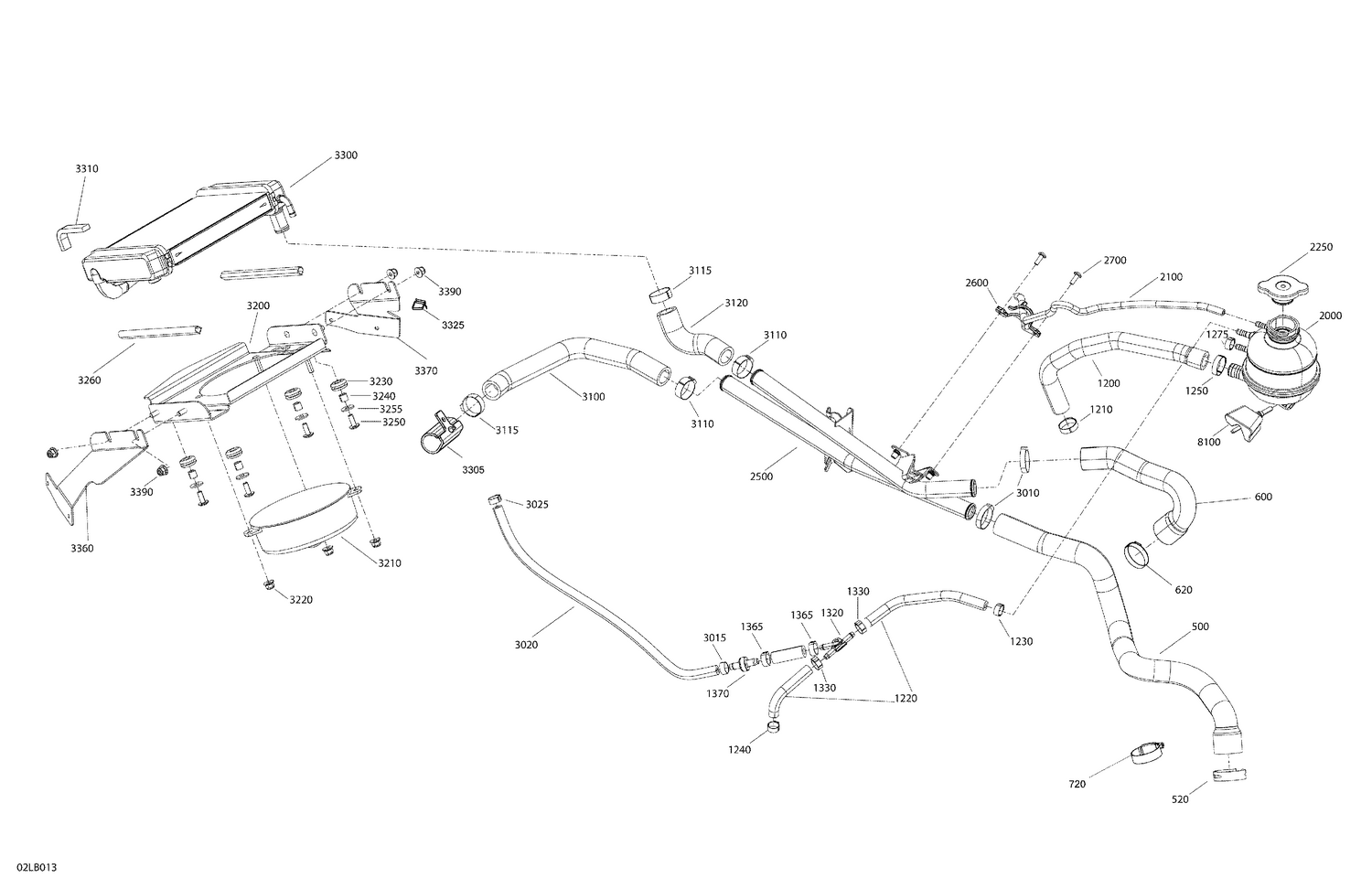

02- Engine - Cooling
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001244 | Hose |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 600 | 509001245 | Cooling Hose |
| 620 | 293650306 | Oetiker Clamp |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001158 | Cooling Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001272 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 1330 | 293650046 | Oetiker Clamp |
| 1365 | 293650140 | Oetiker Clamp |
| 1370 | 509000153 | Takaiskuventtiili |
| 2000 | 861805522 | Coolant Tank |
| 2100 | 276000048 | Polyurethane Hose 5.2 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500 | 509001170 | Water Pipe |
| 2600 | 509001049 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650141 | Oetiker Gear Clamp |
| 3015 | 293650047 | Crimp Clamp, 15.3-706R |
| 3020 | 415129508 | Bleeder Hose |
| 3025 | 293650046 | Oetiker Clamp |
| 3100 | 509001130 | Radiator Hose |
| 3110 | 293650165 | Oetiker Gear Clamp |
| 3115 | 293650099 | Oetiker Gear Clamp |
| 3120 | 509001129 | Radiator Hose |
| 3200 | 509001169 | Fan Support |
| 3210 | 509000837 | COOLING FAN |
| 3220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3230 | 709000582 | Grommet |
| 3240 | 605453745 | Bushing |
| 3250 | 250000717 | Torx Head Screw M6 X 16 |
| 3255 | 234062410 | Flat Washer 6 mm |
| 3260 | 509000824 | D- SEAL 12 X15 |
| 3300 | 509001127 | Radiator |
| 3305 | 514055925 | Bumper |
| 3310 | 517305157 | Seal Joint |
| 3325 | 414227300 | Clip |
| 3360 | 509001257 | LH Radiator Support |
| 3370 | 509001258 | RH Radiator Support |
| 3390 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
