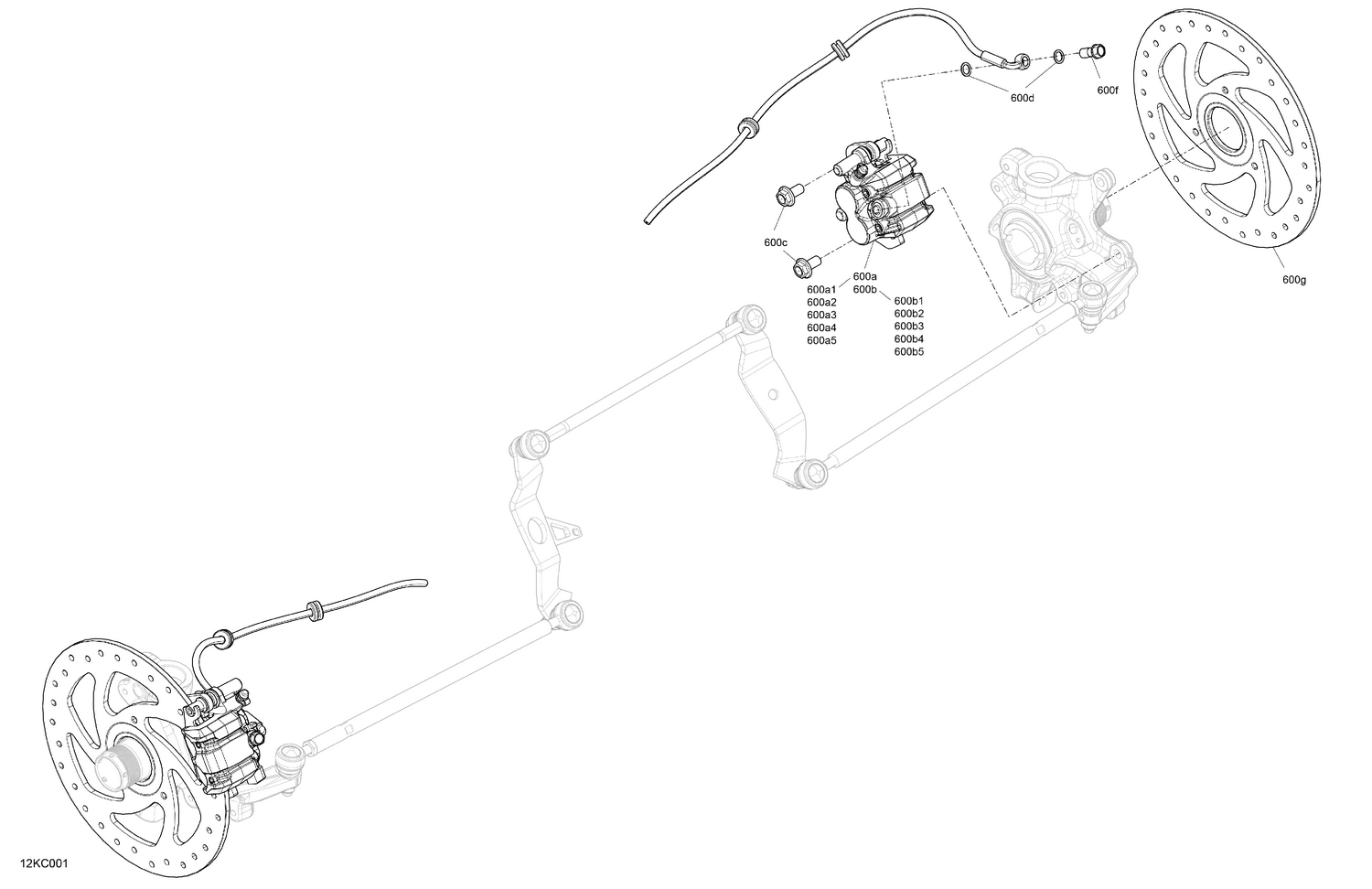

03- Mechanic - Front Brakes
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 600a1 | 715500337 | Sliding Pin Kit |
| 600a2 | 219800445 | LH Front Brake Pad Kit |
| 600a3 | 705600080 | Bleeding Screw |
| 600a4 | 219800447 | Spring-Boot and Bolt Kit |
| 600a5 | 219800489 | LH Front Brake Caliper Support |
| 600b1 | 715500337 | Sliding Pin Kit |
| 600b2 | 219800446 | RH Front Brake Pad Kit |
| 600b3 | 705600080 | Bleeding Screw |
| 600b4 | 219800447 | Spring-Boot and Bolt Kit |
| 600b5 | 219800490 | RH Front Brake Caliper Support |
| 600c | 250001134 | Hex. Flange Screw M10 X 20 |
| 600d | 705601628 | Copper Washer |
| 600f | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
