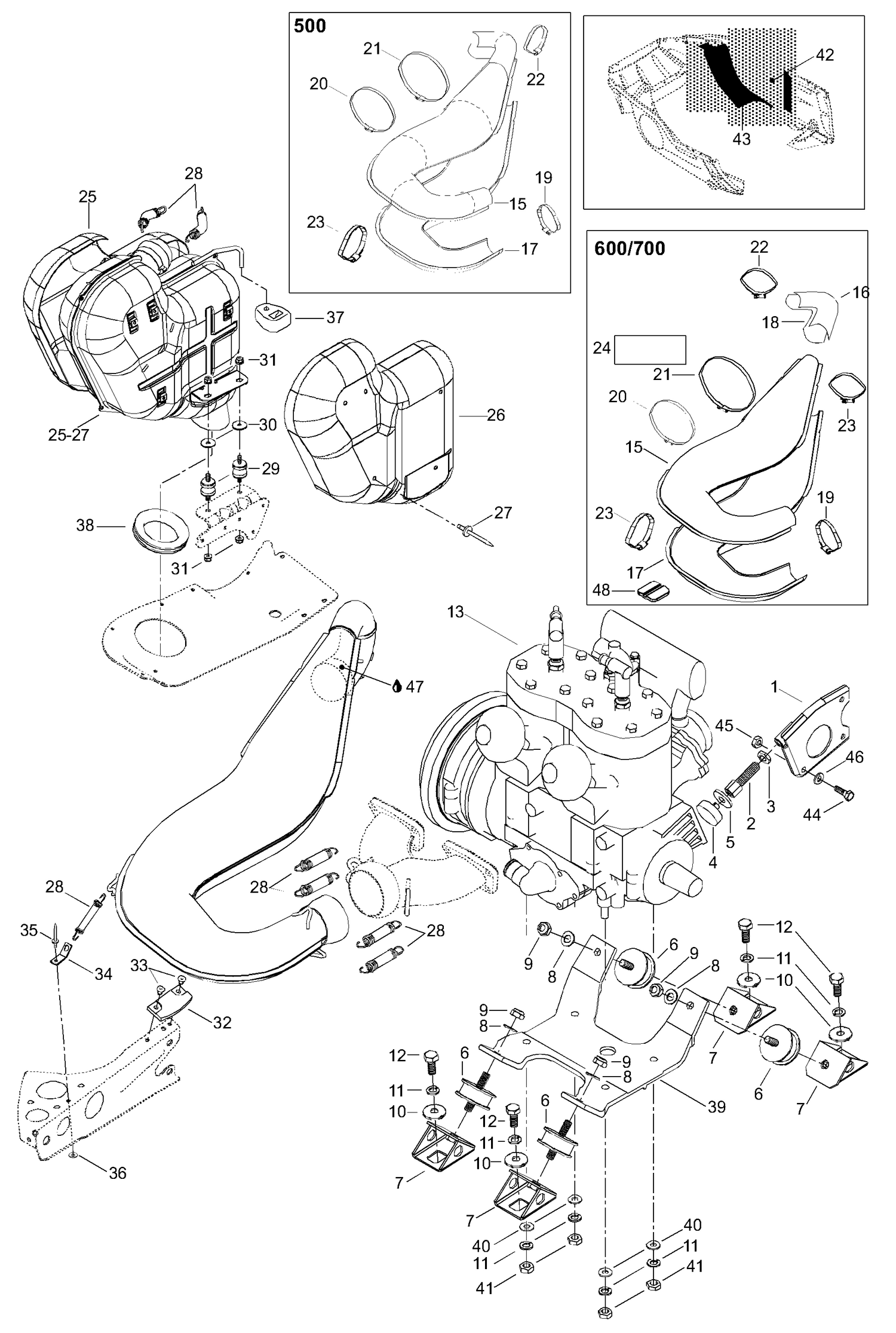

01- Engine Mount Plate/Muffler
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512058500 | Support plate |
| 2 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 3 | 33218 | Jam nut M12 |
| 4 | 512059056 | Stopper |
| 5 | 20023 | Washer |
| 6 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 512050900 | Engine support |
| 8 | 20005 | WASHER M10 - Call your local BRP dealership |
| 9 | 33012 | Nut elastic M10 |
| 10 | 512056700 | Lock washer |
| 11 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 12 | 40040 | Screw M10x25 |
| 13 | 11000058 | Engine 493 |
| 14 | 514053163 | Muffler |
| 15 | 514053182 | Upper enveloppe |
| 16 | Not | Available As Spare Part - Upper enveloppe, rear - DOES NOT APPLY TO THIS MODEL |
| 17 | 514053168 | Lower enveloppe |
| 18 | Not | Available As Spare Part - Lower enveloppe, rear - DOES NOT APPLY TO THIS MODEL |
| 19 | 514053074 | Norma gear clamp |
| 20 | 514052962 | Norma gear clamp |
| 21 | 514052735 | Norma gear clamp |
| 22 | 293650118 | Norma Clamp This part replaces 514052859. |
| 23 | 514052924 | Norma gear clamp |
| 24 | 514052716 | Isolation |
| 25 | 514053160 | R.H. heat shield |
| 26 | 514052733 | L.H. heat shield |
| 27 | 390910000 | Rivet |
| 28 | 415107100 | Spring |
| 29 | 514052994 | Mount-rubber |
| 30 | 514052891 | Isolating washer |
| 31 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 32 | 570044100 | Rubber pad |
| 33 | 36037 | Rivet |
| 34 | 5447086 | Spring bracket |
| 35 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 36 | 20008 | Washer |
| 37 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 38 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 39 | 512058000 | Engine support |
| 40 | 20105 | Washer, hardened |
| 41 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 42 | 514052718 | Isolering |
| 43 | 514052719 | Isolering |
| 44 | 40344 | Allen screw M8x25 |
| 45 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 46 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 47 | 293800090 | Loctite, 80ml This part replaces 413710300. |
