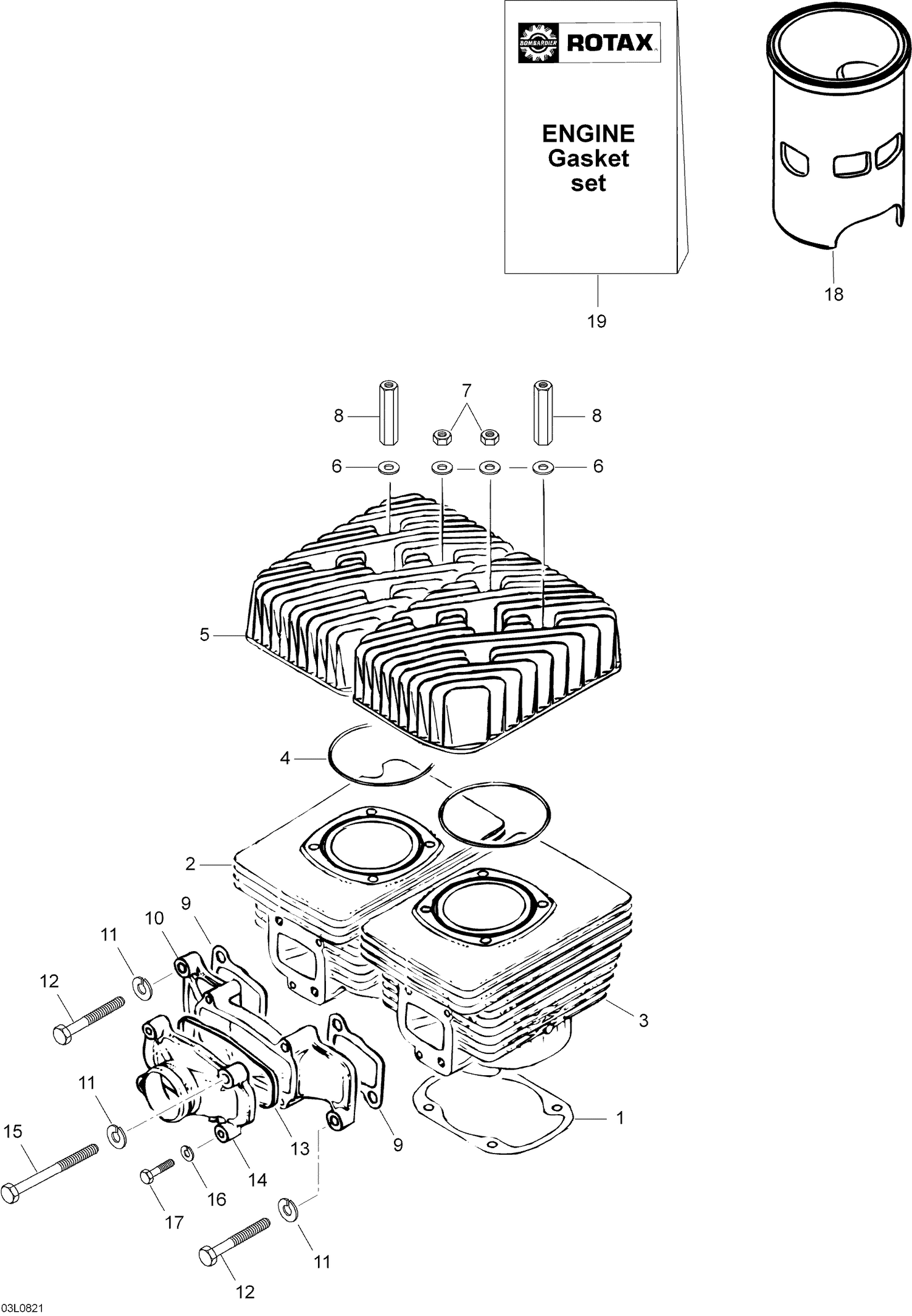

| Ref | Part Number | Description |
|---|
| 1 |
420430351 |
GASKET 0.4 - Call your local BRP dealership |
| 1 |
420931780 |
GASKET 0.3 - Call your local BRP dealership |
| 1 |
420931782 |
GASKET 0.6 - Call your local BRP dealership |
| 2 |
420923791 |
CYLINDER WITH SLEEVE PTO SIDE - Call your local BRP dealership |
| 3 |
420923796 |
Cylinder, mag. sida |
| 4 |
420931380 |
O-Ring |
| 5 |
420923377 |
CYLINDER HEAD - Call your local BRP dealership |
| 6 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 7 |
232081414 |
Hex. Nut M8 |
| 8 |
420842208 |
DISTANCE NUT M8 X 51 - Call your local BRP dealership |
| 9 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866. |
| 10 |
420867435 |
Insugsrör |
| 11 |
20014 |
Fjäderbricka |
| 12 |
207083544 |
Hex. Screw M8 X 35 |
| 13 |
420850190 |
RUBBER RING - Call your local BRP dealership |
| 14 |
420867442 |
Lock |
| 15 |
420841201 |
Skruv M8 x 70 |
| 16 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 17 |
207162544 |
Skruv M6 x 25 |
| 18 |
420923533 |
SLEEVE-CYLINDE - Call your local BRP dealership |
| 19 |
420994232 |
GASKET SET, ENGINE - Call your local BRP dealership |
