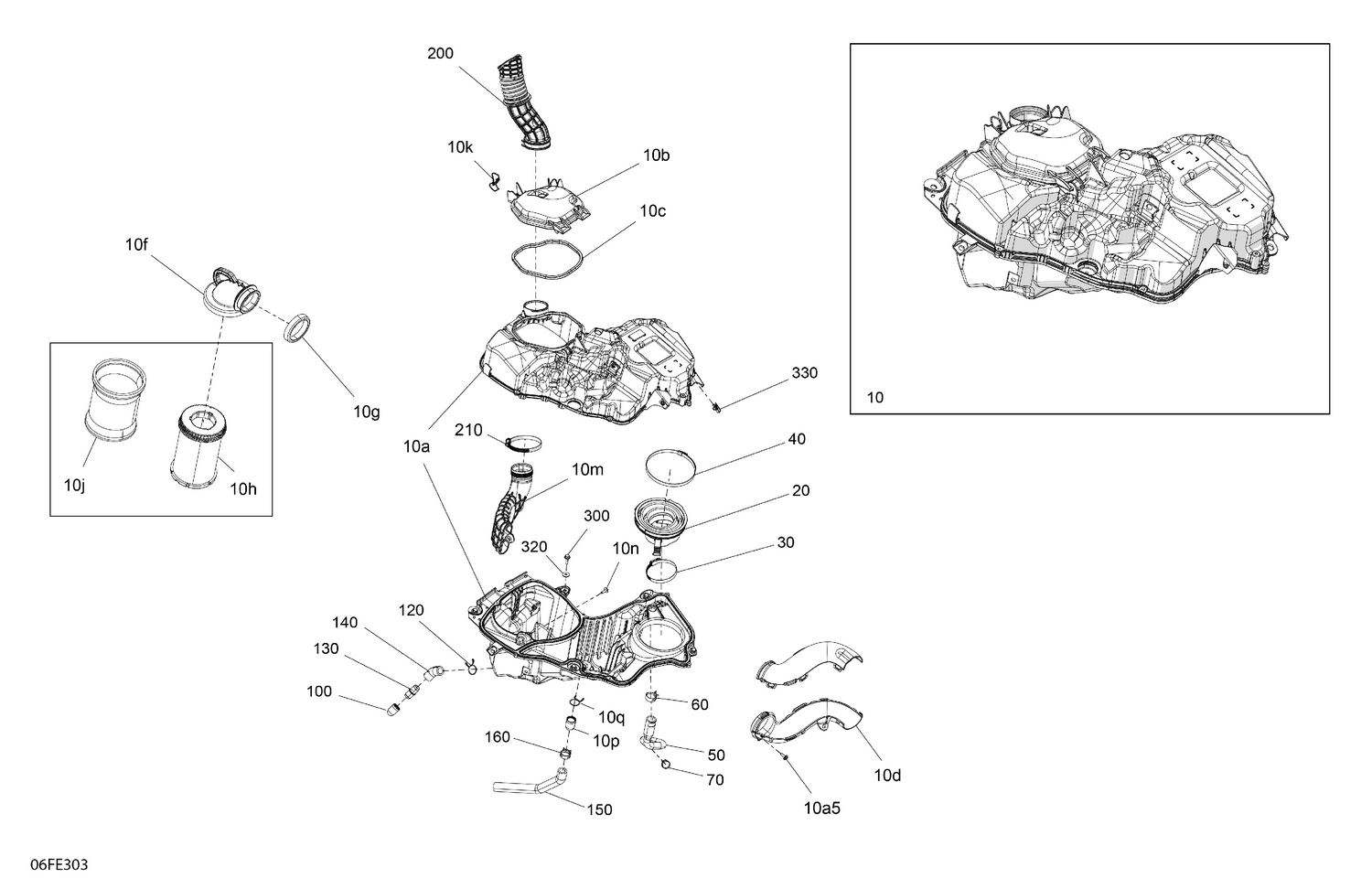

02- Engine - Air Intake
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707801186 | Not Available As Spare Parts - Intake Silencer Ass'y |
| 10a5 | 250000959 | Screw PT Type K-50 X 16 |
| 10b | 707801087 | Access Cover |
| 10c | 293250630 | Neoprene Seal |
| 10d | 293250698 | Gasket |
| 10f | 707801092 | Rigid Adapter |
| 10g | 707801088 | Gasket |
| 10j | 707800887 | Prefilter |
| 10k | 293730117 | Latch |
| 10m | 707801086 | Secondary Tube |
| 10n | 250000959 | Screw PT Type K-50 X 16 |
| 10p | 293000135 | Cap |
| 10q | 707801043 | Spring Clamp |
| 20 | 707801094 | Intake Boot |
| 30 | 293650091 | Norma Clamp |
| 40 | 514052861 | Gear Clamp (Norma) |
| 50 | 707801089 | Crankcase Hose |
| 60 | 293650213 | Norma Spring Clamp |
| 70 | 293650030 | Oetiker Clamp |
| 100 | 293000135 | Cap |
| 120 | 707801043 | Spring Clamp |
| 130 | 270001073 | Straight Fitting |
| 140 | 707801099 | Secondary Drain Hose |
| 150 | 707801100 | Primary Drain Hose |
| 160 | 293650109 | Norma Spring Clamp |
| 200 | 707801091 | Intake Duct |
| 210 | 293650118 | Norma Gear Clamp |
| 300 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 320 | 234062410 | Flat Washer 6 mm |
