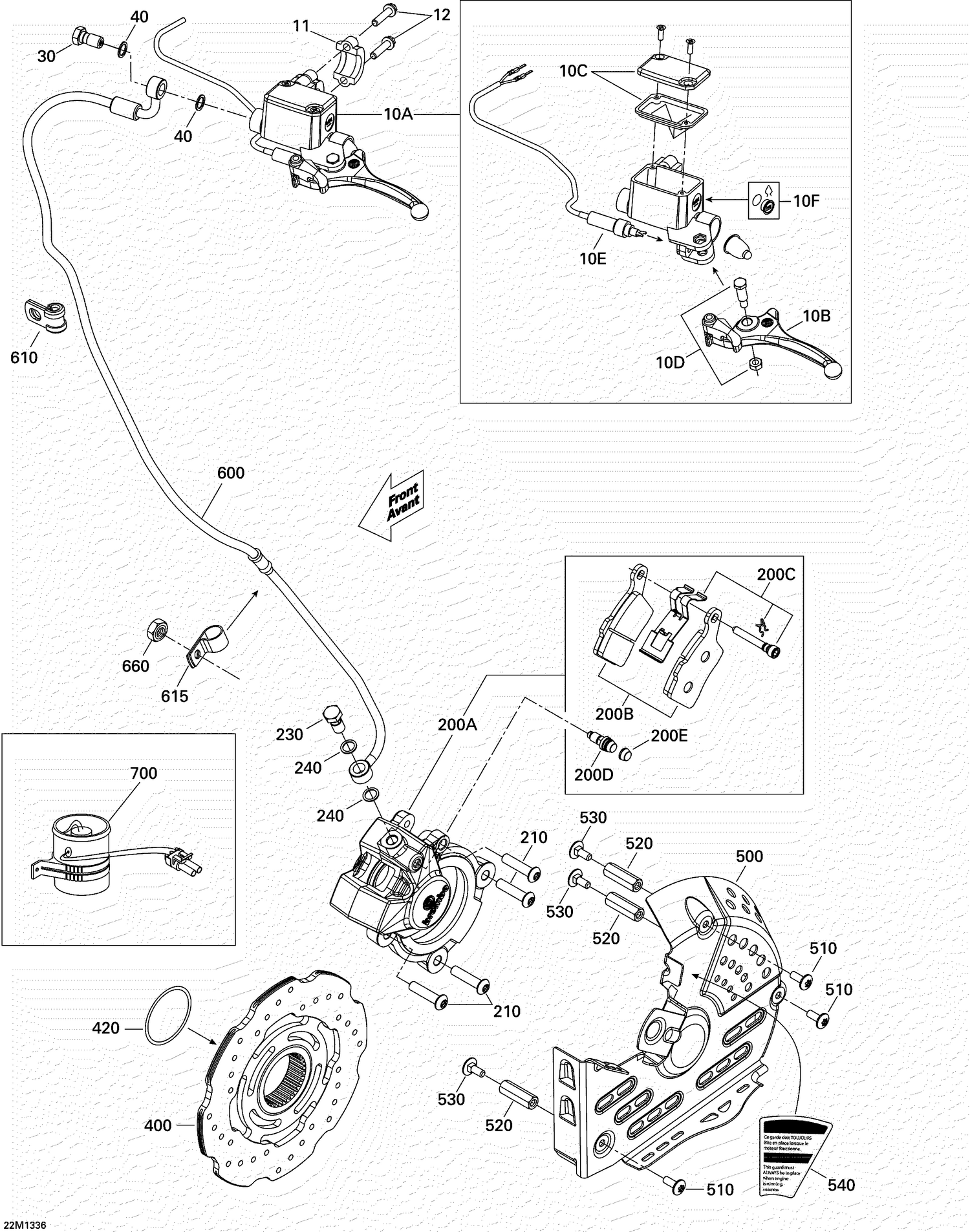

06- Hydraulic Brakes
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10B | 507032428 | LEVER - Call your local BRP dealership |
| 10C | 415029900 | Cap |
| 10D | 415030000 | Pin Ass'y |
| 10E | 507032526 | Microswitch |
| 10F | 414990600 | WINDOW - Call your local BRP dealership |
| 11 | 507032477 | Clamp And Screw Kit |
| 12 | 250000447 | Hex. Flange Screw M6 X 25 |
| 30 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 40 | 705601628 | Copper Washer This part replaces 705600310. |
| 200B | 507032489 | Brake Pads Kit |
| 200C | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 200D | 507032475 | Bleeder |
| 200E | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 210 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 230 | 507032551 | Banjo Bolt This part replaces 507032539. |
| 240 | 705601628 | Copper Washer This part replaces 705600310. |
| 400 | 507032513 | Disk |
| 420 | 293300134 | O-Ring |
| 500 | 507032531 | DISK PROTECTOR, ALUMINUM - Call your local BRP dealership |
| 510 | 250000223 | Torx Screw M6 X 16 |
| 520 | 507032533 | THREADED TUBE - Call your local BRP dealership |
| 530 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 540 | 516005525 | Warning Decal |
| 600 | 507032528 | Hose |
| 610 | 293650256 | Clamp This part replaces 705600459. |
| 615 | 518321570 | Open Clamp |
| 660 | 232561414 | Elastic Stop Nut M6 |
