Parts Catalog

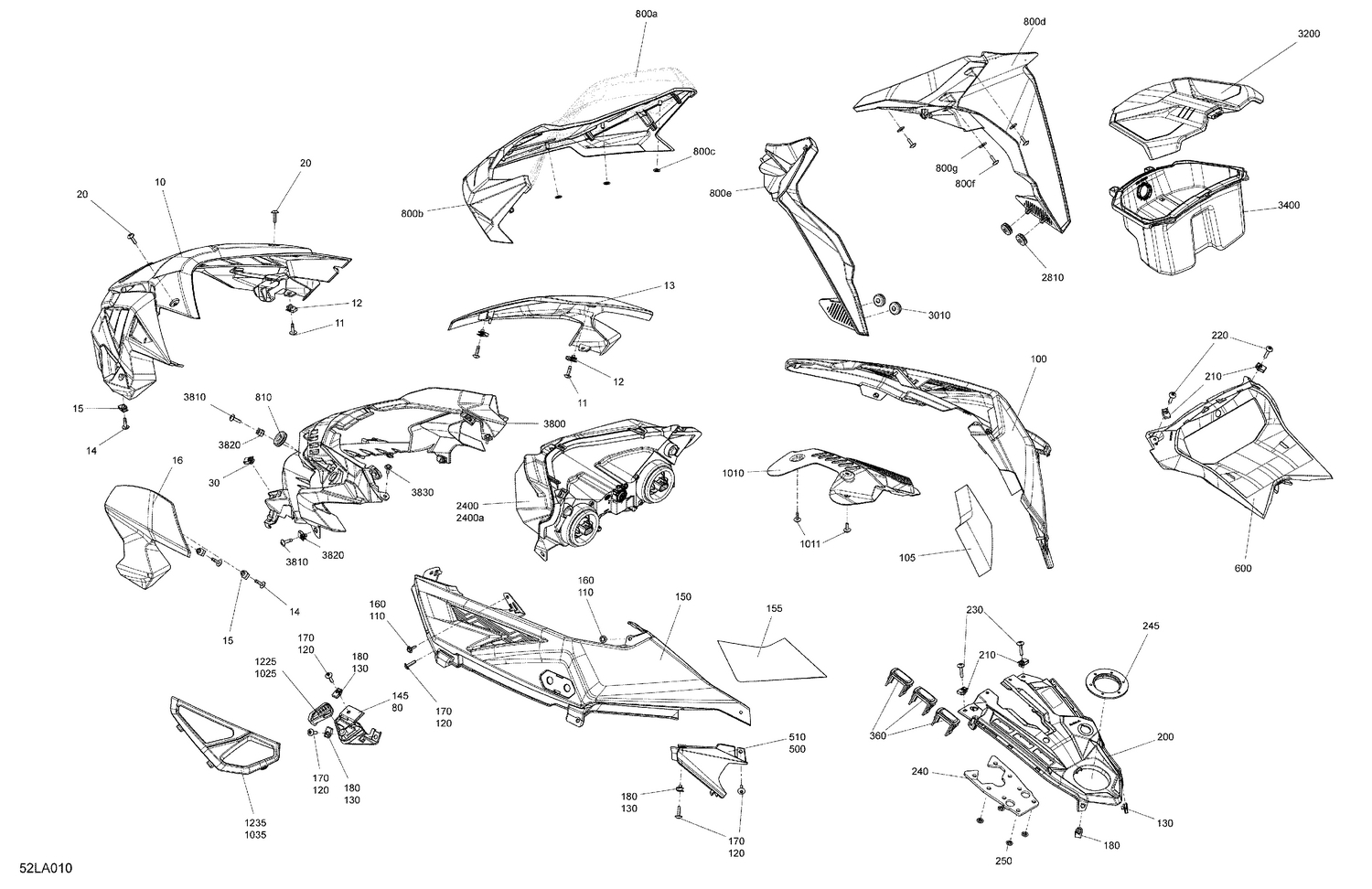

07- Body - Hood Section and WindShield

Parts (54)

Ref	Part Number	Description
10	517306115	Middle Hood
11	250000528	Torx Screw M5 X 20
12	250000958	Panel Nut M5 X 0.8
13	517307495	RH Front Hood
14	250000528	Torx Screw M5 X 20
15	250000958	Panel Nut M5 X 0.8
16	517307496	LH Front Hood
20	250000528	Torx Screw M5 X 20
30	250000958	Panel Nut M5 X 0.8
80	517306450	RH Knob Part
100	517307222	RH Upper Side Panel
105	517308487	RH Upper Side Panel Foam This part replaces 517306695.
110	250000725	Screw M4 X 16
120	250000528	Torx Screw M5 X 20
130	250000958	Panel Nut M5 X 0.8
145	517306451	LH Knob Part
150	517306069	LH Upper Side Panel
155	517308488	LH Upper Side Panel Foam This part replaces 517306696.
160	250000725	Screw M4 X 16
170	250000528	Torx Screw M5 X 20
180	250000958	Panel Nut M5 X 0.8
200	517307341	Rear Console
210	250000958	Panel Nut M5 X 0.8
220	250000587	Torx Screw M5 X 26
230	250000587	Torx Screw M5 X 26
240	517306398	Foam Console
245	517304518	Console Nut
250	732610072	Push Nut
360	517306808	Switch Hole Cap
500	517306918	RH Cover Plate
510	517306919	LH Cover Plate
600	517307441	Gauge Support
800a	517306062	Windshield
800b	517306183	Deep Black, Windshield Support
800c	732610072	Push Nut
800d	517306895	RH Upper Air Deflector
800e	517306894	LH Upper Air Deflector
800f	250000889	Screw M4 X 16
800g	250200024	Rubber Washer 5 mm
810	517303756	Grommet
1010	517306991	Grill
1011	250000725	Screw M4 X 16
1025	517305773	RH Rear Latch
1035	517307499	RH Trim
1225	517305774	LH Rear Latch
1235	517307500	LH Trim
2400a	415130081	Bulb
2810	517307161	Grommet
3010	517307161	Grommet
3200	517307562	Cover Ass'y
3400	517306058	Trunk Ass'y
3800	517306824	Black, Head Lamp Bezel
3810	250000528	Torx Screw M5 X 20
3820	250000958	Panel Nut M5 X 0.8
