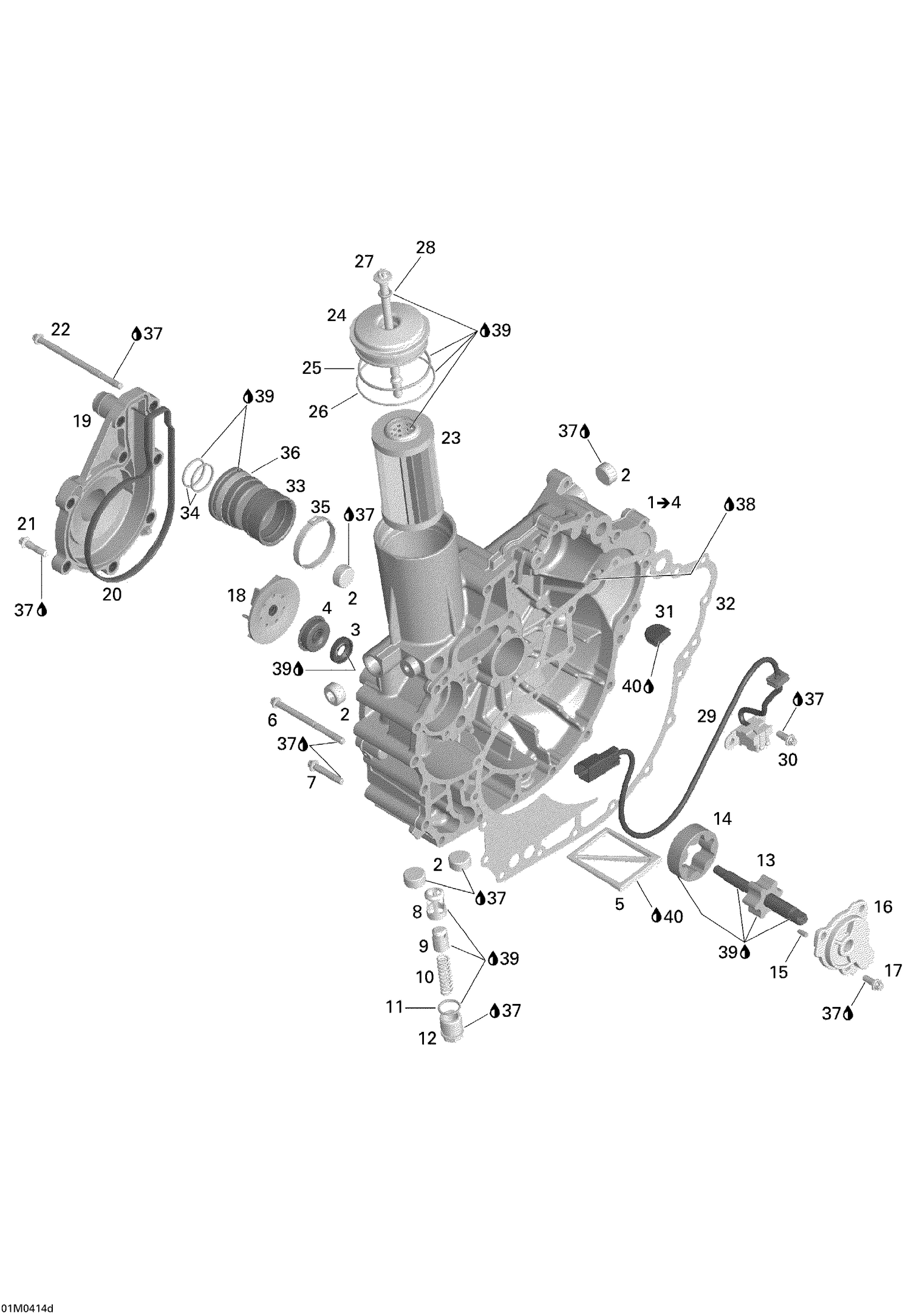

01- Clutch Cover, Magneto Generator
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420641317 | Plug Screw M20 X 1.5 This part replaces 420641313. |
| 3 | 420650315 | Oil Seal This part replaces 420650310. |
| 4 | 420650371 | Rotary Seal This part replaces 420650370. |
| 5 | 420956950 | Oil Sieve |
| 6 | 420641228 | Torx Flange Screw M6 X 85 |
| 7 | 420641258 | Torx Flange Screw M6 X 35 |
| 8 | 420256606 | Valve Seat Sleeve This part replaces 420256605. |
| 9 | 420256638 | Piston Valve This part replaces 420256630. |
| 10 | 420939211 | Compression Spring This part replaces 420939210. |
| 11 | 420230890 | O-Ring |
| 12 | 420641052 | Plug Screw M20 X 1.5 This part replaces 420641051. |
| 13 | 420837472 | Pump Shaft Ass'y |
| 14 | 420956675 | Oil Pump Rotor 16 mm |
| 15 | 420929070 | Needle Pin |
| 16 | 420811591 | Oil Pump Cover This part replaces 420811590. |
| 17 | 420641048 | Torx Flange Screw M6 X 16 |
| 18 | 420922801 | Impeller |
| 19 | 420822140 | Water Pump Housing |
| 20 | 420950840 | Water Pump Housing Gasket |
| 21 | 420641238 | Torx Flange Screw M6 X 25 |
| 22 | 420641338 | Torx Flange Screw M6 X 105 |
| 23 | 420956741 | Oil Filter |
| 24 | 420610326 | OIL FILTER COVER - Call your local BRP dealership |
| 25 | 420230923 | O-Ring This part replaces 420230920. |
| 26 | 420850500 | O-Ring |
| 27 | 295501207 | Oil Filter Screw Kit This part replaces 420641105. |
| 28 | 420950860 | O-Ring |
| 29 | 420664140 | CRANKSHAFT SENSOR - Call your local BRP dealership |
| 30 | 420641048 | Torx Flange Screw M6 X 16 |
| 31 | 420660930 | Rubber Plug |
| 32 | 420931130 | Timing Drive Cover Gasket (1603 NA) |
| 34 | 420631612 | O-Ring This part replaces 420631610. |
| 35 | 420851653 | Gear Clamp |
| 36 | 420853023 | Gear Clamp 46.8-50.0MM |
| 37 | 293800060 | Loctite 243, 10 ml |
| 38 | 293550030 | Grease, Super Lube |
| 39 | 293600054 | Synth Oil 4T 12x1 |
