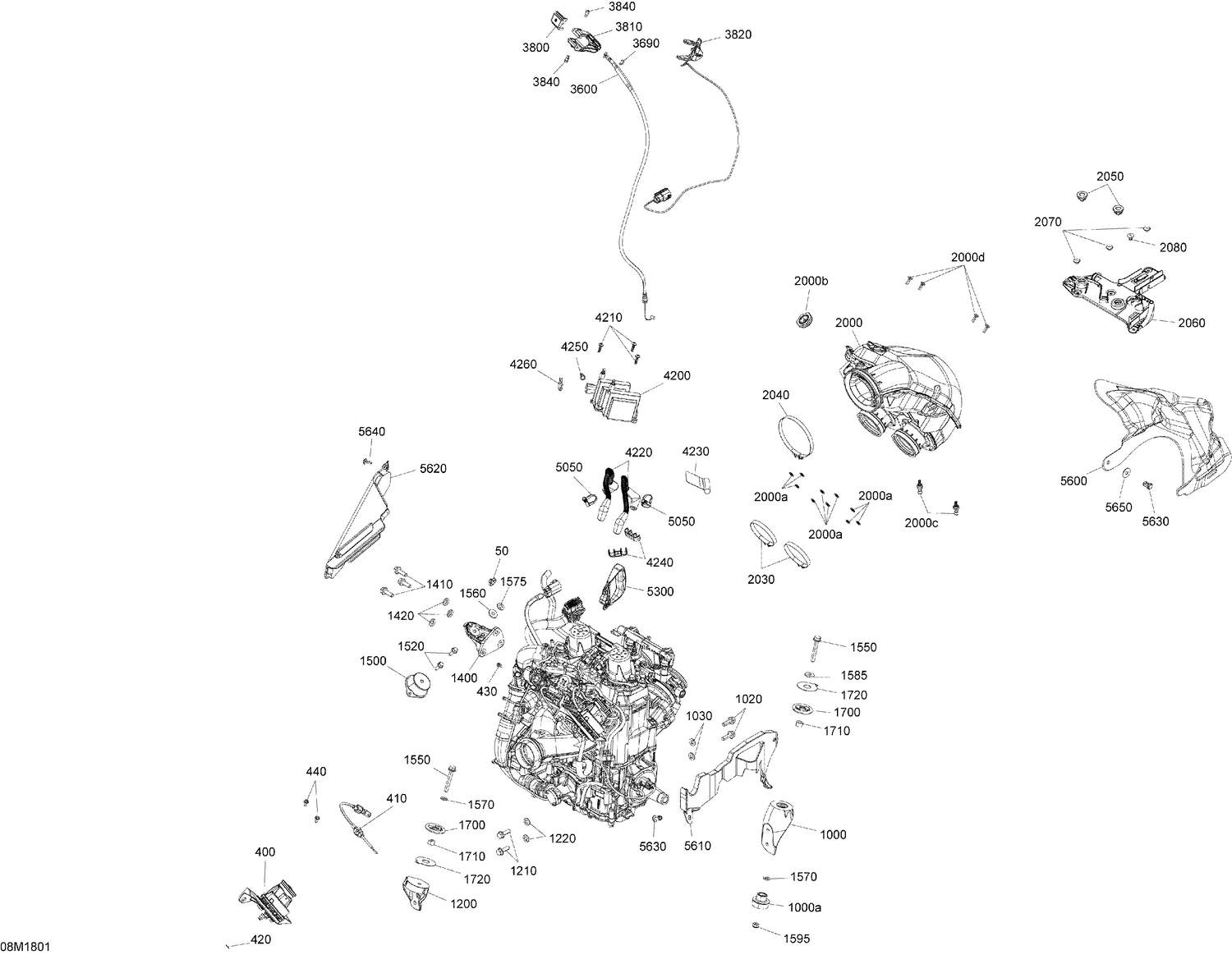

01- Engine Summit - 850 E-TEC
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 414115200 | Tie-Rap 180 mm |
| 410 | 420997033 | Bowden Cable Ass'y This part replaces 420997033. |
| 420 | 293370122 | Circlip |
| 430 | 205551060 | Socket Head Screw M5 X 10 |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000a | 512061516 | Vibration Damper This part replaces 512060295. |
| 1020 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061025 | Front PTO Support |
| 1210 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061027 | MAG Support |
| 1410 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512060729 | Rubber Mount |
| 1520 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 250200146 | Conical Spring Washer M8 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 1710 | 512061198 | Spacer |
| 1720 | 512061300 | Spacer This part replaces 512061282. |
| 2000a | 732610072 | Push Nut |
| 2000b | 512061083 | Rubber |
| 2000c | 420441840 | Screw |
| 2030 | 293650212 | GEMI Clamp |
| 2040 | 293650247 | Gemi Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150103 | Pop Rivet 3/16" |
| 2080 | 293150104 | Pop Rivet 3/16" |
| 3600 | 512061224 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061266 | Throttle Ass'y |
| 3840 | 732601143 | Flange Screw |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 4220 | 512061166 | Ignition Cable |
| 4230 | 516007661 | Warning Decal, Injectors |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4250 | 293750001 | Tie Wrap 94 mm |
| 4260 | 293750001 | Tie Wrap 94 mm |
| 5050 | 512060993 | Clamp |
| 5600 | 512061305 | LH Acoustic Cover This part replaces 512061213. |
| 5610 | 512061215 | LH Acoustic Cover |
| 5620 | 512061216 | RH Acoustic Cover |
| 5630 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5640 | 250000725 | Screw M4 X 16 |
