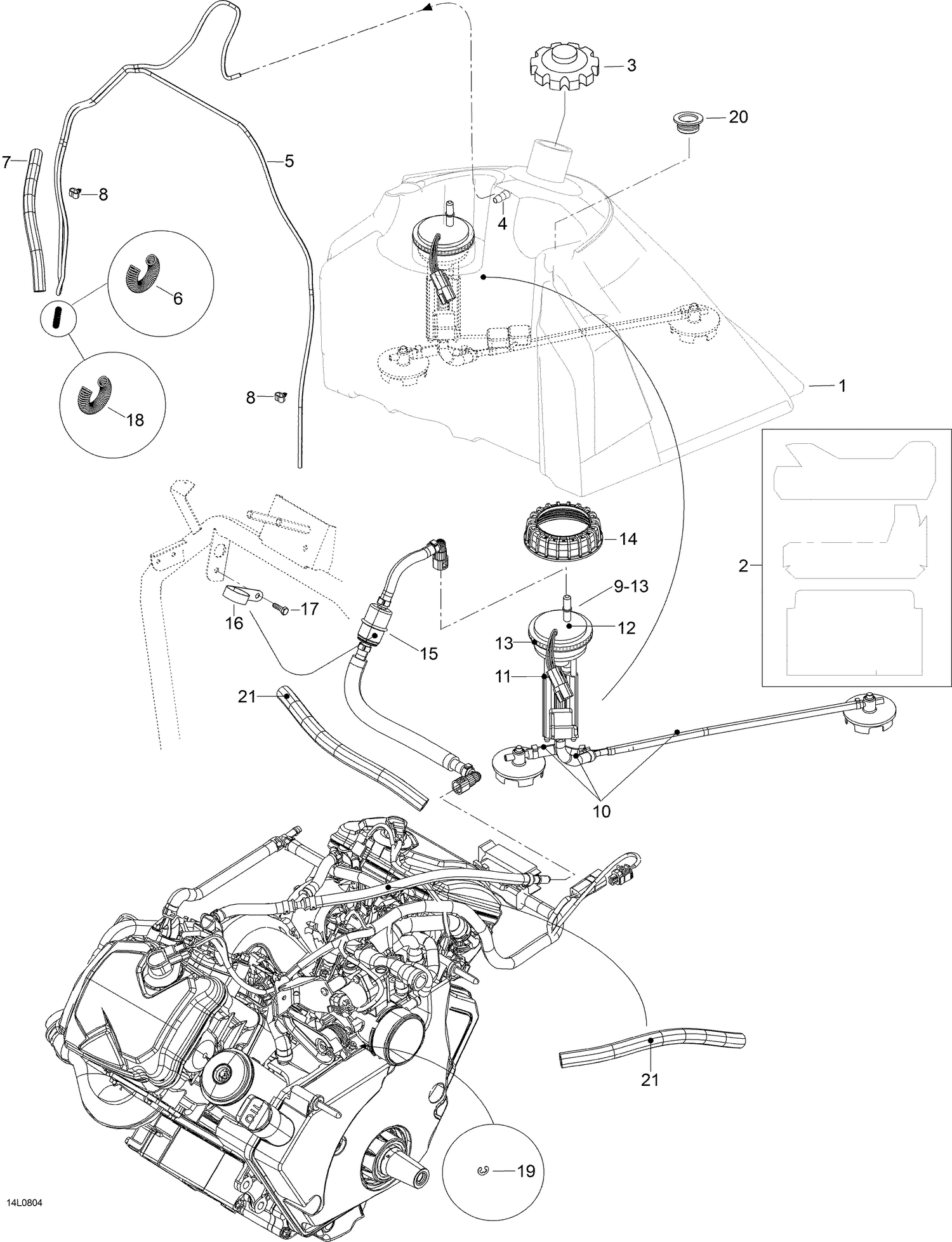

| Ref | Part Number | Description |
|---|
| 1 |
605153637 |
FUEL TANK - Call your local BRP dealership |
| 2 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership |
| 3 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 4 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 5 |
M39035 |
HOSE - Call your local BRP dealership |
| 6 |
M25006 |
SPRING - Call your local BRP dealership |
| 7 |
605639067 |
Aluminium Tubing |
| 8 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 10 |
19183 |
Fuel hose kit - Call your local BRP dealership This part replaces M19183. |
| 11 |
861302600 |
PUMP HOSE KIT - Call your local BRP dealership |
| 12 |
861302100 |
REGULATOR KIT - Call your local BRP dealership |
| 13 |
513033039 |
SEAL - Call your local BRP dealership |
| 14 |
513033040 |
Nut, Fuel Pump Module |
| 15 |
513033106 |
Fuel Filter |
| 16 |
513033047 |
Open Clamp |
| 17 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 18 |
M25003 |
SPRING - Call your local BRP dealership |
| 19 |
414753500 |
Circlip This part replaces M31035. |
| 20 |
293720058 |
Grommet |
