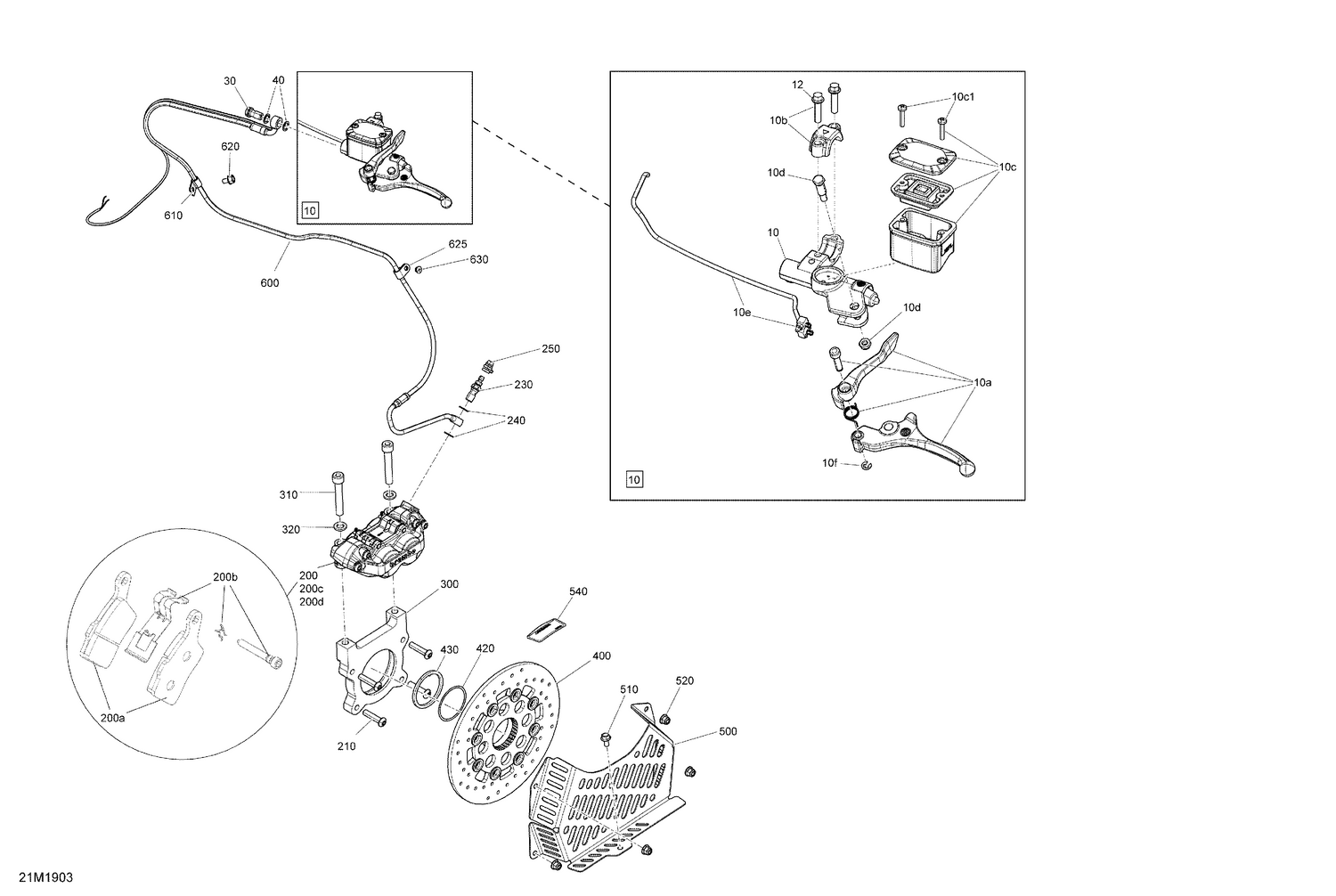

06- Brakes - 600 Racing
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032476 | Lever With Parking Lock |
| 10b | 507032477 | Clamp And Screw Kit |
| 10c1 | 415129356 | Screw M4 X 20 |
| 10d | 415030000 | Pin Ass'y |
| 10e | 507032601 | Microswitch |
| 10f | 414439000 | Circlip |
| 12 | 250000447 | Hex. Flange Screw M6 X 25 |
| 30 | 507032551 | Banjo Bolt |
| 40 | 705601628 | Copper Washer |
| 200a | 507032615 | Brake Pads Kit |
| 200b | 507032616 | Pin & Spring Kit |
| 210 | 250000971 | Screw-torx Button Head M8 X 35 |
| 230 | 705601201 | Banjo Bolt/ Bleeder |
| 240 | 705601628 | Copper Washer |
| 250 | 705601190 | Bleeder Bolt Cap |
| 300 | 507032647 | Brake Caliper Support |
| 310 | 244006060 | Socket Screw M10 X 60 |
| 320 | 503192496 | Washer |
| 400 | 507032740 | Disc Brake Ass'y This part replaces 507032643. |
| 420 | 293300134 | O-Ring |
| 430 | 507032612 | Spacer |
| 500 | 507032646 | Disc Brake Guard |
| 510 | 207661254 | Hex. Flange Screw M6 X 12 |
| 520 | 233261466 | Hex. Flange Elastic Nut M6 |
| 540 | 516007652 | Engine Guard Warning Decal |
| 600 | 507032649 | Brake Hose |
| 610 | 414108400 | Open Clamp |
| 620 | 210261040 | Hex. Flange Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
