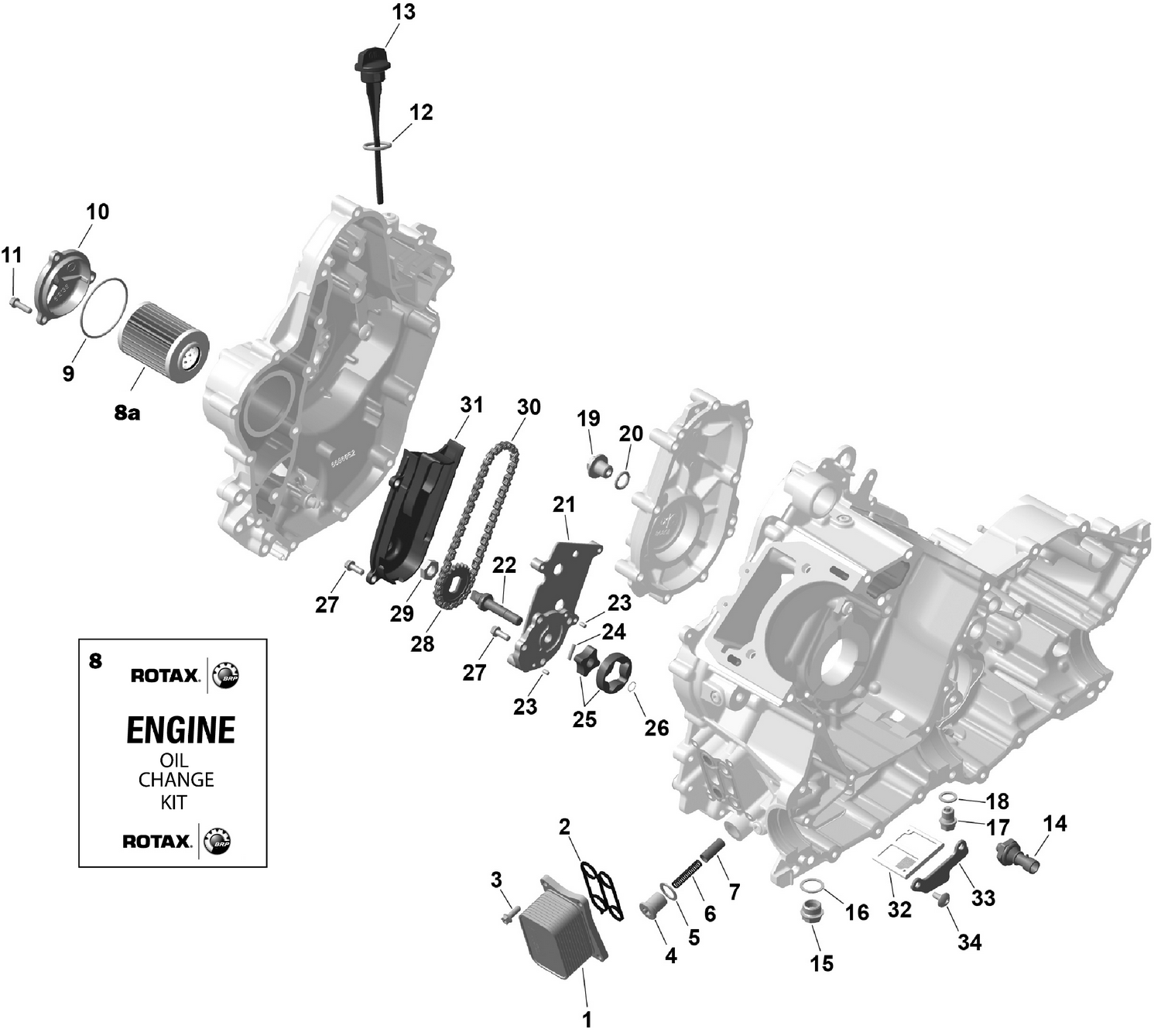

01- ROTAX - Engine Lubrication
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420890181 | Radiator |
| 3 | 420440164 | Torx Flange Screw M6 X 16 |
| 4 | 420441373 | Plug Screw |
| 6 | 420239445 | Spring |
| 7 | 420256593 | Pressure Regulating Piston |
| 8 | 9779488 | Can-Am Oil Change Kit 5W40 500 CC + |
| 8a | 420256188 | Oil Filter |
| 10 | 420612135 | Oil Filter cover |
| 11 | 420440207 | Torx Flange Screw M6 X 20 |
| 13 | 420256823 | Oil Lever Tube |
| 14 | 420256915 | Oil Pressure Switch |
| 15 | 420841935 | Plug Screw M18 X 1.5 |
| 17 | 420241787 | Magnetic Drain Plug M12 |
| 19 | 420241662 | Plug Screw M14 X 1.5 |
| 21 | 420210655 | Oil Pump Cover |
| 22 | 420220862 | Oil Pump Shaft |
| 23 | 420929075 | Needle Pin |
| 24 | 420232732 | Needle Pin |
| 25 | 420256355 | Oil Pump Rotor Set |
| 26 | 420245100 | Retaining Ring |
| 27 | 420440164 | Torx Flange Screw M6 X 16 |
| 28 | 420234092 | Drive Gear, 23 Teeth |
| 29 | 420642059 | Hexagonal Nut M12 X 1 |
| 30 | 420297056 | Silent Chain |
| 31 | 420236094 | Chain Guide |
| 32 | 420256585 | Oil Sieve |
| 33 | 420612073 | Sieve Cover |
