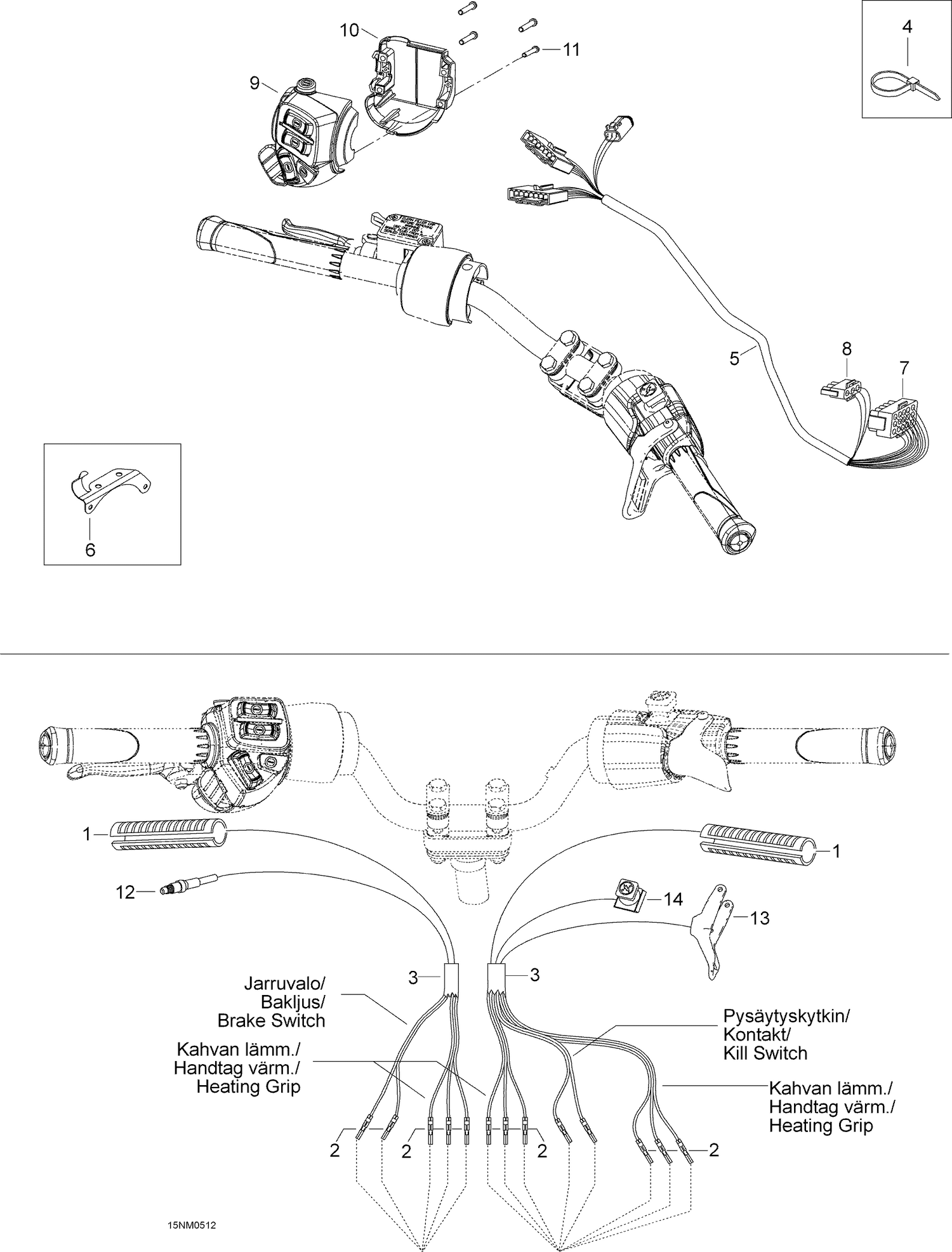

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 2 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 3 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 4 |
27010 |
Nippuside 98 mm |
| 4 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 6 |
515175254 |
Cable support |
| 7 |
42617 |
Male connector housing (15 circuit) |
| 8 |
42271 |
Male connector housing (3 circuit) |
| 9 |
515176015 |
LH SWITCH HOUSING - Call your local BRP dealership |
| 10 |
515175926 |
Cover |
| 11 |
40903 |
Plastofast-screw 3.5 x 25 |
| 12 |
507032366 |
Microswitch ass'y |
| 13 |
512059481 |
Throttle Handle This part replaces 512059107. |
