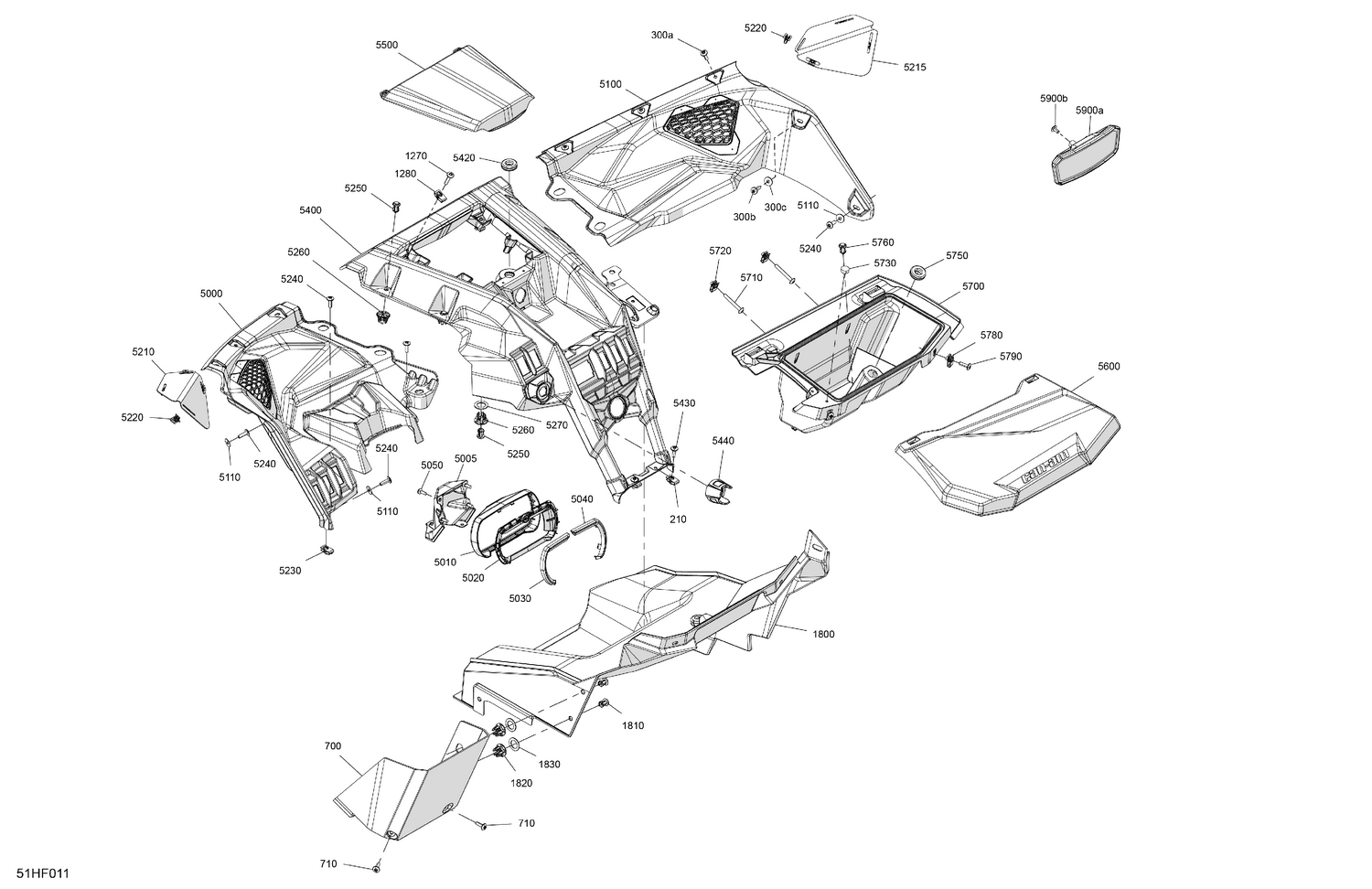

07- Cab Interior - Dashboard
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 210 | 250100198 | Panel Nut M6 X 1.0 |
| 300a | 250000722 | Torx Screw M6 X 20 |
| 300b | 250000712 | Torx Screw M6 X 20 |
| 700 | 707900473 | Cover Central Console |
| 710 | 250000722 | Torx Screw M6 X 20 |
| 1270 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 1280 | 250100198 | Panel Nut M6 X 1.0 |
| 1800 | 707901064 | RH Lower Dashboard |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 1820 | 707900133 | Insert |
| 1830 | 503189273 | Washer |
| 5000 | 715006587 | LH Dashboard Kit |
| 5005 | 709402140 | Cluster Support |
| 5010 | 709402092 | Rear Cluster Cap |
| 5020 | 709402742 | Gauge Trim |
| 5030 | 709402210 | Deep Black, LH Trim Gauge |
| 5040 | 709402211 | Deep Black, RH Trim Gauge |
| 5050 | 250000720 | Torx Screw K50 X 16 |
| 5100 | 707900698 | RH Dashboard |
| 5110 | 234062670 | Stainless Steel Flat Washer |
| 5210 | 707900465 | LH Speaker Cover |
| 5215 | 707900590 | RH Speaker Cover |
| 5220 | 517302785 | Edge Clip |
| 5230 | 250100198 | Panel Nut M6 X 1.0 |
| 5240 | 250000722 | Torx Screw M6 X 20 |
| 5250 | 293150230 | Tuflok Plastic Rivet |
| 5260 | 707900133 | Insert |
| 5270 | 503189273 | Washer |
| 5400 | 707901065 | Central Dashboard |
| 5420 | 517303756 | Grommet |
| 5430 | 250000722 | Torx Screw M6 X 20 |
| 5440 | 707900598 | Key Protector |
| 5500 | 707900400 | Dash Cover |
| 5600 | 707900734 | Box Cover This part replaces 707900734. |
| 5700 | 707900350 | Glove Box |
| 5710 | 250000868 | Torx Truss M6 X 50 |
| 5720 | 250100198 | Panel Nut M6 X 1.0 |
| 5730 | 708003866 | Seat Stopper |
| 5750 | 517303756 | Grommet |
| 5760 | 293150230 | Tuflok Plastic Rivet |
| 5780 | 250100198 | Panel Nut M6 X 1.0 |
| 5790 | 250000722 | Torx Screw M6 X 20 |
| 5900a | 707900502 | Central Mirror |
| 5900b | 250000767 | Torx Truss Screw M6 X 12 |
