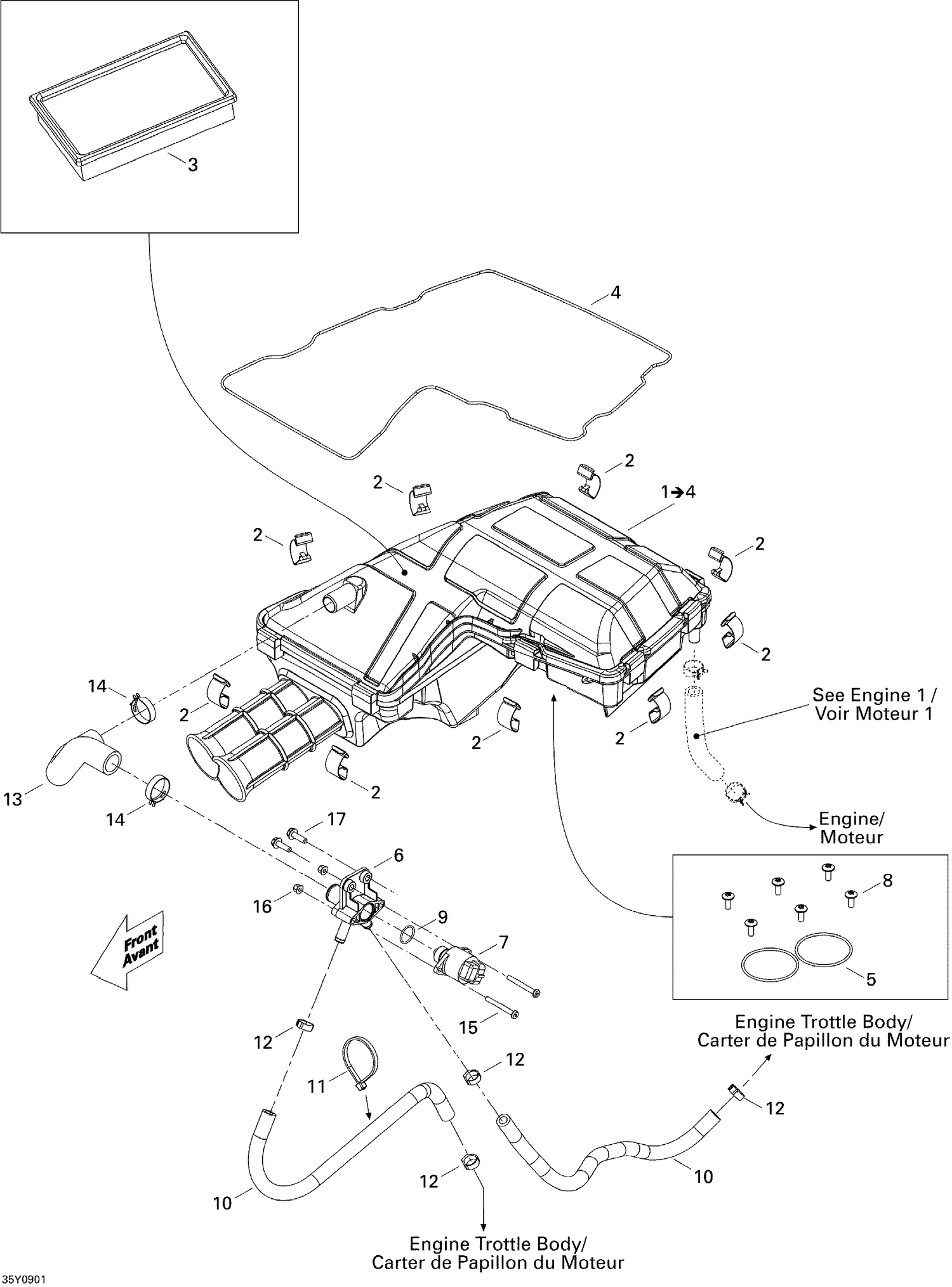

| Ref | Part Number | Description |
|---|
| 2 |
707800259 |
COVER BRACKET - Call your local BRP dealership |
| 3 |
707800188 |
Air Filter |
| 4 |
707800491 |
GASKET - Call your local BRP dealership This part replaces 707800462. |
| 5 |
707800198 |
O RING - Call your local BRP dealership |
| 6 |
707800207 |
FITTING - Call your local BRP dealership |
| 7 |
707800203 |
IDLE VALVE - Call your local BRP dealership |
| 8 |
250000223 |
Torx Screw M6 X 16 |
| 9 |
293300079 |
O-Ring |
| 10 |
709000022 |
HOSE 9.5 MM, METER - Call your local BRP dealership |
| 11 |
293750002 |
Tie Wrap 142 mm |
| 12 |
293650030 |
Oetiker Clamp |
| 13 |
707800253 |
FORMED HOSE - Call your local BRP dealership |
| 14 |
707800255 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 15 |
205454536 |
SOCKET HEAD SCREW M5 X 45 - Call your local BRP dealership |
| 16 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
