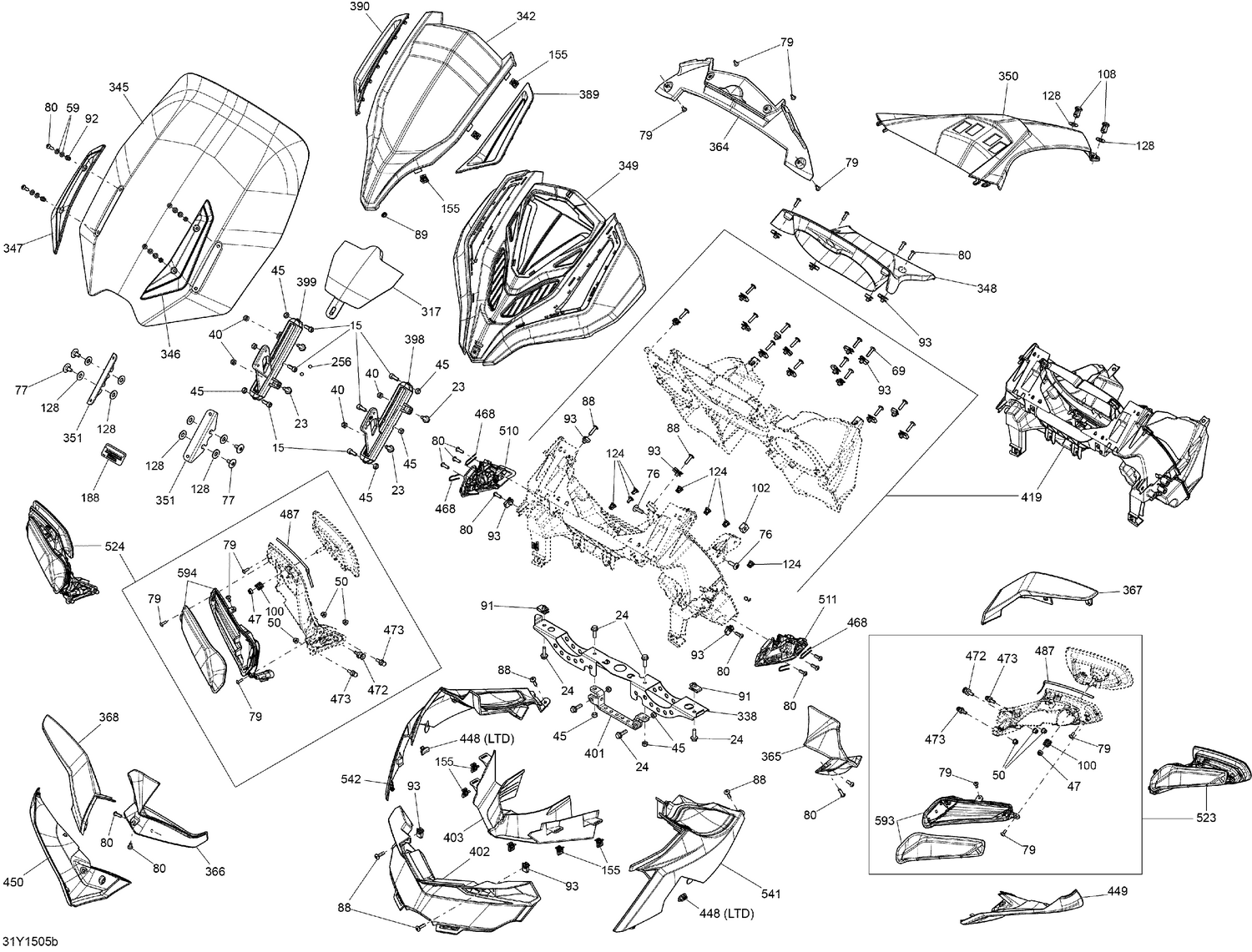

| Ref | Part Number | Description |
|---|
| 15 |
205061644 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 24 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 40 |
232061414 |
Hex. Nut M6 |
| 45 |
232561434 |
Elastic Stop Nut M6 |
| 47 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 50 |
233251434 |
Flange Elastic Nut M5 |
| 69 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 76 |
250000488 |
Torx Truss Screw M6 X 20 |
| 77 |
250000551 |
TORX SCREW M6 X 13.5 - Call your local BRP dealership |
| 79 |
250000577 |
Torx Truss Screw K40 X 12 |
| 80 |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 88 |
250000724 |
Torx Screw M5 X 20 |
| 89 |
250100034 |
Push Nut |
| 91 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 92 |
250100152 |
Cap Nut M5 |
| 93 |
250100176 |
Panel Nut M5 X 0.8 |
| 100 |
269500453 |
Mirror Spring |
| 108 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 124 |
293750044 |
Tie Rap Mount |
| 128 |
293830164 |
RUBBER WASHER - Call your local BRP dealership |
| 155 |
517302785 |
Edge Clip |
| 188 |
704903339 |
CAUTION DECAL, WINDSHIELD - Call your local BRP dealership |
| 256 |
705001705 |
Ball |
| 317 |
705009360 |
Guide Chart |
| 338 |
705004950 |
CROSS SUPPORT CONSOLE - Call your local BRP dealership |
| 342 |
705004954 |
Upper Console |
| 345 |
705004960 |
Windshield |
| 346 |
705004961 |
LH WINDSHIELD MOULDING - Call your local BRP dealership |
| 347 |
705004962 |
RH Windshield Moulding |
| 348 |
705007460 |
Moulding Dash Board |
| 349 |
705006842 |
Carbon Black Front Console |
| 350 |
705004971 |
CENTER PANNEL - Call your local BRP dealership |
| 351 |
705004982 |
Windshield Support |
| 364 |
705005320 |
UPPER CONSOLE MOULDING - Call your local BRP dealership |
| 365 |
705005323 |
LH Upper Air Deflector |
| 366 |
705005324 |
RH Upper Air Deflector |
| 367 |
705005325 |
Mirror Sheel This part replaces 705006914. |
| 368 |
705005326 |
Mirror Sheel This part replaces 705006915. |
| 389 |
705005411 |
LH SLIDER PROTECTOR - Call your local BRP dealership |
| 390 |
705005412 |
RH SLIDER PROTECTOR - Call your local BRP dealership |
| 398 |
705005460 |
LH RAIL ASS'Y - Call your local BRP dealership |
| 399 |
705005461 |
RH Rail Ass'y |
| 401 |
705005476 |
CONSOLE SUPPORT BRACKET - Call your local BRP dealership |
| 402 |
705005582 |
Headlamp Moulding |
| 403 |
705005586 |
Center Air Intake |
| 419 |
705006016 |
CONSOLE SUPPORT ASS'Y - Call your local BRP dealership |
| 448 |
XXX |
Not Available As Spare Parts |
| 449 |
705006479 |
LH LOWER SHELL - Call your local BRP dealership |
| 450 |
705006480 |
RH LOWER SHELL - Call your local BRP dealership |
| 468 |
705006661 |
Spring |
| 472 |
705006733 |
Flat Head Stud M5 |
| 473 |
708400538 |
Stud Ball M5 This part replaces 705006734. |
| 487 |
296000392 |
Seal |
| 510 |
705008210 |
RH Mirror Plate Support Ass'y |
| 511 |
705008211 |
LH Mirror Plate Support Ass'y |
| 523 |
705008659 |
LH MIRROR ASS'Y - Call your local BRP dealership |
| 524 |
705008660 |
RH MIRROR ASS'Y - Call your local BRP dealership |
| 541 |
705009560 |
DASHBOARD - Call your local BRP dealership |
| 542 |
705009561 |
DASHBOARD - Call your local BRP dealership |
| 593 |
710004029 |
LH Flasher |
