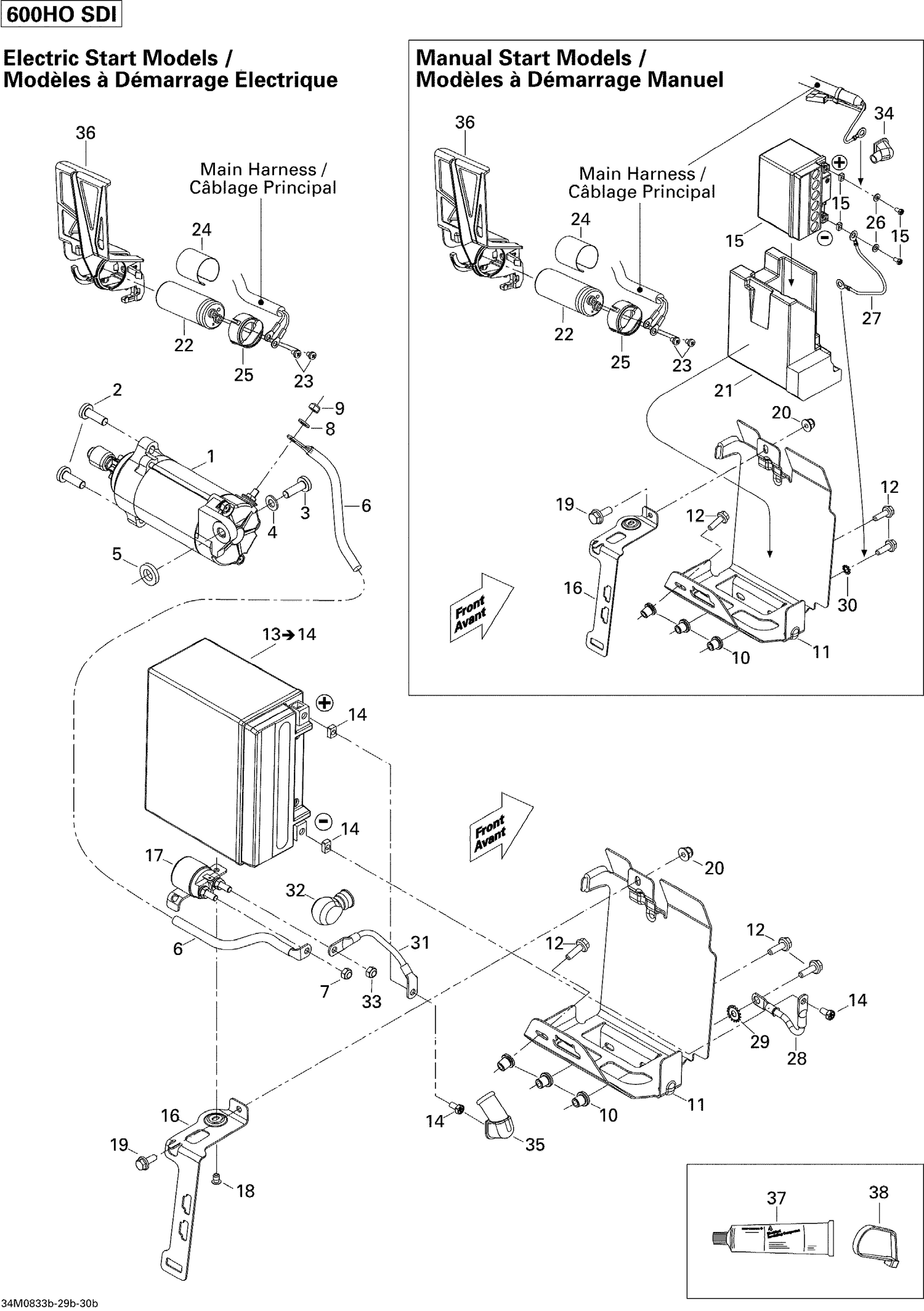

| Ref | Part Number | Description |
|---|
| 10 |
293450275 |
Insert This part replaces 415107300. |
| 11 |
515176886 |
BATTERY SUPPORT ASS'Y - Call your local BRP dealership This part replaces 515176601. |
| 12 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 16 |
515177008 |
BATTERY STRIP - Call your local BRP dealership This part replaces 515176368. |
| 19 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
515176387 |
CAPACITOR - Call your local BRP dealership |
| 23 |
515176542 |
SCREW 10-32 X 5/16 - Call your local BRP dealership |
| 24 |
516002976 |
CAPACITOR DECAL - Call your local BRP dealership |
| 25 |
515176211 |
CAP - Call your local BRP dealership |
| 36 |
515176513 |
BRACKET - Call your local BRP dealership |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
293750001 |
Tie Wrap 94 mm |
| 38 |
293750002 |
Tie Wrap 142 mm |
| 38 |
414115200 |
Tie-Rap 180 mm |
