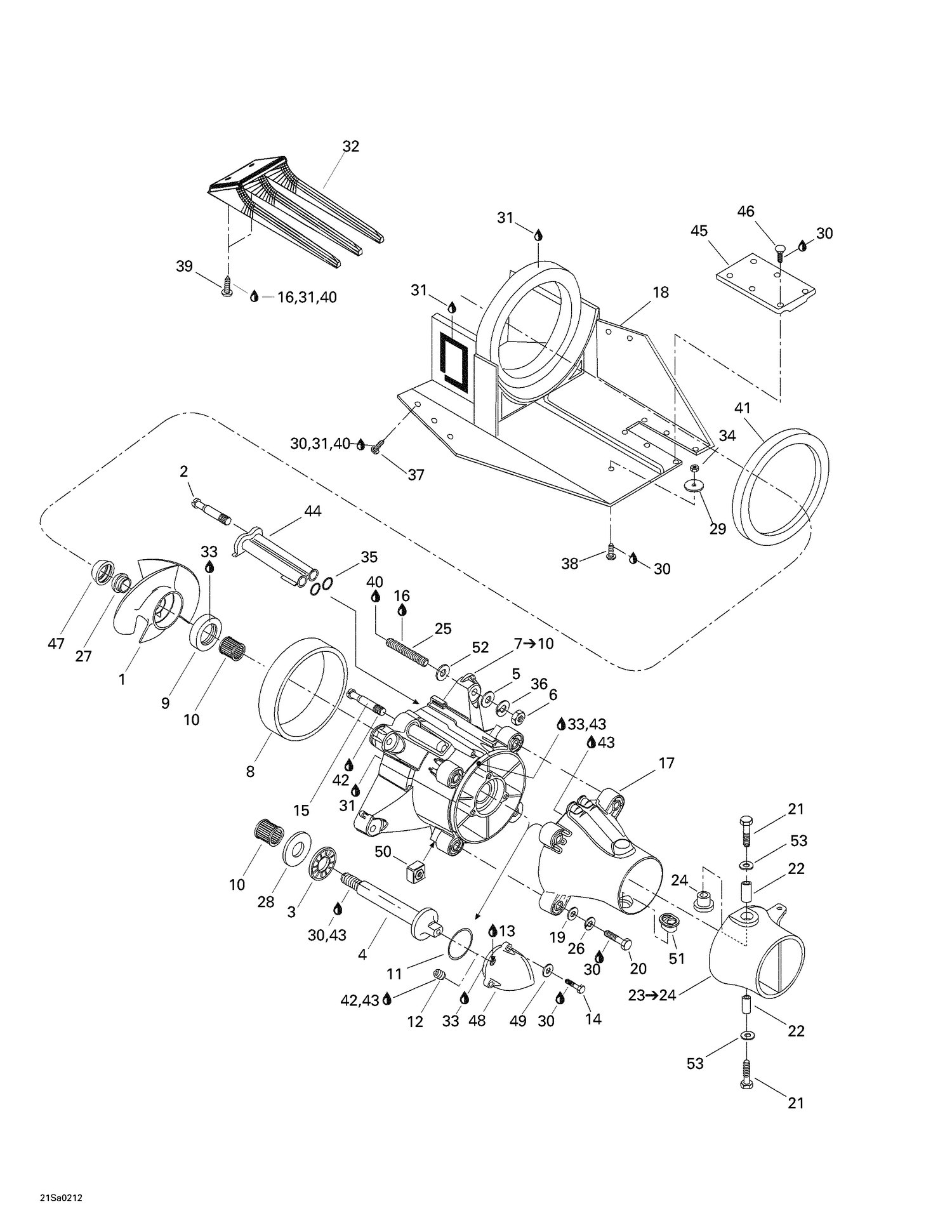

05- Propulsion System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271000470 | Stainless Steel Impeller Ass'y |
| 2 | 293700017 | BAILER FITTING - Call your local BRP dealership |
| 3 | 293350019 | BEARING THRUST - Call your local BRP dealership |
| 4 | 271000291 | IMPELLER SHAFT - Call your local BRP dealership |
| 5 | 234001600 | Flat Washer 10 mm, Stainless |
| 6 | 232001600 | HEX. NUT M10 - Call your local BRP dealership |
| 8 | 271000290 | Wear Ring |
| 9 | 267000094 | Oil Seal This part replaces 293200065. |
| 10 | 293350017 | Needle Bearing |
| 11 | 293300011 | O-Ring |
| 12 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 13 | 779221 | JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 14 | 207152060 | Hex. Screw M5 X 20 |
| 15 | 293700019 | FITTING-PUMP - Call your local BRP dealership |
| 16 | 293800005 | Loctite 271, 10 ml |
| 17 | 271000510 | VENTURI ASS'Y - Call your local BRP dealership |
| 18 | 271000407190 | Shoe |
| 19 | 234082600 | Flat Washer 8 mm, Stainless |
| 20 | 207086060 | HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 21 | 211000047 | SCREW-SPECIAL M8 - Call your local BRP dealership |
| 22 | 204160153 | Venturi Spacer |
| 24 | 293900001 | Venturi Bushing |
| 25 | 211300015 | STUD-M10 - Call your local BRP dealership |
| 26 | 234181601 | Lock Washer 8 mm, Stainless |
| 27 | 271000516 | Impeller Boot |
| 28 | 293350020 | THRUST WASHER - Call your local BRP dealership |
| 29 | 271000477 | Anode-Zinc |
| 30 | 293800060 | Loctite 243, 10 ml |
| 31 | 219701421 | Instant Gasket This part replaces 293800088. |
| 32 | 271000537 | Inlet Grate |
| 34 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 35 | 293300013 | O-Ring |
| 36 | 234101601 | Helicoidal Lock Washer M10 |
| 37 | 208563060 | OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 38 | 211000084 | Screw 1/4-20 x 5/8 |
| 39 | 208562560 | Phillips Screw M6 X 25 |
| 40 | 296000309 | Silicone Sealant 51388, 300 ml |
| 41 | 293200024 | SEAL NEOPRENE - Call your local BRP dealership |
| 42 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 43 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 44 | 271000366 | WATER OUTLET - Call your local BRP dealership |
| 45 | 291000446 | Ride Shoe Cap |
| 46 | 208551060 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 47 | 271000517 | Impeller Ring |
| 48 | 271000553 | Impeller Cover |
| 49 | 234051600 | Flat Washer M5, Stainless |
| 50 | 211100033 | Square Nut M8 |
| 51 | 293900010 | Plastic Bushing |
| 52 | 204120128 | Shim 1.3 mm |
