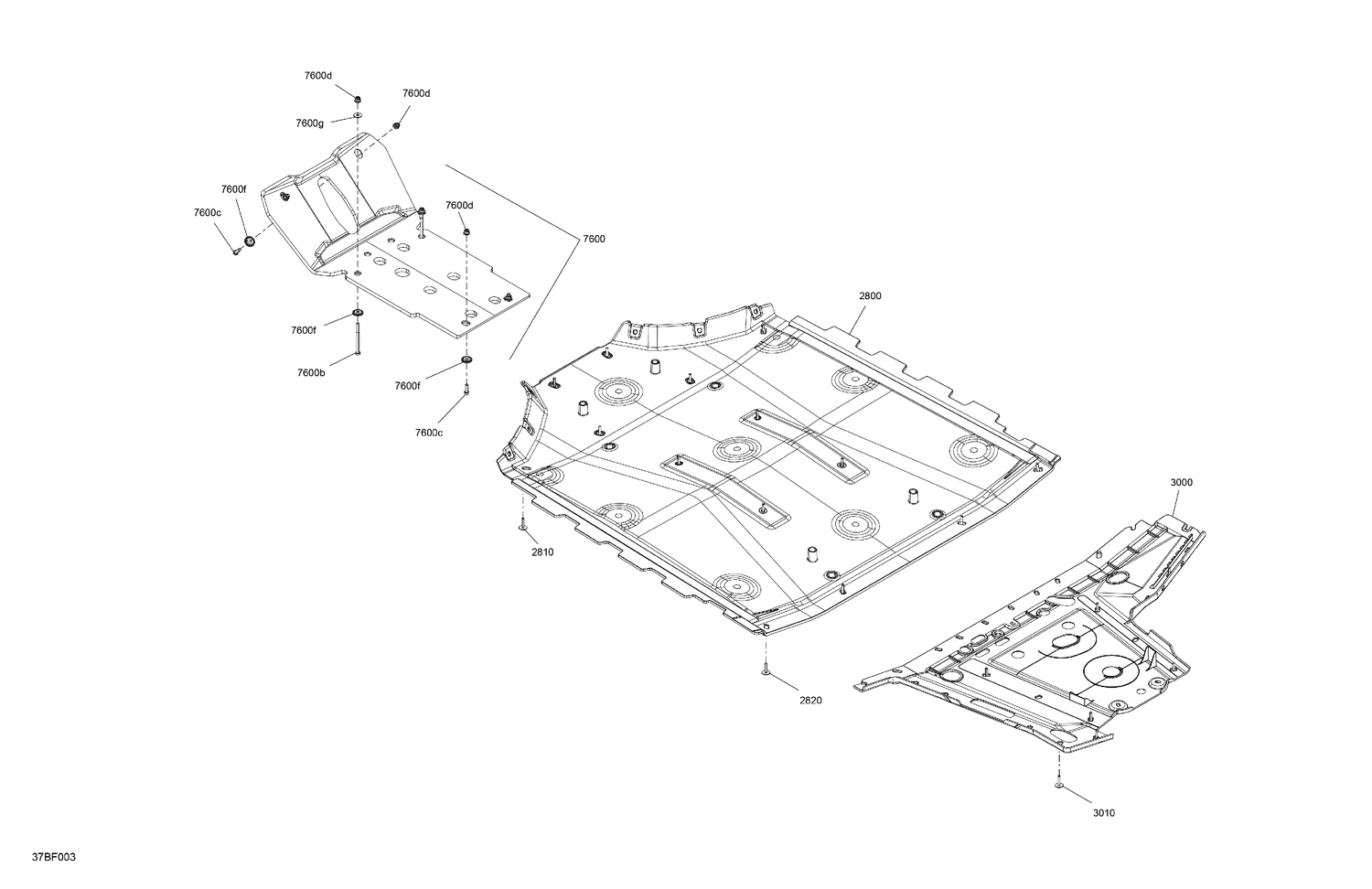

07- Body - Skid Plate
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2800 | 705020373 | Front Skid Plate |
| 2810 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 2820 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 3000 | 705014697 | Rear Skid Plate |
| 3010 | 250001348 | Screw Hex Sems Threadlock M6 X 30 |
| 7600b | 207068044 | Hex. Screw M6 X 80 |
| 7600c | 207162044 | Hex. Screw M6 X 20 |
| 7600d | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7600f | 503191820 | Wheel Cup M6 |
