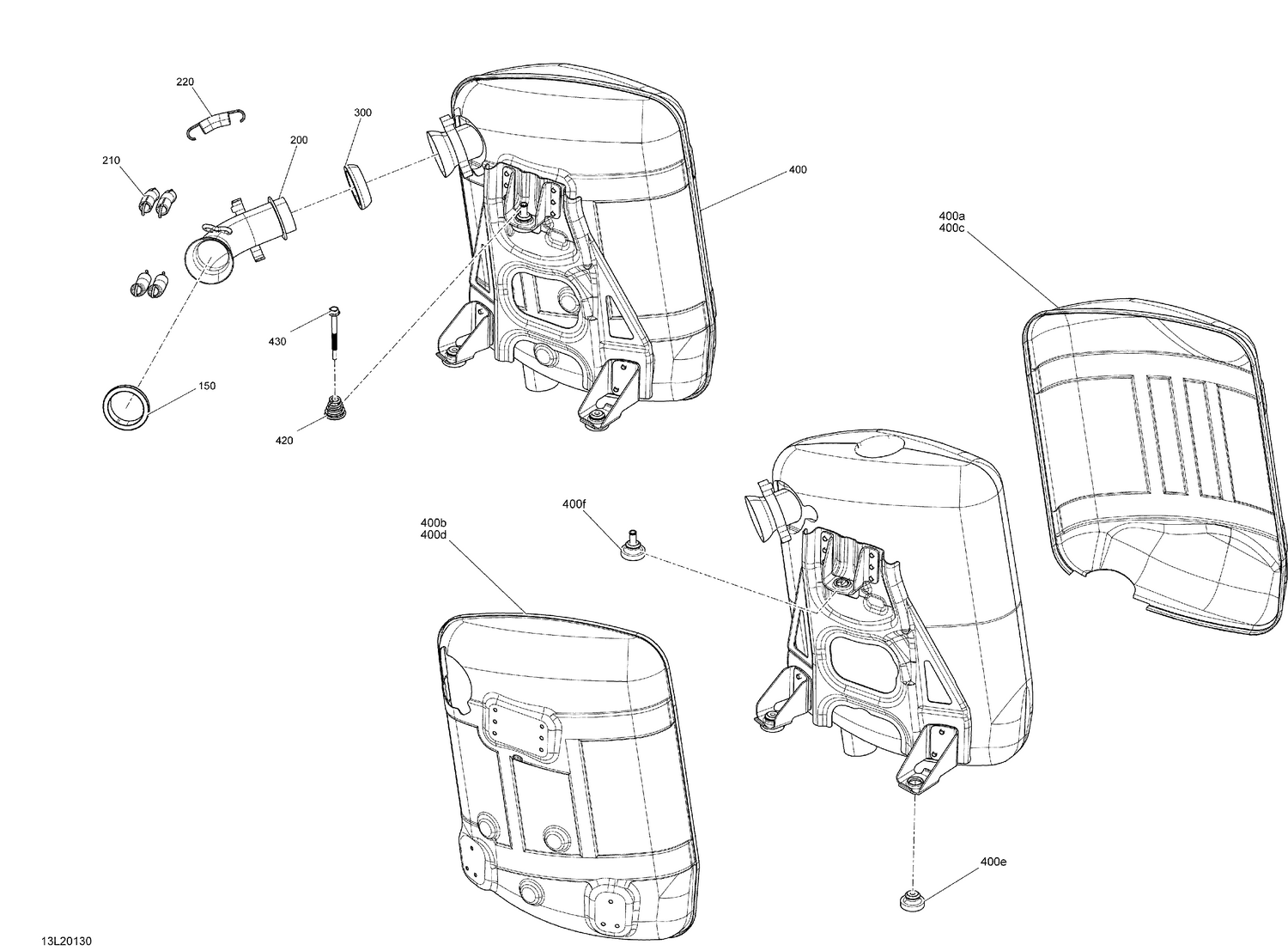

02- Engine - Exhaust
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 707601033 | Exhaust Gasket |
| 200 | 514055475 | Pipe |
| 210 | 707601834 | Spring |
| 220 | 514055198 | Spring |
| 300 | 707601033 | Exhaust Gasket |
| 400a | 514055981 | RH Deflector This part replaces 514055793. |
| 400b | 514055482 | LH Deflector |
| 400c | 514055711 | RH Wool |
| 400d | 514055712 | LH Wool |
| 400e | 514055203 | Stopper |
| 400f | 514056138 | Stopper Ass'y This part replaces 514055422. |
| 420 | 514055282 | Spring |
